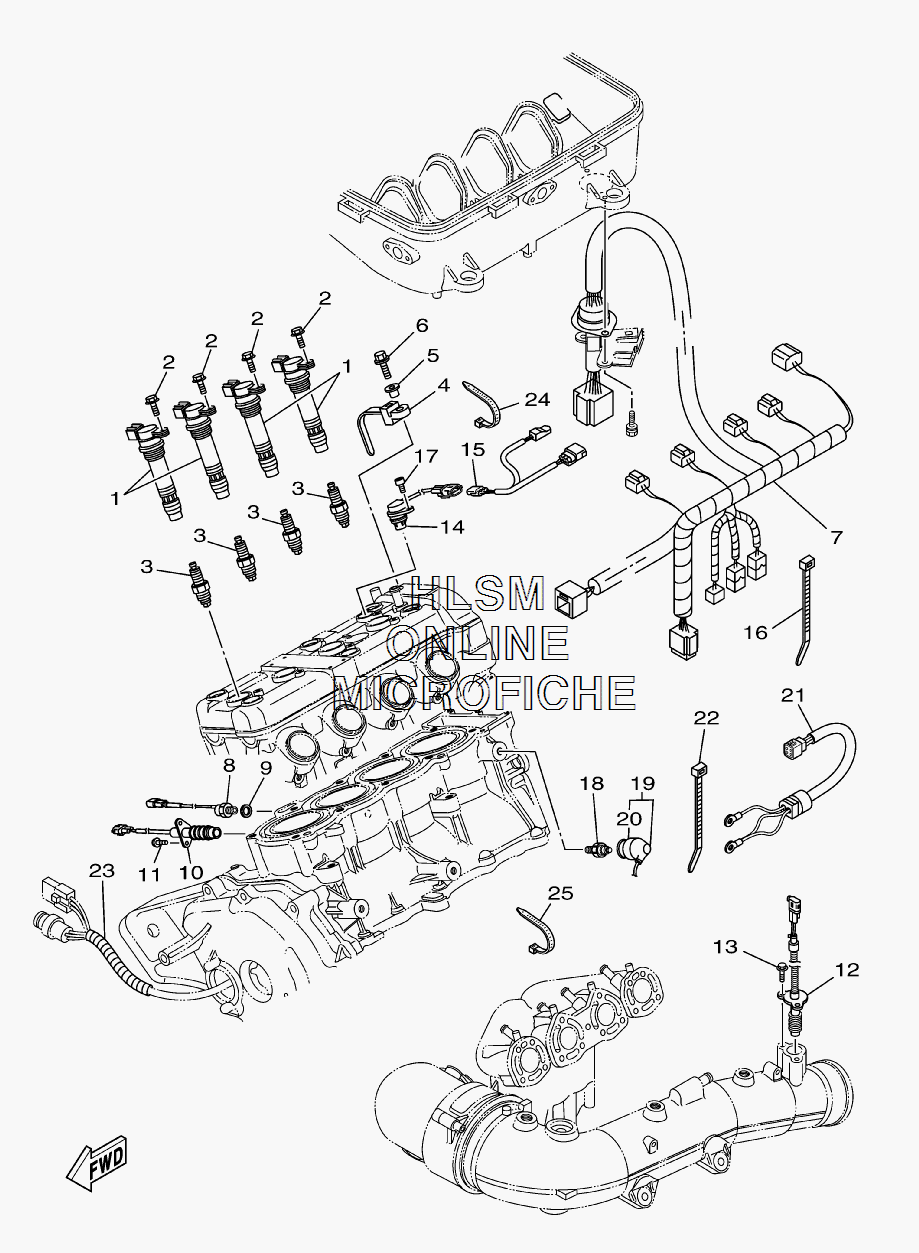

ELECTRICAL 2 для Yamaha FX CRUISER - 2008 года выпуска
-
№АртикулНазвание
-
16D3-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
295814-06016-00 BOLT, FLANGEBOLT, FLANGE
-
394702-00409-00 PLUG, SPARK (NGK CR9EB)PLUG, SPARK (NGK CR9EB)
-
490465-12M53-00 CLAMPCLAMP
-
590387-06M05-00 COLLARCOLLAR
-
695814-06016-00 BOLT, FLANGEBOLT, FLANGE
-
760E-8259M-30-00 WIRE HARNESS ASSY 2WIRE HARNESS ASSY 2
-
860E-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
992990-10600-00 WASHER, PLATEWASHER, PLATE
-
1060E-82560-A1-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1197595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1260E-82560-01-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
1397595-06416-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1460E-85896-00-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
1560E-81325-10-00 CONDENSER 1CONDENSER 1
-
1690465-13M18-00 CLAMPCLAMP
-
1791380-06016-00 BOLTBOLT
-
1868V-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
1960E-81315-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
2060E-82532-00-00 ...CAP...CAP
-
216AA-82531-00-00 WIRE, LEADWIRE, LEAD
-
2290465-13M18-00 CLAMPCLAMP
-
2390447-19004-00 HOSE, WITH SPRING (L=130)HOSE, WITH SPRING (L=130)
-
2490465-13M11-00 CLAMPCLAMP
-
2590465-13M11-00 CLAMPCLAMP
