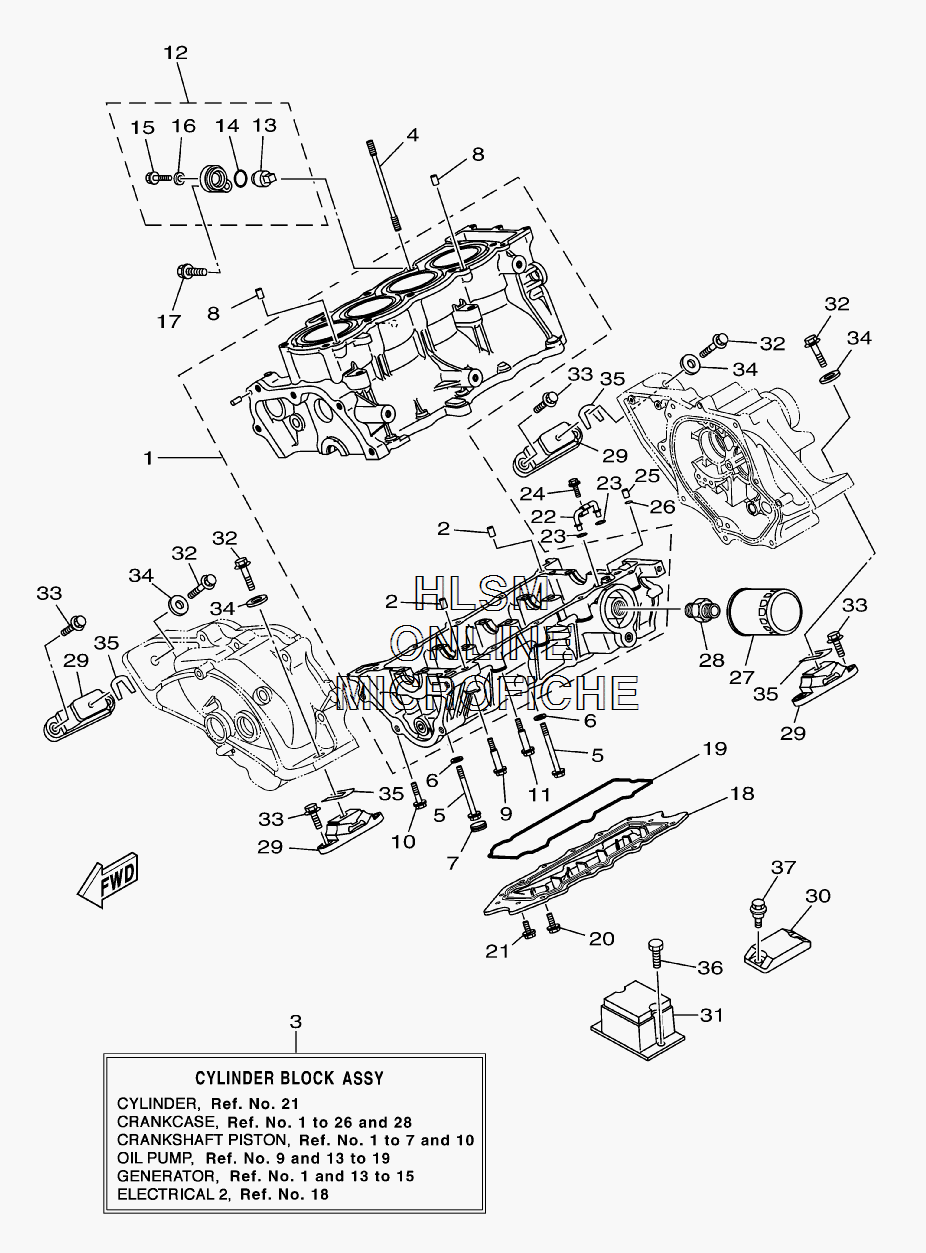

CRANKCASE для Yamaha FX CRUISER - 2008 года выпуска`
-
№АртикулНазвание
-
160E-15100-01-8P CRANKCASE ASSYCRANKCASE ASSY
-
299530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
360E-W009B-01-8P CYLINDER BLOCK ASSYCYLINDER BLOCK ASSY
-
490116-10619-00 BOLT, STUDBOLT, STUD
-
590105-093A5-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
690201-096J9-00 WASHER, PLATEWASHER, PLATE
-
760E-11328-00-00 GROMMET, ANODEGROMMET, ANODE
-
899530-10014-00 PIN, DOWELPIN, DOWEL
-
990109-06051-00 BOLTBOLT
-
1090105-06033-00 BOLT, FLANGEBOLT, FLANGE
-
1190105-06M17-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1269J-11301-00-00 ANODE COVER ASSYANODE COVER ASSY
-
1367F-11325-01-00 ...ANODE...ANODE
-
1467F-11328-00-00 ...GROMMET, ANODE...GROMMET, ANODE
-
1590105-06M07-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1690430-06M03-00 ...GASKET...GASKET
-
1797595-08540-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1860E-1310A-00-94 PAN, OILPAN, OIL
-
1960E-13557-00-00 GASKETGASKET
-
2097513-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2197513-06525-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2260E-13161-00-00 PIPE, DELIVERY 1PIPE, DELIVERY 1
-
2393210-06667-00 O-RINGO-RING
-
2495027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2599530-08012-00 PIN, DOWELPIN, DOWEL
-
2693210-08001-00 O-RINGO-RING
-
275GH-13440-20-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
2890401-20145-00 BOLT, UNIONBOLT, UNION
-
2967X-44517-10-94 MOUNT RUBBERMOUNT RUBBER
-
3060E-G4574-00-94 STOPPER, LOWER MOUNT RUBBERSTOPPER, LOWER MOUNT RUBBER
-
3166V-44532-00-94 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
3290119-08835-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3390119-08823-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3490201-099U3-00 WASHER, PLATEWASHER, PLATE
-
35EU0-U7354-00-01 SHIM (T=0.1) (OPT)SHIM (T=0.1) (OPT)
-
35EU0-U7354-00-03 SHIM (T=0.3) (OPT)SHIM (T=0.3) (OPT)
-
35EU0-U7354-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
35EU0-U7354-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
35EU0-U7354-00-20 SHIM (T=2.0) (OPT)SHIM (T=2.0) (OPT)
-
3690101-06917-00 BOLTBOLT
-
3790109-06847-00 BOLTBOLT
Все узлы модели:
- AIR SILENCER W/ INTAKE
- BILGE PUMP
- BUMBER W/ GUNWALE MAT
- CONTROL CABLES
- • CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT
- SIDE COVERS
- STARTING MOTOR
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
