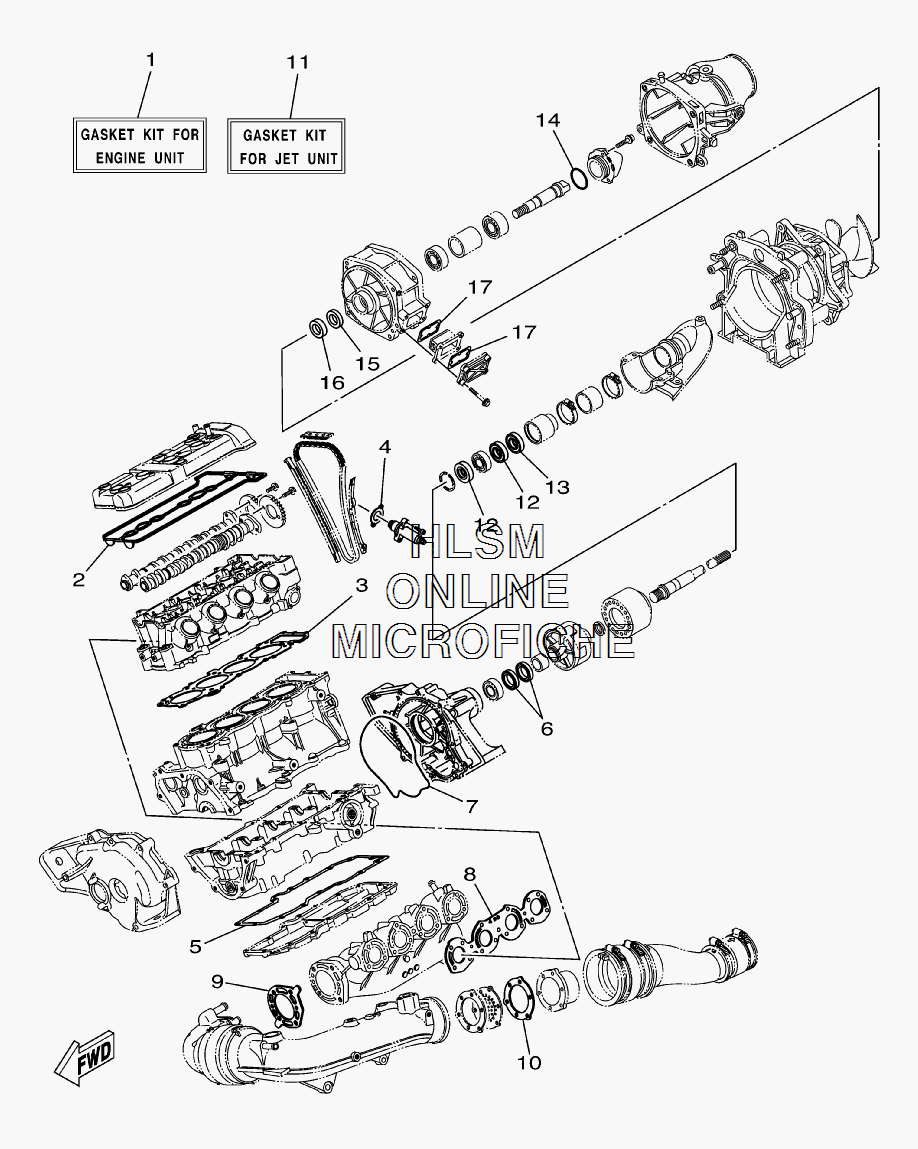

GASKET KIT - ENGINE AND JET UNIT для Yamaha VX DELUXE 3-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
16D3-W0001-00-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
260E-11193-01-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
36D3-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
44FM-12213-00-00 ...GASKET, TENSIONER CASE...GASKET, TENSIONER CASE
-
56B6-13557-00-00 ...GASKET...GASKET
-
693101-35004-00 ...OIL SEAL...OIL SEAL
-
76B6-13475-01-00 ...GASKET...GASKET
-
86D3-14613-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
96D3-14739-00-00 ...GASKET, MUFFLER DAMPER 1...GASKET, MUFFLER DAMPER 1
-
1060E-14623-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
116D3-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
1293101-25M55-00 ...OIL SEAL, S-TYPE...OIL SEAL, S-TYPE
-
1393101-25M56-00 ...OIL SEAL, S-TYPE...OIL SEAL, S-TYPE
-
1493210-464A3-00 ...O-RING...O-RING
-
1593101-21002-00 ...OIL SEAL...OIL SEAL
-
1693101-21001-00 ...OIL SEAL...OIL SEAL
-
1766V-42414-00-00 ...O-RING...O-RING
