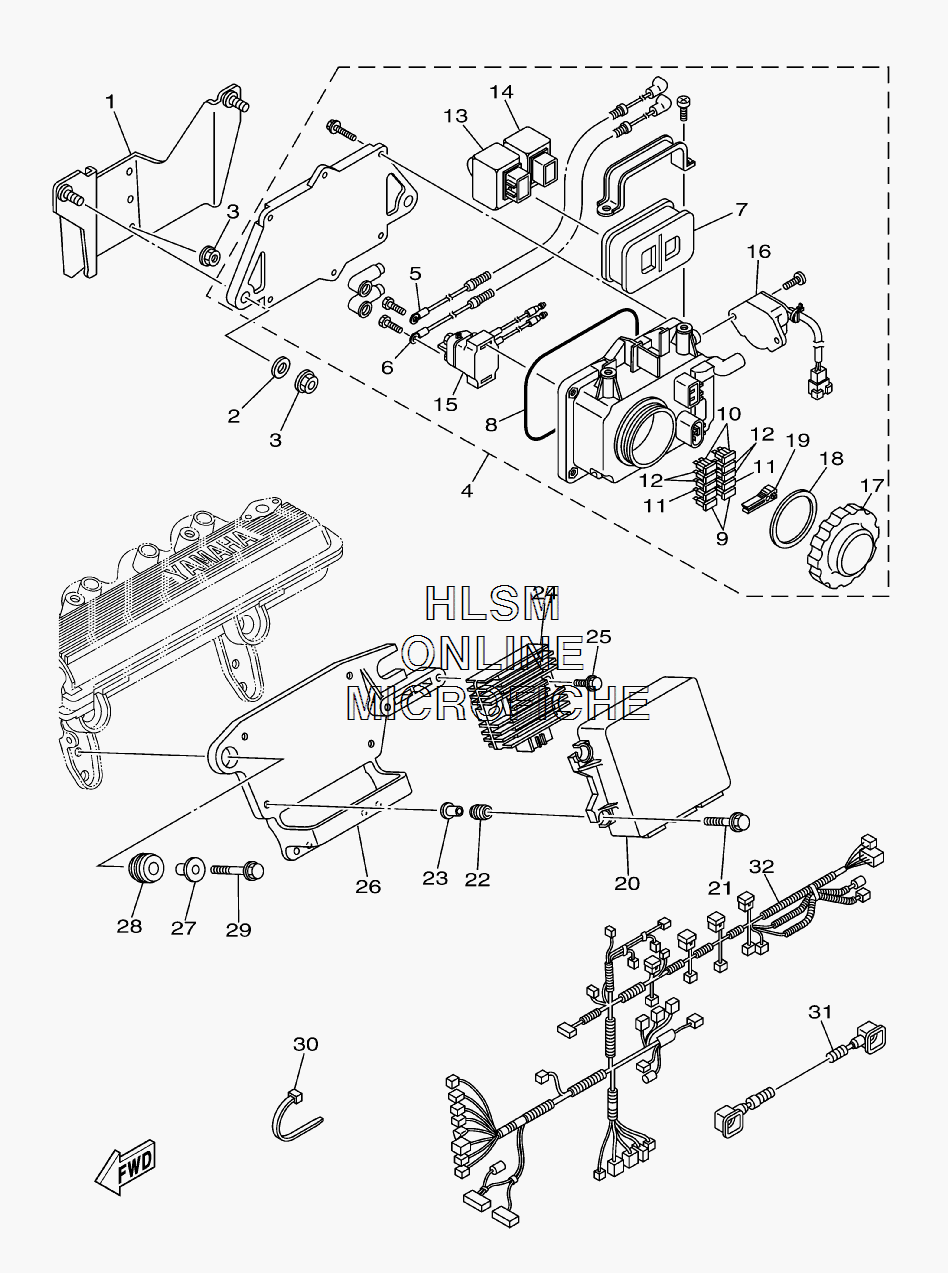

ELECTRICAL 1 для Yamaha VX DELUXE 3-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
1F1K-U815D-00-00 BRACKET, ELECTRIC BOXBRACKET, ELECTRIC BOX
-
290201-099U3-00 WASHER, PLATEWASHER, PLATE
-
39572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
46D3-82170-00-00 FUSE BOX ASSYFUSE BOX ASSY
-
56D3-82115-00-00 ...WIRE, PLUS LEAD...WIRE, PLUS LEAD
-
66D3-82117-00-00 ...WIRE, LEAD...WIRE, LEAD
-
76D3-82157-00-00 ...DAMPER...DAMPER
-
86D3-81921-00-00 ...GASKET, TERMINAL...GASKET, TERMINAL
-
967F-82151-00-00 ...FUSE (20A)...FUSE (20A)
-
1067F-82151-10-00 ...FUSE (30A)...FUSE (30A)
-
1167F-82151-30-00 ...FUSE (3A)...FUSE (3A)
-
1267F-82151-40-00 ...FUSE (10A)...FUSE (10A)
-
1360E-81950-00-00 ...RELAY ASSY...RELAY ASSY
-
1468V-81950-00-00 ...RELAY ASSY...RELAY ASSY
-
156B6-81940-00-00 ...STARTER RELAY ASSY...STARTER RELAY ASSY
-
1660E-8259E-00-00 ...SWITCH ASSY...SWITCH ASSY
-
1766V-8132W-00-00 ...CAP...CAP
-
1866V-81844-00-00 ...GASKET...GASKET
-
1967F-2812A-00-00 ...PULLER, FUSE...PULLER, FUSE
-
206D3-8591A-A0-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
2190119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
226A0-82317-00-00 DAMPER, IGNITION COILDAMPER, IGNITION COIL
-
2390387-06119-00 COLLARCOLLAR
-
246D3-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
2590119-06M35-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
266D3-85991-01-00 BRACKET, UNITBRACKET, UNIT
-
2790387-08M37-00 COLLARCOLLAR
-
2890480-22M15-00 GROMMETGROMMET
-
2990119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090464-35132-00 CLAMPCLAMP
-
316D3-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
326D3-8259L-A2-00 WIRE HARNESS ASSY 1WIRE HARNESS ASSY 1
