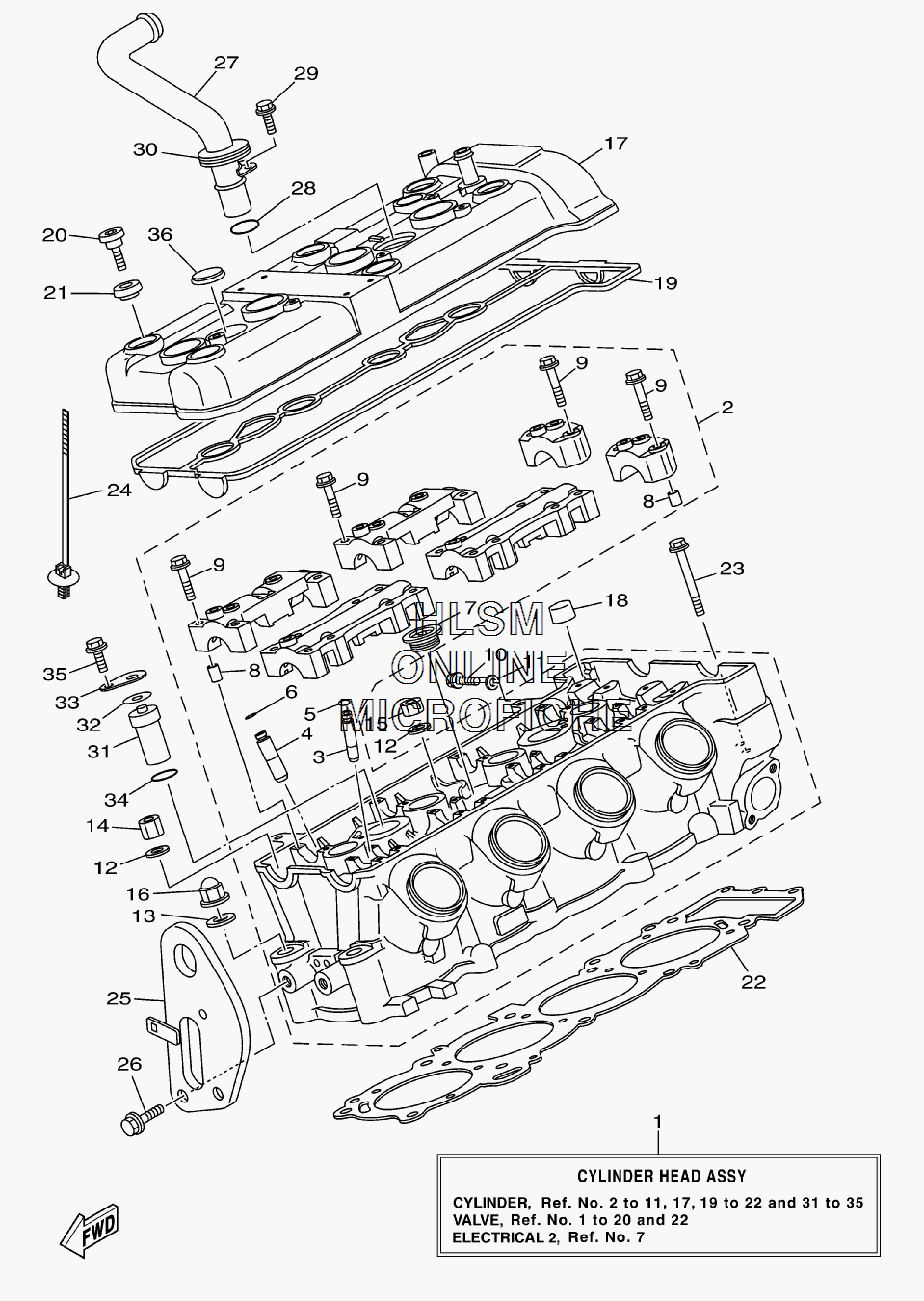

CYLINDER W/ HEAD для Yamaha VX DELUXE 3-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
16D3-W009A-00-94 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
26D3-11102-00-94 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
33TJ-11133-10-00 ...GDE,INTK VLV 1 O/S...GDE,INTK VLV 1 O/S
-
41WG-11133-11-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
593440-07149-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
693440-10153-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
790340-27001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
891808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
990105-06026-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
1095023-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1190430-06014-00 GASKETGASKET
-
1290201-10013-00 WASHER, PLATEWASHER, PLATE
-
1390201-10019-00 WASHER, PLATEWASHER, PLATE
-
1490179-10006-00 NUTNUT
-
1590179-10414-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1690176-10001-00 NUT, CROWNNUT, CROWN
-
176D3-11191-01-94 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
186D3-1118A-00-00 COVERCOVER
-
1960E-11193-01-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
2090109-066F0-00 BOLTBOLT
-
214KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
226D3-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2397513-06555-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2490464-31001-00 CLAMPCLAMP
-
256D3-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
2697513-08520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
276D3-12482-00-00 PIPE 2PIPE 2
-
2893210-18417-00 O-RINGO-RING
-
2991317-06016-00 BOLTBOLT
-
3060E-12494-00-00 SEAL, PIPE 1SEAL, PIPE 1
-
3160E-12483-10-00 PIPE 3PIPE 3
-
3260E-12474-00-00 GASKET 1GASKET 1
-
3360E-12537-00-00 PLATE 2PLATE 2
-
3493210-18417-00 O-RINGO-RING
-
3591317-06016-00 BOLTBOLT
-
3660E-12495-00-00 SEAL, PIPE 2SEAL, PIPE 2
