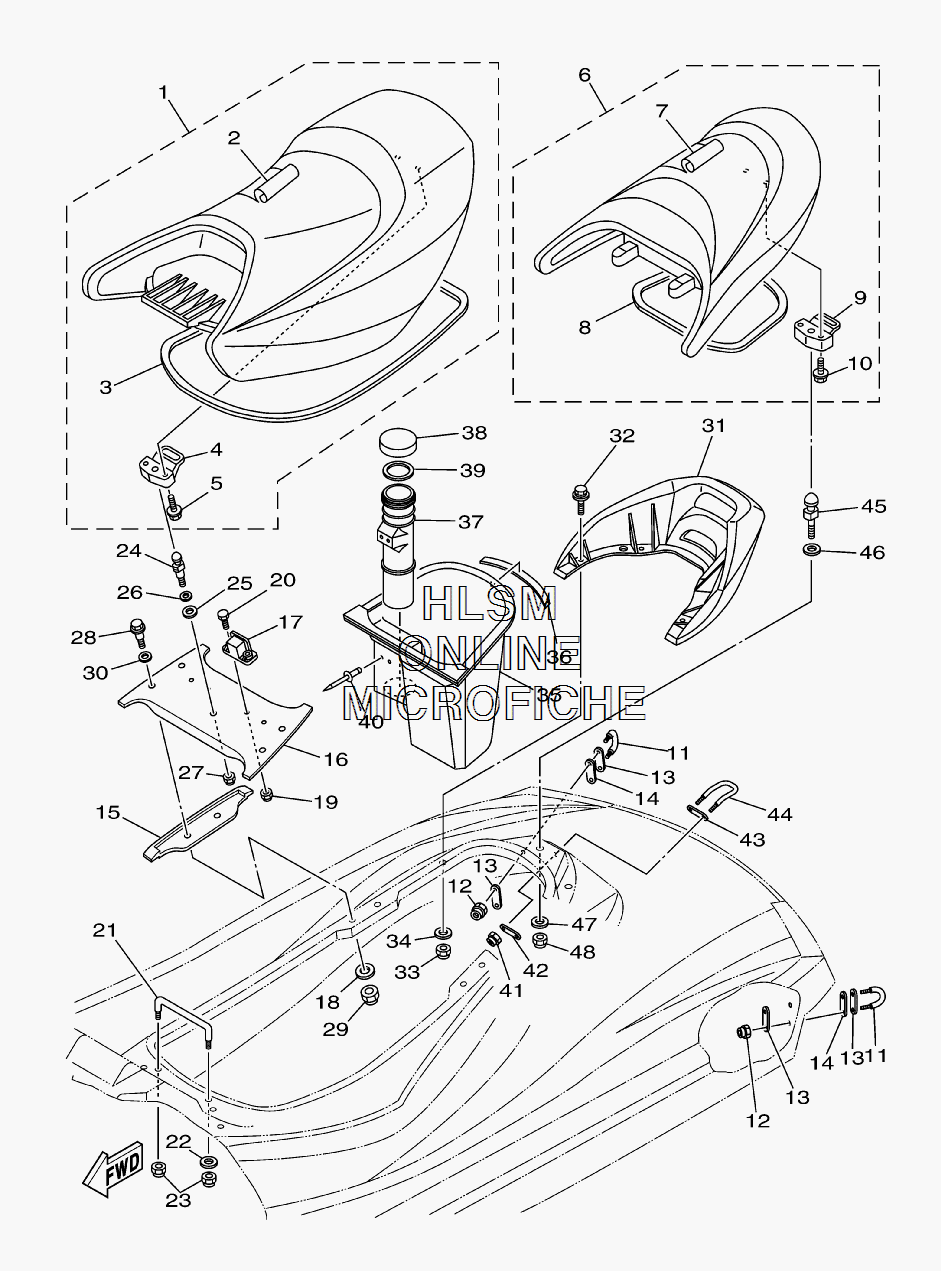

SEAT для Yamaha FX CRUISER 3-PASS - 2007 года выпуска
-
№АртикулНазвание
-
1F1S-U371A-70-00 DOUBLE SEAT ASSY (SILVER)DOUBLE SEAT ASSY (SILVER)
-
2F1S-U371B-70-00 ...COVER, SEAT 1 (SILVER)...COVER, SEAT 1 (SILVER)
-
3F1B-U2664-00-00 ...PACKING...PACKING
-
4F1B-U3850-01-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
590119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
6F1S-U372A-30-00 SINGLE SEAT ASSY (SILVER)SINGLE SEAT ASSY (SILVER)
-
7F1S-U372B-30-00 ...COVER, SEAT (SILVER)...COVER, SEAT (SILVER)
-
8F1B-U266D-00-00 ...PACKING 5...PACKING 5
-
9F1B-U3850-01-00 ...SEAT LOCK ASSY...SEAT LOCK ASSY
-
1090119-069UP-00 ...BOLT, WITH WASHER...BOLT, WITH WASHER
-
11F1K-61628-00-00 STERN EYESTERN EYE
-
129572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
13GP7-U4953-10-00 PLATE APLATE A
-
14F1B-U1653-01-00 PACKINGPACKING
-
15F1X-U1653-00-00 PACKINGPACKING
-
16F1X-U8952-01-00 BEAM, DECK 1BEAM, DECK 1
-
17GU2-6378D-02-00 STAY, SEAT 2STAY, SEAT 2
-
189299R-08200-00 WASHERWASHER
-
199572R-06300-00 NUT, NYLONNUT, NYLON
-
2090101-069U0-00 BOLTBOLT
-
21F0X-6378C-00-00 STAY, SEAT 1STAY, SEAT 1
-
2290201-099U3-00 WASHER, PLATEWASHER, PLATE
-
239572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
24F1B-U3774-00-00 PINPIN
-
25F0X-6375E-00-00 PACKING 1PACKING 1
-
2692990-12200-00 WASHER, PLAINWASHER, PLAIN
-
279572R-10300-00 NUT, FLANGENUT, FLANGE
-
28F1B-U2624-00-00 BOLTBOLT
-
299572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
309299R-10200-00 WASHERWASHER
-
31F1S-U271B-01-00 GRIP, HAND (BLACK)GRIP, HAND (BLACK)
-
3290119-08942-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
339572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
349299R-08200-00 WASHERWASHER
-
35F1B-U4742-01-00 LOCKER, UNDER 2LOCKER, UNDER 2
-
36F0X-U266E-01-00 PACKING, 6PACKING, 6
-
37F0X-U5983-01-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
38EW2-U5912-01-00 CAP, CASECAP, CASE
-
39EW2-U5913-01-00 PACKING, CASEPACKING, CASE
-
4090267-489UP-00 RIVET, BLINDRIVET, BLIND
-
419572R-08300-00 NUT SELF-LOCKINGNUT SELF-LOCKING
-
42GP7-U4953-10-00 PLATE APLATE A
-
43GP7-U4953-10-00 PLATE APLATE A
-
44F1B-U1629-00-00 SKI TOWSSKI TOWS
-
45GH1-U3774-00-00 PINPIN
-
4690201-109U6-00 WASHER, PLATEWASHER, PLATE
-
479299R-10200-00 WASHERWASHER
-
489572R-10300-00 NUT, FLANGENUT, FLANGE
