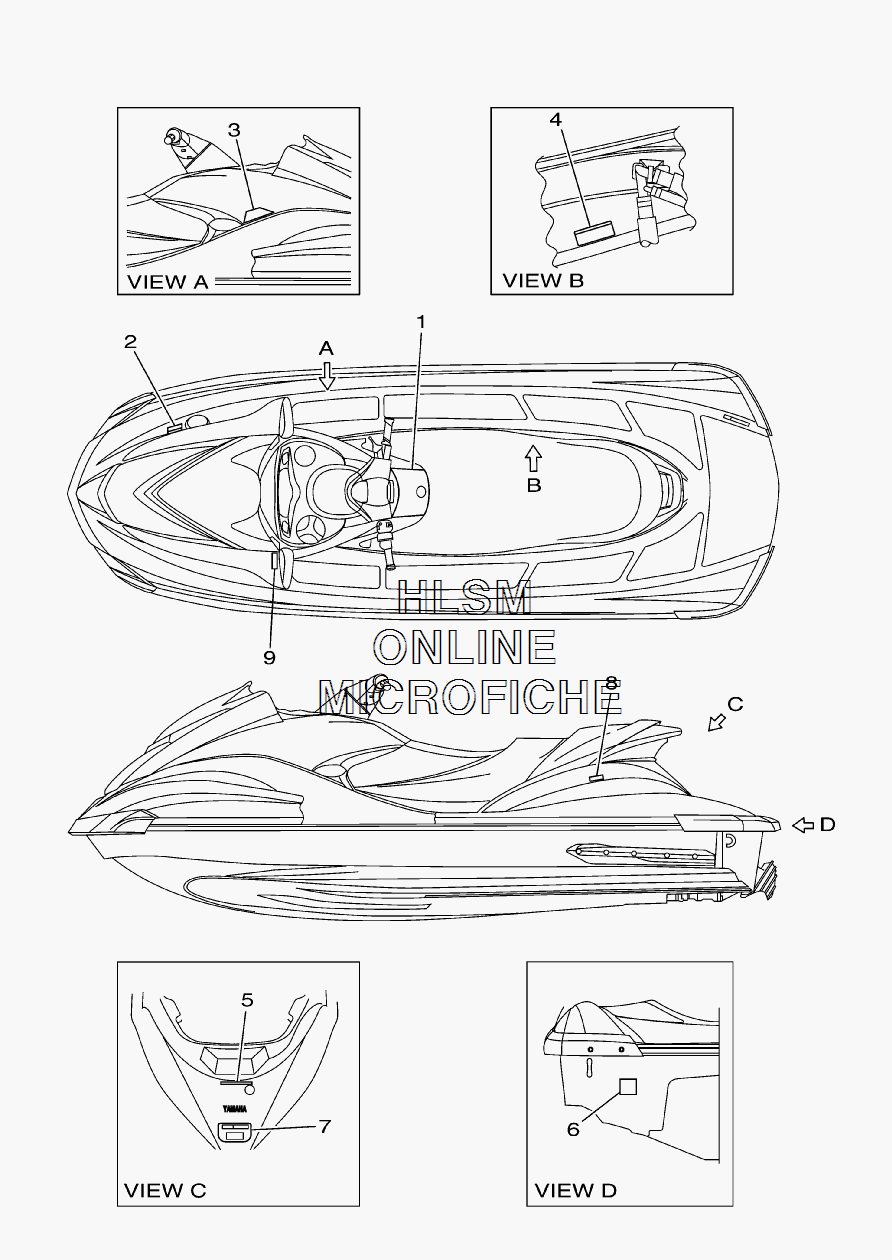

GRAPHICS - WARNING / CAUTION для Yamaha FX CRUISER 3-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
1F1X-U41B1-00-00 LABEL, WARNING JDC 1LABEL, WARNING JDC 1
-
2F1B-U415B-02-00 LABEL, WARNING (FUEL)LABEL, WARNING (FUEL)
-
3F0V-U41D5-21-00 LABEL, WARNING SHIFT LEVERLABEL, WARNING SHIFT LEVER
-
4F0V-U41DB-02-00 LABEL, WARNING BATTERYLABEL, WARNING BATTERY
-
5F1B-U41F5-01-00 LABEL, FIRE EXTINGUISHER 1LABEL, FIRE EXTINGUISHER 1
-
6F1G-U418F-00-00 LABEL, RIGHTINGLABEL, RIGHTING
-
7F1B-U41E1-21-00 LABEL, SET 1LABEL, SET 1
-
8F0P-U41G1-01-00 LABEL, CAPACITYLABEL, CAPACITY
-
9F0X-U41FD-01-00 LABEL, VISORLABEL, VISOR
Все узлы модели:
- AIR SILENCER W/ INTAKE
- BILGE PUMP
- BUMBER W/ GUNWALE MAT
- CONTROL CABLES
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER W/ HEAD
- ELECTRICAL 1
- ELECTRICAL 2
- ELECTRICAL 3
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- • GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL COOLER
- OIL PUMP
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT
- SIDE COVERS
- STARTING MOTOR
- THROTTLE BODY ASSY.
- VALVE W/ CAM SHAFTS AND CHAIN
- VENTILATION
