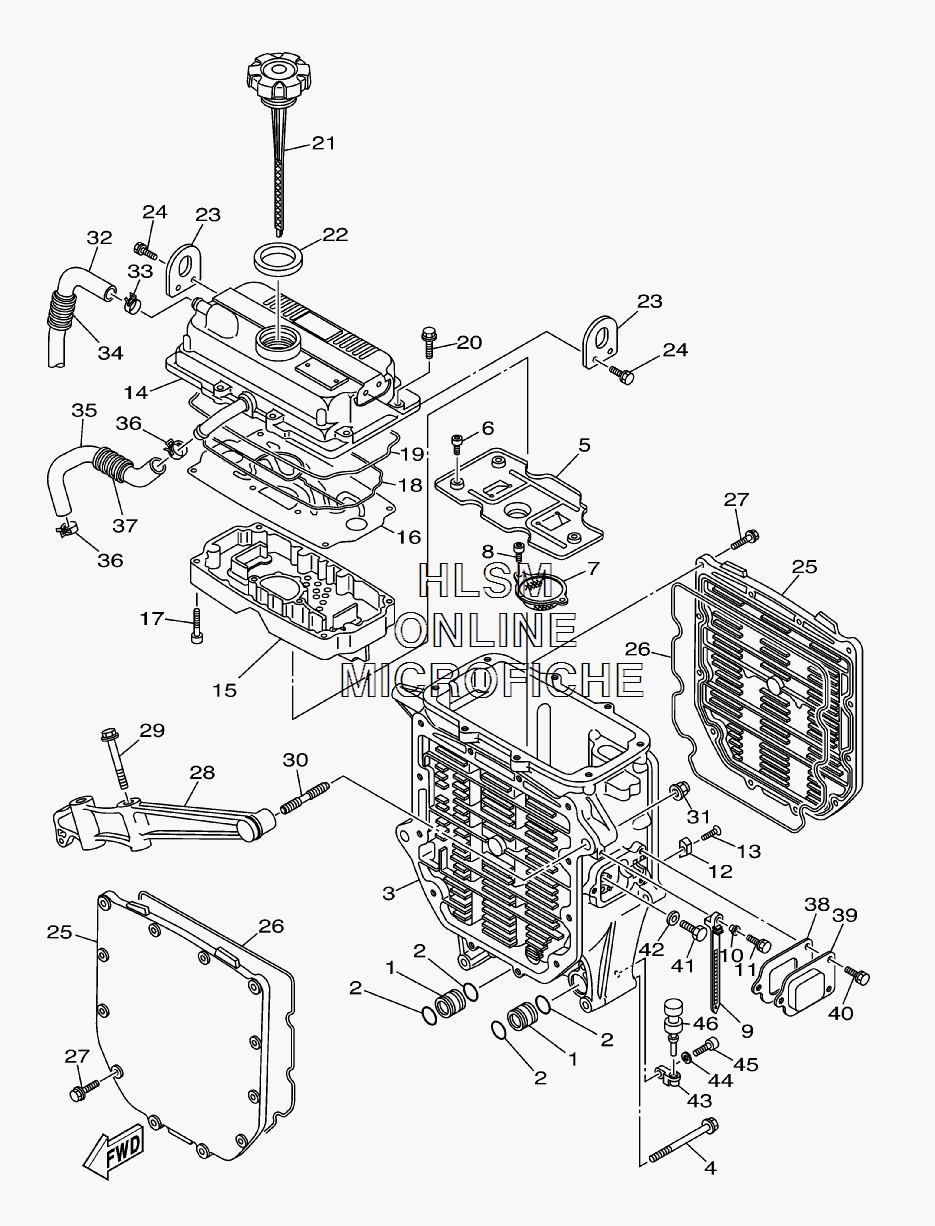

OIL COOLER для Yamaha FX CRUISER 3-PASS - 2007 года выпуска`
-
№АртикулНазвание
-
160E-13446-00-00 CONNECTORCONNECTOR
-
293210-18322-00 O-RINGO-RING
-
360E-13462-00-94 CASE, OIL COOLERCASE, OIL COOLER
-
490119-08M67-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
560E-13317-00-00 PLATE, BAFFLEPLATE, BAFFLE
-
691317-05014-00 BOLTBOLT
-
760E-13421-00-00 STRAINER 2STRAINER 2
-
891317-06014-00 BOLTBOLT
-
990465-12M53-00 CLAMPCLAMP
-
1090387-06M05-00 COLLARCOLLAR
-
1197595-06520-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
126E5-11325-00-00 ANODEANODE
-
1398780-04015-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1460E-13463-10-94 COVER, OIL COOLERCOVER, OIL COOLER
-
1560E-11165-10-00 PLATE, BREATHERPLATE, BREATHER
-
1660E-11145-10-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
1791317-05035-00 BOLTBOLT
-
1860E-13475-00-00 GASKETGASKET
-
1960E-13477-00-00 GASKETGASKET
-
2090105-06036-00 BOLT, FLANGEBOLT, FLANGE
-
2160E-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2260E-13473-00-00 O-RINGO-RING
-
236B6-11119-00-00 HANGER, ENGINEHANGER, ENGINE
-
2490119-06023-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
256D3-13443-00-94 COVER, OIL COOLERCOVER, OIL COOLER
-
2660E-13476-10-00 GASKETGASKET
-
2790105-06M07-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2860E-13151-00-94 STAYSTAY
-
2990119-10M02-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090116-10016-00 BOLT, STUDBOLT, STUD
-
3190176-10001-00 NUT, CROWNNUT, CROWN
-
3260E-11166-01-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
3390467-170A0-00 CLIPCLIP
-
3490447-19005-00 HOSE, WITH SPRINGHOSE, WITH SPRING
-
3560E-11167-01-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
3690467-170A0-00 CLIPCLIP
-
3790447-19004-00 HOSE, WITH SPRING (L=130)HOSE, WITH SPRING (L=130)
-
3860E-13567-00-00 GASKETGASKET
-
3960E-13882-00-00 COVER 2COVER 2
-
4097580-06516-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4197013-06012-00 BOLTBOLT
-
4292903-06600-00 WASHER, PLATEWASHER, PLATE
-
4360E-51341-00-94 BRACKET 1BRACKET 1
-
4492995-06600-00 WASHERWASHER
-
4591380-06020-00 BOLTBOLT
-
4690480-06M46-00 GROMMETGROMMET
