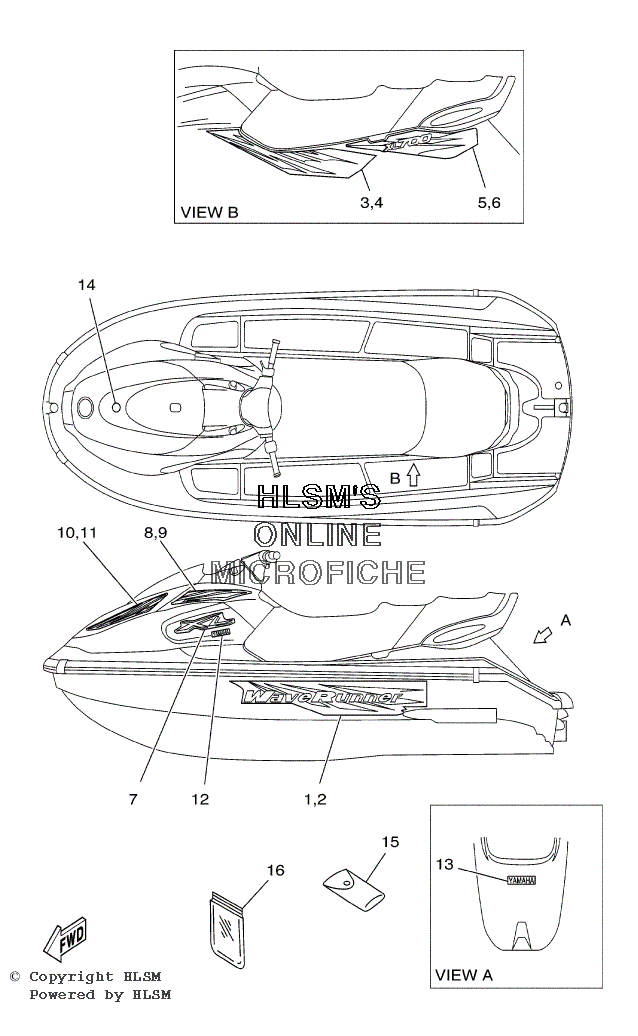

GRAPHICS для Yamaha XL 700 Z - 2001 года выпуска`
-
№АртикулНазвание
-
1F0M-U417B-10-00 GRAPHIC 1 (LH)GRAPHIC 1 (LH)
-
2F0M-U417C-10-00 GRAPHIC 2 (RH)GRAPHIC 2 (RH)
-
3F0M-U417D-10-00 GRAPHIC 3 (LH)GRAPHIC 3 (LH)
-
4F0M-U417E-10-00 GRAPHIC 4GRAPHIC 4
-
5F0M-U417F-10-00 GRAPHIC 5 (LH)GRAPHIC 5 (LH)
-
6F0M-U417G-10-00 GRAPHIC 6 (RH)GRAPHIC 6 (RH)
-
7F0M-U417H-10-00 GRAPHIC 7GRAPHIC 7
-
8F0M-U417J-10-00 GRAPHIC 8 (LH)GRAPHIC 8 (LH)
-
9F0M-U417K-10-00 GRAPHIC 9 (RH)GRAPHIC 9 (RH)
-
10F0M-U417L-10-00 GRAPHIC B (LH).GRAPHIC B (LH).
-
11F0M-U417M-10-00 GRAPHIC C (RH)GRAPHIC C (RH)
-
12GU0-U4122-00-00 EMBLEM 2EMBLEM 2
-
13GJ3-U4114-52-00 MARK, YAMAHA AMARK, YAMAHA A
-
14GU2-U411H-00-00 EMBLEM, TUNING FORKEMBLEM, TUNING FORK
-
15EU0-65986-00-00 TOOL SETTOOL SET
-
16EU0-65901-01-00 TOOL BAGTOOL BAG
