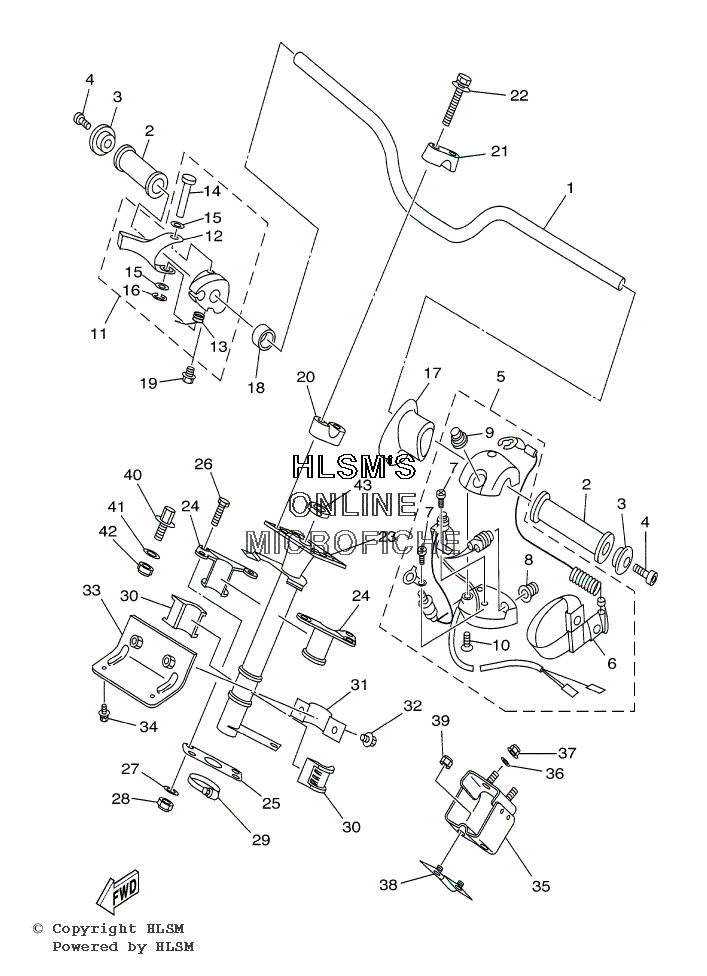

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha XL 700 Z - 2001 года выпуска`
-
№АртикулНазвание
-
1GU2-U1552-00-00 HANDLEHANDLE
-
2GP7-U155D-00-00 GRIP, HANDLEGRIP, HANDLE
-
3GP7-U155F-00-00 GRIP, ENDGRIP, END
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5FK7-68310-07-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
6EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
797880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
8FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
9FK7-68313-02-00 ...START BUTTON COMP....START BUTTON COMP.
-
1097880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
11GJ1-67250-01-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
12GJ1-67255-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
13EW2-67256-00-00 ...SPRING...SPRING
-
14EW2-67257-01-00 ...SHAFT...SHAFT
-
15EW2-67258-01-00 ...WASHER...WASHER
-
16EW2-67259-01-00 ...E-RING...E-RING
-
17GU2-6143G-00-00 SPACERSPACER
-
1890560-22281-00 SPACERSPACER
-
1990159-059U2-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
20EU0-23814-01-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
21EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
2290119-08806-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
23GU2-61541-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
24GH1-6141B-00-00 BEARING, COLUMNBEARING, COLUMN
-
25GH1-U143C-30-00 SEAL, RUBBERSEAL, RUBBER
-
269708R-06030-00 BOLTBOLT
-
279299R-06200-00 WASHERWASHER
-
289572R-06300-00 NUT, FLANGENUT, FLANGE
-
2990601-142U6-00 BAND, HOSE 2BAND, HOSE 2
-
30GH1-6141D-01-00 BEARING, STEERINGBEARING, STEERING
-
31EU0-61588-00-00 JOINT, BEARINGJOINT, BEARING
-
3290119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
33GU2-61433-00-00 BRACKET, BEARINGBRACKET, BEARING
-
3490119-089U7-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
35GU2-61467-00-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
369299R-06200-00 WASHERWASHER
-
379578R-06300-00 NUT, FLANGENUT, FLANGE
-
38GH3-61468-00-00 STOPPER, CABLESTOPPER, CABLE
-
399572R-06300-00 NUT, FLANGENUT, FLANGE
-
40FN8-6131B-00-00 PIN, STOPPERPIN, STOPPER
-
419299R-10200-00 WASHERWASHER
-
429572R-10300-00 NUT, FLANGENUT, FLANGE
-
43GH1-U1469-00-00 PACKING, STEERINGPACKING, STEERING
