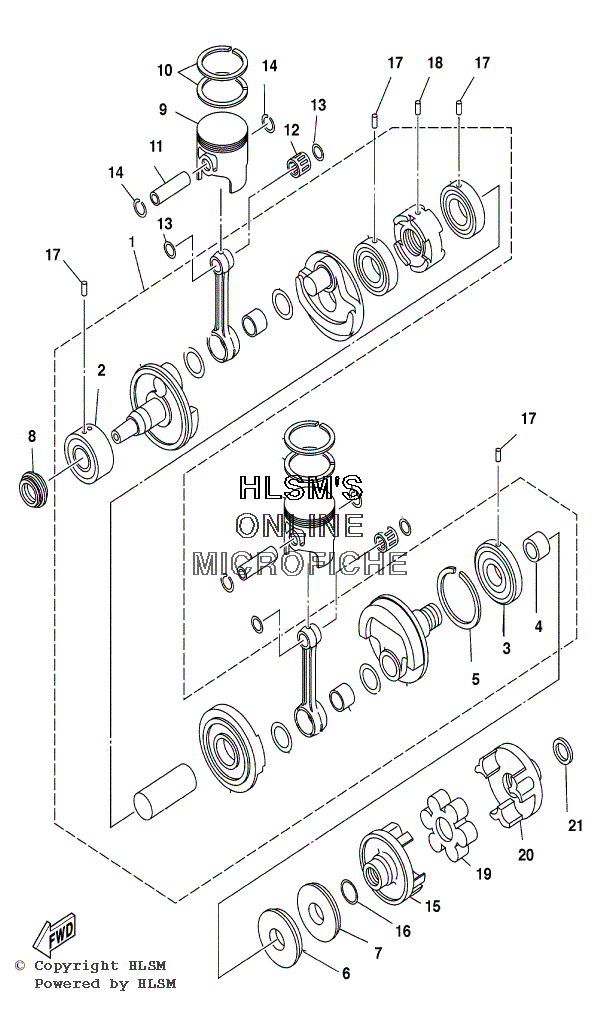

CRANKSHAFT W/ PISTON для Yamaha XL 700 Z - 2001 года выпуска`
-
№АртикулНазвание
-
162T-11400-02-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
293305-30601-00 ...BEARING...BEARING
-
393306-307U3-00 ...BEARING...BEARING
-
462T-45526-00-00 ...COLLAR, DRIVE SHAFT...COLLAR, DRIVE SHAFT
-
593440-80023-00 ...CIRCLIP...CIRCLIP
-
693102-36M33-00 OIL SEALOIL SEAL
-
793101-36M46-00 OIL SEALOIL SEAL
-
893103-32M01-00 OIL SEALOIL SEAL
-
962T-11631-01-92 PISTON (STD)PISTON (STD)
-
962T-11635-01-00 PISTON (0.25MM O/S) (AP)PISTON (0.25MM O/S) (AP)
-
962T-11636-01-00 PISTON (0.50MM O/S) (AP)PISTON (0.50MM O/S) (AP)
-
1061X-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1061X-11604-00-00 PISTON RING SET (0.25MM O/S) (AP)PISTON RING SET (0.25MM O/S) (AP)
-
1061X-11605-00-00 PISTON RING SET (0.50MM O/S) (AP)PISTON RING SET (0.50MM O/S) (AP)
-
1162T-11633-00-00 PIN, PISTONPIN, PISTON
-
1293310-320U2-00 BEARINGBEARING
-
1390201-20M04-00 WASHER, PLATEWASHER, PLATE
-
1493450-21053-00 CIRCLIPCIRCLIP
-
156M6-45813-32-8 PFLANGE, COUPLINGPFLANGE, COUPLING
-
1662T-45127-00-00 SEALSEAL
-
1793603-10049-00 PIN, DOWELPIN, DOWEL
-
1893604-07141-00 PIN, DOWELPIN, DOWEL
-
1961X-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
206M6-45813-22-8 PFLANGE, COUPLINGPFLANGE, COUPLING
-
2190201-248M5-00 WASHER, PLATEWASHER, PLATE
