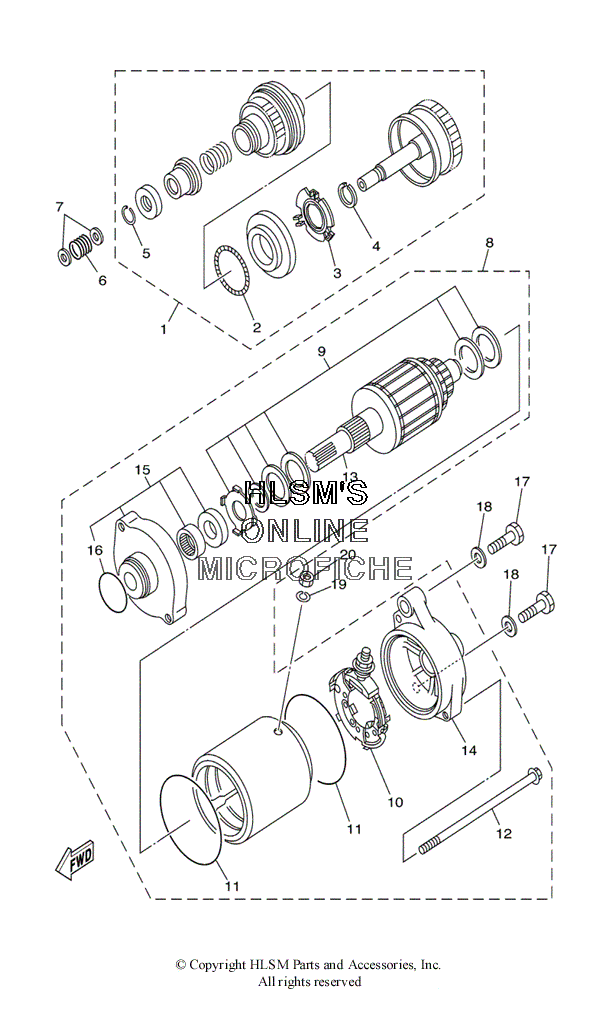

STARTING MOTOR для Yamaha XL 1200 LTD - 2000 года выпуска`
-
№АртикулНазвание
-
16M6-8183E-00-00 IDLE GEAR COMPIDLE GEAR COMP
-
26M6-81866-00-00 ...WEIGHT SPRING...WEIGHT SPRING
-
36M6-81865-00-00 ...WEIGHT HOLDER...WEIGHT HOLDER
-
493440-25M08-00 ...CIRCLIP...CIRCLIP
-
593450-18M06-00 ...CIRCLIP...CIRCLIP
-
690501-14M73-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
792903-06600-00 WASHER, PLATEWASHER, PLATE
-
863M-81800-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
93AJ-81809-00-00 ...WASHER KIT...WASHER KIT
-
106M6-81840-10-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
1111H-81844-00-00 ...GASKET...GASKET
-
126M6-81826-00-00 ...BOLT...BOLT
-
136M6-81850-00-00 ...ARMATURE ASSY...ARMATURE ASSY
-
1463M-81830-00-00 ...FRONT BRACKET ASSY...FRONT BRACKET ASSY
-
156M6-81830-00-00 ...FRONT BRACKET ASSY...FRONT BRACKET ASSY
-
161FK-81847-00-00 …...O-RING…...O-RING
-
1797013-08025-00 BOLTBOLT
-
1892903-08600-00 WASHER, PLATEWASHER, PLATE
-
1992990-06100-00 WASHER, SPRINGWASHER, SPRING
-
2095380-06700-00 NUTNUT
Все узлы модели:
- AIR SILENCER W/ INTAKE
- CARBURETOR
- CARBURETOR REPAIR KIT
- CONTROL CABLES
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CRANKCASE 1
- CYLINDER W/ CRANKCASE 2
- ELECTRICAL 1
- ELECTRICAL 2
- EXHAUST - HOSES
- EXHAUST - WATER BOX
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL LINES
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHIC-TOOL
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL - GUNWALE - MAT
- HULL-DECK 1
- OIL PUMP
- OIL TANK
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- REVERSE GATE
- SEAT
- SIDE COVERS
- • STARTING MOTOR
- VENTILATION
