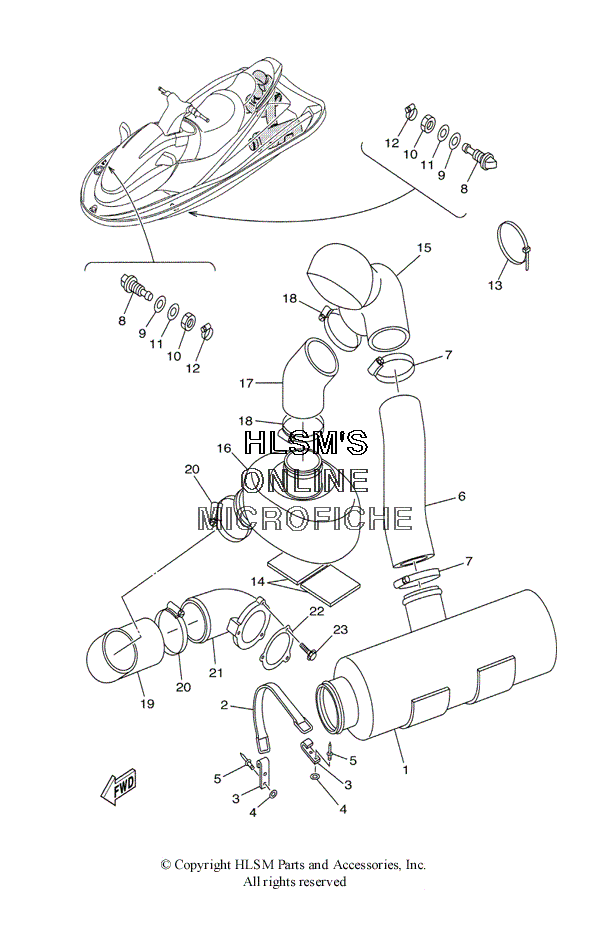

EXHAUST - WATER BOX для Yamaha XL 1200 LTD - 2000 года выпуска
-
№АртикулНазвание
-
1F0D-67550-01-00 WATER LOCK COMP.WATER LOCK COMP.
-
2GA7-6756E-00-00 BAND, WATER LOCKBAND, WATER LOCK
-
3GA7-65772-00-00 HOOK AHOOK A
-
49299R-05200-00 WASHER (YMUS)WASHER (YMUS)
-
590267-489U7-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
6F0D-6758B-00-00 HOSE, EXHAUST 2HOSE, EXHAUST 2
-
790601-195UD-00 BAND, HOSE 95 (YMUS)BAND, HOSE 95 (YMUS)
-
8F0D-6753B-02-00 PILOT, WATERPILOT, WATER
-
990430-16910-00 GASKETGASKET
-
10GU0-61652-00-00 NUTNUT
-
1192990-16200-00 WASHER, PLAINWASHER, PLAIN
-
1290601-118UF-00 BAND, HOSE 18 (YMUS)BAND, HOSE 18 (YMUS)
-
1390464-32801-00 CLAMP (YMUS)CLAMP (YMUS)
-
14F0D-U7578-00-00 PACKING, HOSE 2 (YMUS)PACKING, HOSE 2 (YMUS)
-
15F0D-6753D-00-00 RESONATOR 2RESONATOR 2
-
16F0D-64261-01-00 TANK, WATERTANK, WATER
-
17F0D-6758C-01-00 HOSE, EXHAUST2HOSE, EXHAUST2
-
1890601-195UD-00 BAND, HOSE 95 (YMUS)BAND, HOSE 95 (YMUS)
-
19F0D-6758D-01-00 HOSE, EXHAUST 3HOSE, EXHAUST 3
-
2090601-195UD-00 BAND, HOSE 95 (YMUS)BAND, HOSE 95 (YMUS)
-
21F0D-67565-01-00 THRU-HULL, EXHAUSTTHRU-HULL, EXHAUST
-
22F0D-U7525-00-00 PACKING (YMUS)PACKING (YMUS)
-
2390119-069UK-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
