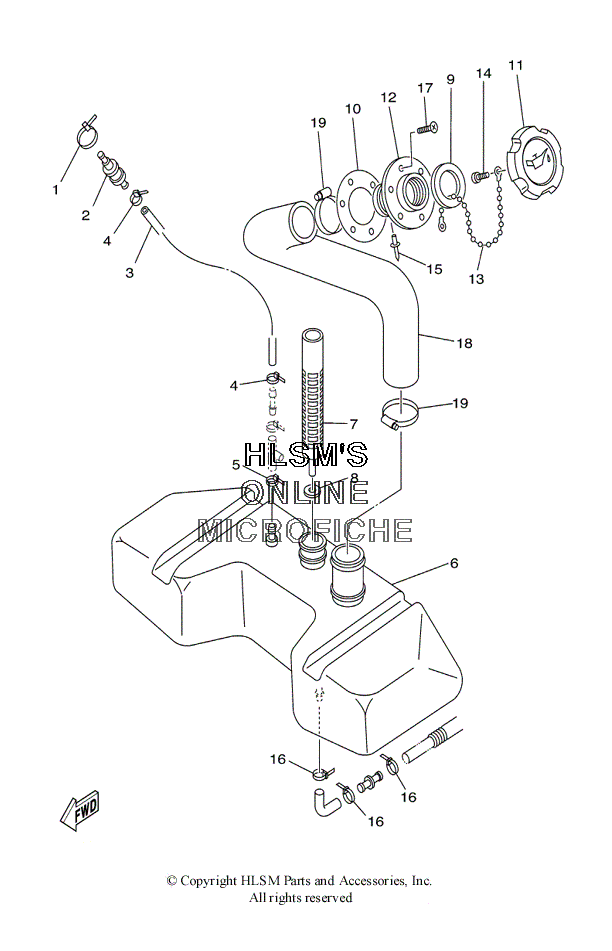

OIL TANK для Yamaha XL 1200 LTD - 2000 года выпуска
-
№АртикулНазвание
-
190464-32801-00 CLAMP (YMUS)CLAMP (YMUS)
-
2FJ0-67766-00-00 ROLL OVER VALVEROLL OVER VALVE
-
3GJ3-U7856-20-00 HOSE, AIR VENT 3 (YMUS)HOSE, AIR VENT 3 (YMUS)
-
490465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
590465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
6F0D-U775B-01-00 TANK, OIL (YMUS)TANK, OIL (YMUS)
-
7F0D-6775C-01-00 FILTERFILTER
-
8F0D-6775E-01-00 PACKINGPACKING
-
9GJ3-U778C-00-00 PACKING, OIL CAP (YMUS)PACKING, OIL CAP (YMUS)
-
10GJ3-U778E-00-00 PACKING, OIL FILLER (YMUS)PACKING, OIL FILLER (YMUS)
-
11GJ3-U778B-00-00 CAP, OIL FILLER (YMUS)CAP, OIL FILLER (YMUS)
-
12GJ3-U778D-00-00 SOCKET, OIL FILLER (YMUS)SOCKET, OIL FILLER (YMUS)
-
13EU0-U7835-00-00 CHAIN BALL (YMUS)CHAIN BALL (YMUS)
-
1497780-04110-00 SCREW, TAPPINGSCREW, TAPPING
-
1590267-40935-00 RIVET, BLINDRIVET, BLIND
-
1690465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
17FX1-67869-00-00 SCREW, FLAT HEAD TAPPINGSCREW, FLAT HEAD TAPPING
-
18F0D-U776C-00-00 HOSE, OIL FILLER (YMUS)HOSE, OIL FILLER (YMUS)
-
1990601-142U6-00 BAND, HOSE 42 (YMUS)BAND, HOSE 42 (YMUS)
