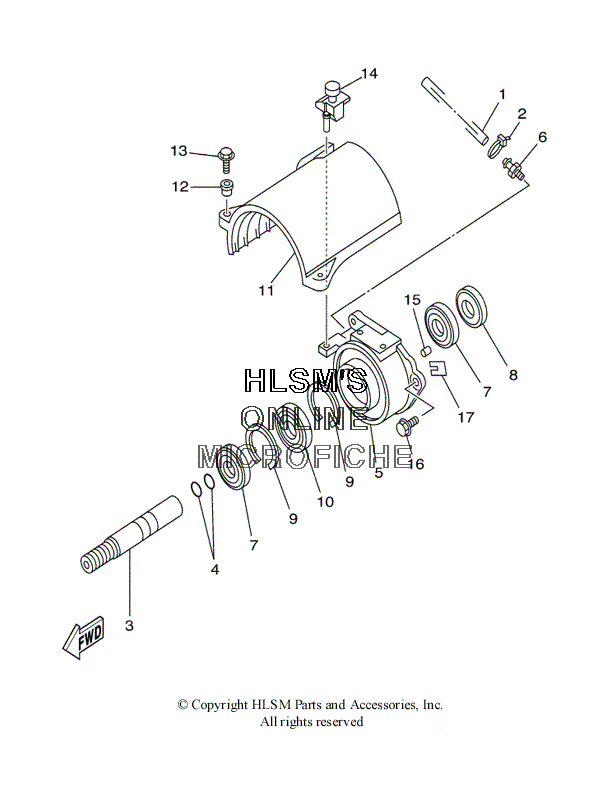

PROPULSION SYSTEM - INTERNAL для Yamaha SUPER JET 700 - 2000 года выпуска
-
№АртикулНазвание
-
190445-09M17-00 HOSEHOSE
-
290465-11M10-00 CLAMPCLAMP
-
36R7-51323-02-00 SHAFT, COUPLERSHAFT, COUPLER
-
493210-17MA4-00 O-RINGO-RING
-
561X-45332-03-94 HOUSING, BEARINGHOUSING, BEARING
-
661L-45378-00-00 NIPPLE, HOSENIPPLE, HOSE
-
793101-25M55-00 OIL SEALOIL SEAL
-
893101-25M56-00 OIL SEALOIL SEAL
-
993430-47M04-00 CIRCLIPCIRCLIP
-
1093306-205U6-00 BEARINGBEARING
-
1161X-51381-00-00 COVERCOVER
-
1290387-06M60-00 COLLARCOLLAR
-
1397595-06525-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490480-06M69-00 GROMMETGROMMET
-
1593606-12019-00 PIN, DOWELPIN, DOWEL
-
1690119-08907-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
17GD0-67249-00-05 SHIM (T=0.5) (UN)SHIM (T=0.5) (UN)
-
17GD0-67249-00-10 SHIM (T=1.0) (UN)SHIM (T=1.0) (UN)
