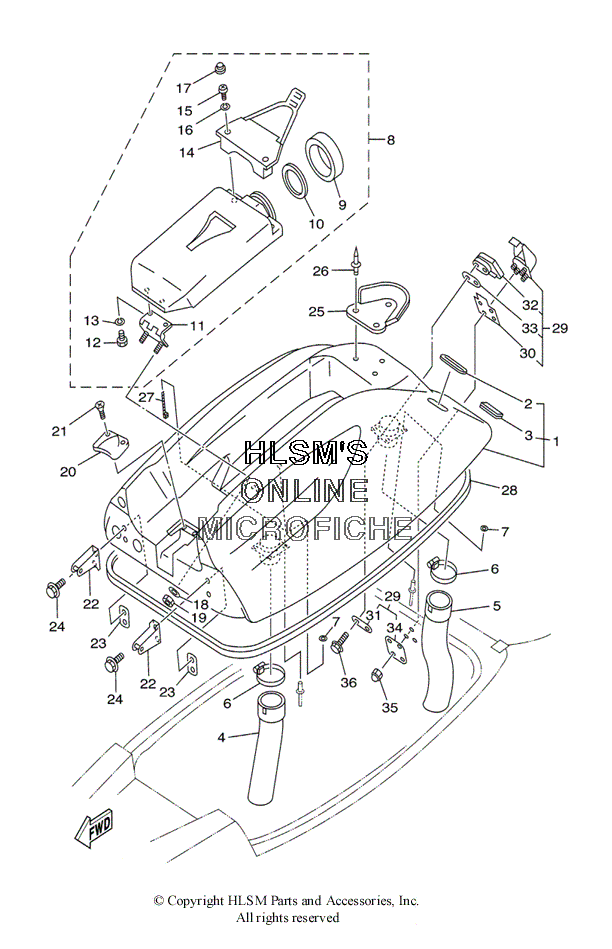

ENGINE HATCH для Yamaha SUPER JET 700 - 2000 года выпуска`
-
№АртикулНазвание
-
1GM6-6516A-10-P1 ENGINE HATCH COMP.ENGINE HATCH COMP.
-
2FX1-65116-10-00 ...TRIM, HATCH 2...TRIM, HATCH 2
-
3GM6-6516C-00-00 ...TRIM 1...TRIM 1
-
4GM6-6213F-00-00 HOSE,VENTILATOR 1HOSE,VENTILATOR 1
-
5EW2-62137-00-00 HOSE, VENTILATOR 2HOSE, VENTILATOR 2
-
690601-16875-00 BAND, HOSE 68BAND, HOSE 68
-
792990-05200-00 WASHER, PLAINWASHER, PLAIN
-
8FX1-6591A-10-00 CASE, ASSY 1CASE, ASSY 1
-
9EW2-65912-00-00 ...CAP, CASE...CAP, CASE
-
10EW2-65913-00-00 ...PACKING, CASE...PACKING, CASE
-
11FX1-6517D-00-00 ...HINGE, LID...HINGE, LID
-
1297090-06014-00 ...BOLT...BOLT
-
1392990-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
14FX1-6591K-00-00 ...BAND, CASE...BAND, CASE
-
1592580-06016-00 ...SCREW...SCREW
-
1692990-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
17FX1-6514F-00-00 ...CAP...CAP
-
1892990-06200-00 WASHER, PLAINWASHER, PLAIN
-
1995720-06300-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
20A00-62858-02-00 PLATE, HATCH (FL1)PLATE, HATCH (FL1)
-
2197780-50316-00 SCREW, TAPPINGSCREW, TAPPING
-
22GM6-65136-00-00 STOPPER HATCH 2STOPPER HATCH 2
-
23EW2-65137-00-00 PLATE, STOPPER HATCH 2PLATE, STOPPER HATCH 2
-
2490119-06900-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
25FX1-6514B-00-00 DAMPER, POLEDAMPER, POLE
-
2690267-48938-00 RIVET, BLINDRIVET, BLIND
-
2790601-20022-00 CLAMPCLAMP
-
28GM6-62664-00-00 PACKINGPACKING
-
29EW2-62840-10-00 HATCH LOCK ASSYHATCH LOCK ASSY
-
30EW2-62845-10-00 ...PACKING, HATCH LOCK...PACKING, HATCH LOCK
-
31EW2-62846-00-00 ...PLATE, HATCH LOCK...PLATE, HATCH LOCK
-
32EW2-62843-00-00 ...HOOK, HATCH LOCK...HOOK, HATCH LOCK
-
33EW2-62847-00-00 ...PACKING, HOOK...PACKING, HOOK
-
34EW2-62848-00-00 ...PLATE, HOOK...PLATE, HOOK
-
3595720-05300-00 NUT, FLANGENUT, FLANGE
-
3690119-05923-00 BOLT, WITH WASHERBOLT, WITH WASHER
