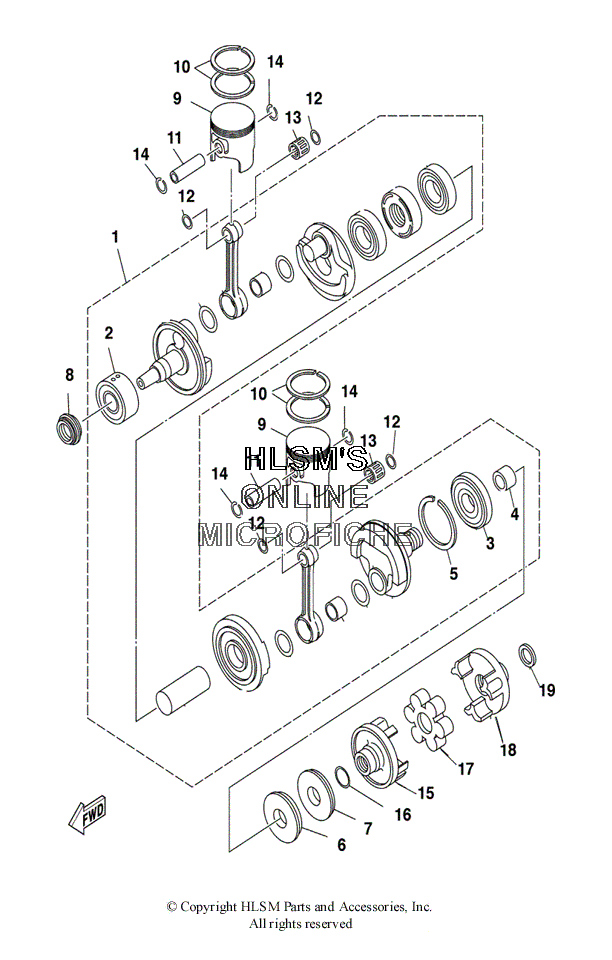

CRANKSHAFT W/ PISTON для Yamaha SUPER JET 700 - 2000 года выпуска`

№

Артикул

Название
1

61X-11400-03-00 CRANKSHAFT ASSY (USA)

CRANKSHAFT ASSY (USA)

154 660 ₽
2

93305-30601-00 ...BEARING (USA)

...BEARING (USA)

16 690 ₽
3

93306-307U3-00 ...BEARING (USA)

...BEARING (USA)

7 550 ₽
4

62T-45526-00-00 ...COLLAR, DRIVE SHAFT (USA)

...COLLAR, DRIVE SHAFT (USA)

3 770 ₽
5

93440-80023-00 ...CIRCLIP (USA)

...CIRCLIP (USA)

1 330 ₽
6

93102-36M33-00 OIL SEAL (USA)

OIL SEAL (USA)

3 770 ₽
7

93101-36M46-00 OIL SEAL (USA)

OIL SEAL (USA)

1 880 ₽
8

93103-32M01-00 OIL SEAL (USA)

OIL SEAL (USA)

3 300 ₽
9

61X-11631-00-93 PISTON (STD) (USA)

PISTON (STD) (USA)

14 480 ₽
9

61X-11635-00-00 PISTON (0.25MM O/S) (AP) (USA)

PISTON (0.25MM O/S) (AP) (USA)

9 130 ₽
9

61X-11636-00-00 PISTON (0.50MM O/S) (AP) (USA)

PISTON (0.50MM O/S) (AP) (USA)

9 130 ₽
10

61X-11603-00-00 PISTON RING SET (STD) (USA)

PISTON RING SET (STD) (USA)

7 870 ₽
10

61X-11604-00-00 PISTON RING SET (0.25MM O/S) (AP) (USA)

PISTON RING SET (0.25MM O/S) (AP) (USA)

7 870 ₽
10

61X-11605-00-00 PISTON RING SET (0.50MM O/S) (AP) (USA)

PISTON RING SET (0.50MM O/S) (AP) (USA)

7 870 ₽
11

61X-11633-00-00 PIN, PISTON (USA)

PIN, PISTON (USA)

1 880 ₽
12

90201-20M04-00 WASHER, PLATE (USA)

WASHER, PLATE (USA)

1 030 ₽
13

93310-320U2-00 BEARING (USA)

BEARING (USA)

3 770 ₽
14

93450-21053-00 CIRCLIP (USA)

CIRCLIP (USA)

180 ₽
15

6M6-45813-32-8P FLANGE, COUPLING (USA)

FLANGE, COUPLING (USA)

12 590 ₽
16

62T-45127-00-00 SEAL (USA)

SEAL (USA)

1 040 ₽
17

61X-4581J-00-00 RUBBER SHAFT COUPLING (USA)

RUBBER SHAFT COUPLING (USA)

17 790 ₽
18

6M6-45813-22-8P FLANGE, COUPLING (USA)

FLANGE, COUPLING (USA)

12 590 ₽
19

90201-24M02-00 WASHER, PLATE (USA)

WASHER, PLATE (USA)

840 ₽
