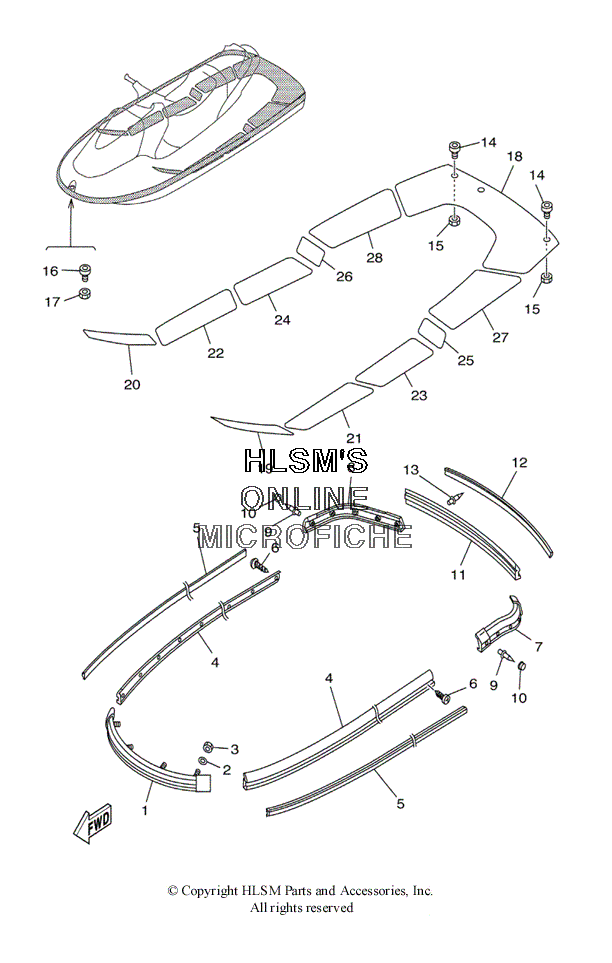

HULL - GUNWALE - MAT для Yamaha GP 800 - 2000 года выпуска`
-
№АртикулНазвание
-
1GP7-U2501-20-00 BOW GUNWALE COMP. (YMUS)BOW GUNWALE COMP. (YMUS)
-
29299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
39572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
4GP7-U2512-10-00 GUNWALE, SIDE (YMUS)GUNWALE, SIDE (YMUS)
-
5GP7-U2519-50-00 INNER,GUNWALE (YMUS)INNER,GUNWALE (YMUS)
-
690169-059U1-00 SCREW,TAPPING (YMUS)SCREW,TAPPING (YMUS)
-
7GP7-U251D-20-00 GUNWALE, STERN 1 (YMUS)GUNWALE, STERN 1 (YMUS)
-
8GP7-U251E-20-00 GUNWALE, STERN 2 (YMUS)GUNWALE, STERN 2 (YMUS)
-
990267-489US-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
10GJ3-U352E-50-00 MAT, BOW (YMUS)MAT, BOW (YMUS)
-
11GP7-U252C-10-00 COVER, GUNWALE 1 (YMUS)COVER, GUNWALE 1 (YMUS)
-
12GP7-U252D-50-00 COVER, GUNWALE 2 (YMUS)COVER, GUNWALE 2 (YMUS)
-
1390267-489US-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
14FN8-61651-00-00 ROPE HOLEROPE HOLE
-
15EU0-61652-00-00 NUTNUT
-
16GH1-61651-00-00 ROPE HOLEROPE HOLE
-
17EU0-61652-00-00 NUTNUT
-
18GP7-U3581-11-00 MAT, UPPER (YMUS)MAT, UPPER (YMUS)
-
19GP7-U351H-10-00 MAT, STEP 1 (YMUS)MAT, STEP 1 (YMUS)
-
20GP7-U351J-10-00 MAT, STEP 2 (YMUS)MAT, STEP 2 (YMUS)
-
21GP7-U351K-11-00 MAT, STEP 3 (YMUS)MAT, STEP 3 (YMUS)
-
22GP7-U351M-11-00 MAT, STEP 4 (YMUS)MAT, STEP 4 (YMUS)
-
23GP7-U351N-11-00 MAT, STEP 5 (YMUS)MAT, STEP 5 (YMUS)
-
24GP7-U351P-11-00 MAT, STEP 6 (YMUS)MAT, STEP 6 (YMUS)
-
25GP7-U351R-10-00 MAT, STEP 7 (YMUS)MAT, STEP 7 (YMUS)
-
26GP7-U351S-10-00 MAT, STEP 8 (YMUS)MAT, STEP 8 (YMUS)
-
27GP7-U351T-11-00 MAT, STEP 9 (YMUS)MAT, STEP 9 (YMUS)
-
28GP7-U351U-11-00 MAT, STEP 10 (YMUS)MAT, STEP 10 (YMUS)
