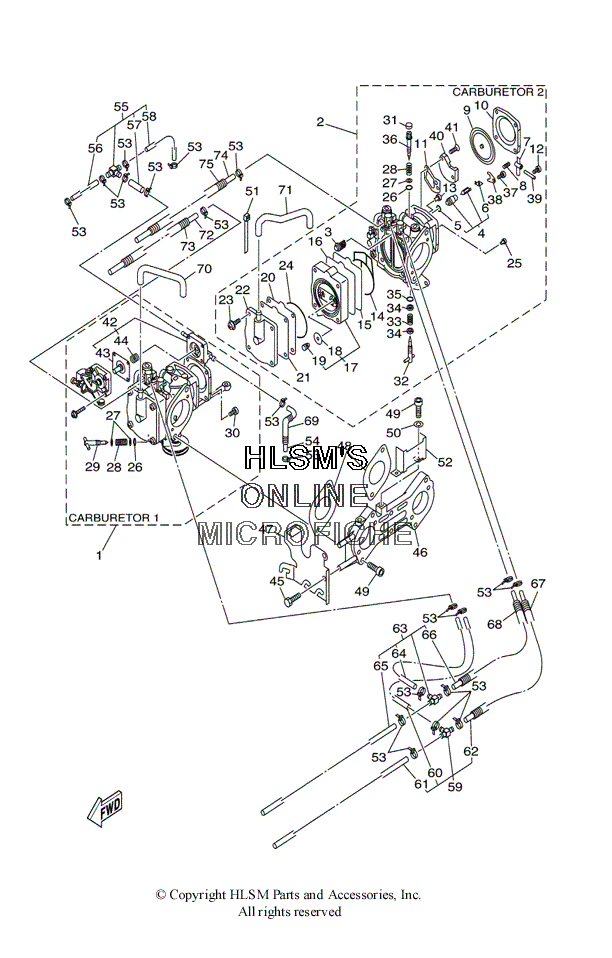

CARBURETOR для Yamaha GP 800 - 2000 года выпуска`
-
№АртикулНазвание
-
166E-14301-11-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
266E-14302-11-00 CARBURETOR ASSY 2CARBURETOR ASSY 2
-
36R7-14569-00-00 ...STRAINER...STRAINER
-
464T-14916-00-00 ...NEEDLE...NEEDLE
-
58F2-14147-00-00 ...O-RING...O-RING
-
67EG-14159-00-00 ...CLIP...CLIP
-
76K8-14547-01-00 ...ARM, FLOAT...ARM, FLOAT
-
86R7-14253-00-00 ...SPRING...SPRING
-
96R7-14541-00-00 ...DIAPHRAGM, PUMP...DIAPHRAGM, PUMP
-
106R7-14542-00-00 ...BODY, PUMP 1 (CARBURETOR 2)...BODY, PUMP 1 (CARBURETOR 2)
-
116K8-14536-11-00 ...GASKET...GASKET
-
126K8-14503-02-00 ...SCREW...SCREW
-
133G2-14231-30-00 ...JET, MAIN (#150) (UR CARBURETOR 1)...JET, MAIN (#150) (UR CARBURETOR 1)
-
133G2-14231-30-00 ...JET, MAIN (#150) (UR CARBURETOR 2)...JET, MAIN (#150) (UR CARBURETOR 2)
-
1466E-14563-01-00 O-RINGO-RING
-
1566E-24471-00-00 ...DIAPHRAGM...DIAPHRAGM
-
1666E-24411-00-00 ...DIAPHRAGM...DIAPHRAGM
-
1766E-24413-01-00 ...BODY 2...BODY 2
-
1866E-24362-00-00 ...VALVE, CHECK 1...VALVE, CHECK 1
-
1965U-24492-00-00 ...BUSH, FULEL PUMP...BUSH, FULEL PUMP
-
2066E-24421-00-00 ...VALVE, CHECK...VALVE, CHECK
-
2166E-24431-00-00 ...GASKET, FUEL PUMP 1...GASKET, FUEL PUMP 1
-
2266E-24452-00-00 ...COVER...COVER
-
2390157-05M17-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2466E-14564-01-00 ...O-RING...O-RING
-
25830-14231-18-00 ...JET, MAIN (# 90)...JET, MAIN (# 90)
-
26812-14147-00-00 ...O-RING...O-RING
-
27812-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
283KW-14932-00-00 ...SPRING, THROTTLE 2...SPRING, THROTTLE 2
-
2966E-14521-00-00 ...SCREW, ADJUST (CARBURETOR 1)...SCREW, ADJUST (CARBURETOR 1)
-
3097890-05014-00 ...SCREW, PAN HEAD (CARBURETOR 1)...SCREW, PAN HEAD (CARBURETOR 1)
-
316K8-14471-10-00 ...CAP, CARBURETOR...CAP, CARBURETOR
-
3266E-14211-00-00 ...SCREW, PILOT ADJUSTING...SCREW, PILOT ADJUSTING
-
336K8-14589-00-00 ...SPRING...SPRING
-
34822-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
3558314-56100-00 ...O-RING...O-RING
-
366K8-14946-10-00 ...METERING NEEDLE...METERING NEEDLE
-
376M6-14503-00-00 ...SCREW...SCREW
-
386K8-14527-11-00 ...PLATE...PLATE
-
3943914-18600-00 PIN, FLOATPIN, FLOAT
-
4066E-24412-00-00 ...BODY 1...BODY 1
-
416K8-14523-11-00 ...SCREW, STOP...SCREW, STOP
-
4266E-14280-00-00 ...COVER, CARBURETOR (CARBURETOR 1)...COVER, CARBURETOR (CARBURETOR 1)
-
4366E-14170-00-00 ...DIAPHRAGM ASS'Y (CARBURETOR 1)...DIAPHRAGM ASS'Y (CARBURETOR 1)
-
4466E-14286-00-00 ...SPRING (CARBURETOR 1)...SPRING (CARBURETOR 1)
-
4590101-06M25-00 BOLTBOLT
-
4666E-14243-00-00 PLATEPLATE
-
4766E-14291-00-00 BRACKET 1BRACKET 1
-
4866E-14398-00-00 GASKETGASKET
-
4966E-14162-00-00 BOLT, HOLDINGBOLT, HOLDING
-
5090204-06M01-00 WASHER, SPRINGWASHER, SPRING
-
514KM-14137-00-00 CLIPCLIP
-
5266E-14146-00-00 PLATEPLATE
-
5335H-14139-00-00 CLIP, PIPECLIP, PIPE
-
543XP-14294-00-00 HOSEHOSE
-
5566E-24376-00-00 PIPE, JOINT 1PIPE, JOINT 1
-
5690445-07M78-00 ...HOSE...HOSE
-
5790445-07M42-00 ...HOSE...HOSE
-
5890445-07M79-00 ...HOSE...HOSE
-
5966E-24377-00-00 PIPE, JOINT 3PIPE, JOINT 3
-
6090445-10MH0-00 ..HOSE..HOSE
-
6190445-10MH1-00 ...HOSE...HOSE
-
6290445-10MH2-00 ...HOSE...HOSE
-
6366E-24378-00-00 PIPE, JOINT 4PIPE, JOINT 4
-
6490445-10MH3-00 ...HOSE...HOSE
-
6590445-10MH4-00 ...HOSE...HOSE
-
6690445-10MH5-00 ...HOSE...HOSE
-
6790446-14M98-00 HOSEHOSE
-
6890446-14M99-00 HOSEHOSE
-
6990446-10MA2-00 HOSEHOSE
-
7066E-24314-00-00 PIPE 4PIPE 4
-
7166E-24315-00-00 PIPE 5PIPE 5
-
7290446-07M96-00 HOSEHOSE
-
7390446-10MA0-00 HOSEHOSE
-
7490446-07M97-00 HOSEHOSE
-
7590446-10MA1-00 HOSEHOSE
