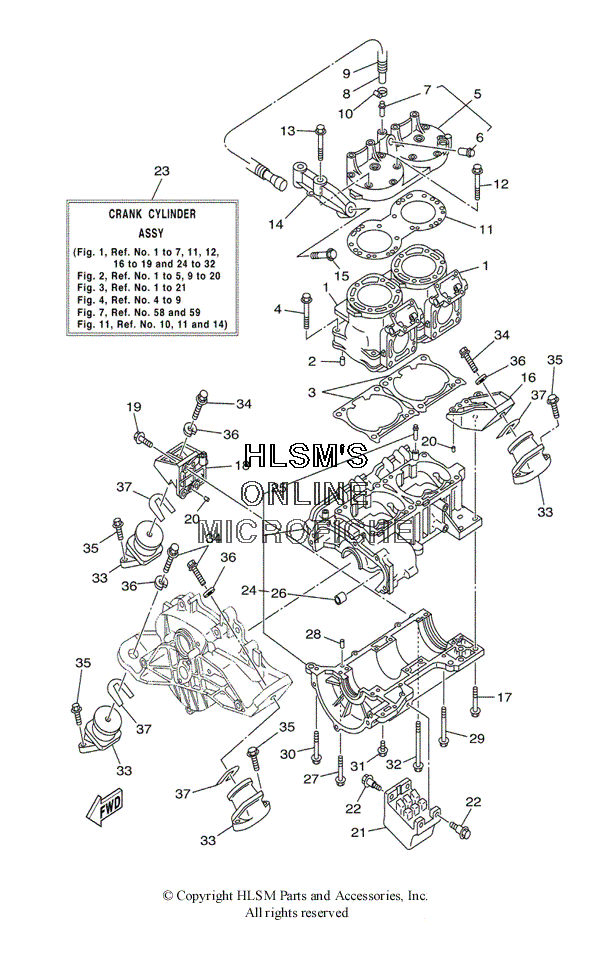

CYLINDER-CRANKCASE 1 для Yamaha GP 800 - 2000 года выпуска`
-
№АртикулНазвание
-
166E-11311-00-94 CYLINDER 1CYLINDER 1
-
293606-12019-00 PIN, DOWELPIN, DOWEL
-
366E-11351-01-00 GASKET, CYLINDERGASKET, CYLINDER
-
490119-10M07-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
566E-11111-00-94 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
666E-51129-00-00 ...NIPPLE...NIPPLE
-
76K8-51129-00-00 ...NIPPLE...NIPPLE
-
866E-12588-00-00 HOSE 5HOSE 5
-
990446-24M94-00 HOSEHOSE
-
1090450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1166E-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1290119-08MA1-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390119-08MA2-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1466E-14781-10-94 STAY, MUFFLER 2STAY, MUFFLER 2
-
1590119-10M00-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1666E-21425-10-8P BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
1797513-08545-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1866E-21426-10-8P BRACKET, REAR UPPER 2BRACKET, REAR UPPER 2
-
1997513-08530-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2093606-12019-00 PIN, DOWELPIN, DOWEL
-
2166E-44532-00-00 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
2290109-06M92-00 BOLTBOLT
-
2366E-W0090-11-8P CRANK CYLINDER ASSYCRANK CYLINDER ASSY
-
2466E-15100-10-8P CRANKCASE ASSYCRANKCASE ASSY
-
2562T-14251-10-00 ...NIPPLE...NIPPLE
-
2690380-12M29-00 ...BUSH, SOLID...BUSH, SOLID
-
2790119-08M55-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2893606-12019-00 PIN, DOWELPIN, DOWEL
-
2990119-06M78-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3090119-08M61-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3190119-06M13-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290119-08M56-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
336M6-44517-A1-5B MOUNT RUBBERMOUNT RUBBER
-
3490119-089UR-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3590119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3690201-099U3-00 WASHER, PLATEWASHER, PLATE
-
37EU0-U7354-00-01 SHIM (T=0.1)SHIM (T=0.1)
-
37EU0-U7354-00-03 SHIM (T=0.3)SHIM (T=0.3)
-
37EU0-U7354-00-05 SHIM (T=0.5)SHIM (T=0.5)
-
37EU0-U7354-00-10 SHIM (T=1.0)SHIM (T=1.0)
-
37EU0-U7354-00-20 SHIM (T=2.0)SHIM (T=2.0)
-
37EU0-U7354-00-30 SHIM (T=3.0)SHIM (T=3.0)
