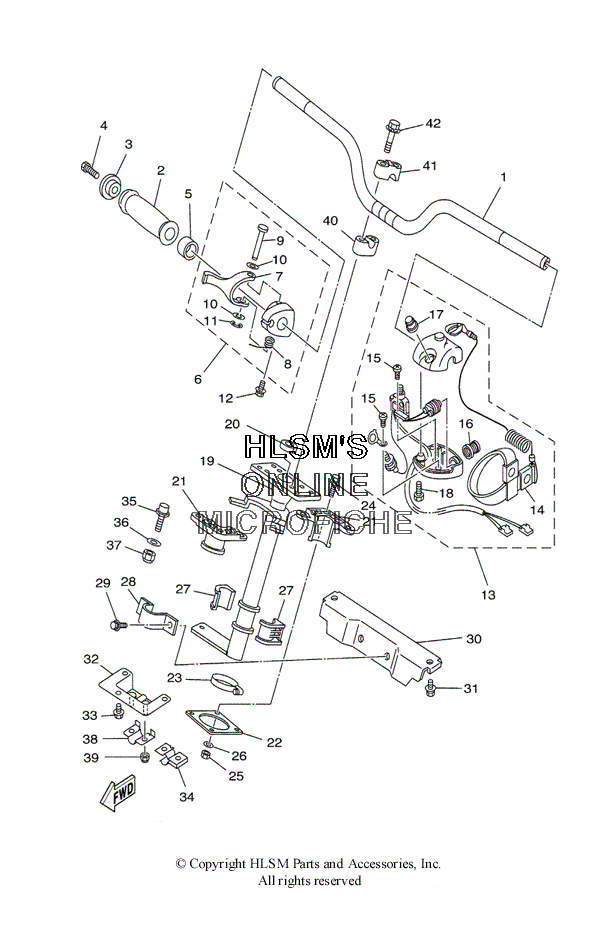

HANDLEBAR W/ CONTROLS - STEERING COLUMN для Yamaha GP 760 - 2000 года выпуска`
-
№АртикулНазвание
-
1GJ1-U1552-03-00 HANDLE (YMUS)HANDLE (YMUS)
-
2GP7-U155D-00-00 GRIP, HANDLE (YMUS)GRIP, HANDLE (YMUS)
-
3GP7-U155F-00-00 GRIP, END (YMUS)GRIP, END (YMUS)
-
490110-05908-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
590560-22281-00 SPACERSPACER
-
6GJ1-67250-01-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
7GJ1-67255-00-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
8EW2-67256-00-00 ...SPRING...SPRING
-
9EW2-67257-01-00 ...SHAFT...SHAFT
-
10EW2-67258-01-00 ...WASHER...WASHER
-
11EW2-67259-01-00 ...E RING...E RING
-
1290159-059U2-00 SCREW, WITH WASHER (YMUS)SCREW, WITH WASHER (YMUS)
-
13GP7-68310-00-00 SWITCH BOX ASSYSWITCH BOX ASSY
-
14EW2-68348-00-00 ...LANYARD, STOP SWITCH...LANYARD, STOP SWITCH
-
1597880-03008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
16FK7-68312-02-00 ...STOP BUTTON COMP...STOP BUTTON COMP
-
17FK7-68313-01-00 ...START BUTTON COMP...START BUTTON COMP
-
1897880-05025-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
19GP7-61541-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
20GH1-U1469-00-00 PACKING, STEERING COLUMN (YMUS)PACKING, STEERING COLUMN (YMUS)
-
21GH1-6141B-00-00 BEARING, COLUMNBEARING, COLUMN
-
22GH1-U143C-30-00 SEAL, RUBBER (YMUS)SEAL, RUBBER (YMUS)
-
2390601-142U6-00 BAND, HOSE 42 (YMUS)BAND, HOSE 42 (YMUS)
-
249708R-06030-00 BOLT (YMUS)BOLT (YMUS)
-
259572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
269299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
27GH1-6141D-01-00 BEARING, STEERINGBEARING, STEERING
-
28EU0-61588-00-00 JOINT, BEARINGJOINT, BEARING
-
2990119-089U7-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
30GP7-61433-00-00 BRACKET, BEARINGBRACKET, BEARING
-
3190119-089U7-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
32GP7-61467-00-00 BRACKET, STOPPER CABLEBRACKET, STOPPER CABLE
-
3390119-069UH-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
34GP7-6146K-01-00 HOLDER, STOPPERHOLDER, STOPPER
-
35FN8-6131B-00-00 PIN, STOPPERPIN, STOPPER
-
369299R-10200-00 WASHER (YMUS)WASHER (YMUS)
-
379572R-10300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
38GP7-61468-00-00 STOPPER, CABLESTOPPER, CABLE
-
399572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
40EU0-23814-01-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
41EU0-23814-30-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
4290119-089UM-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
