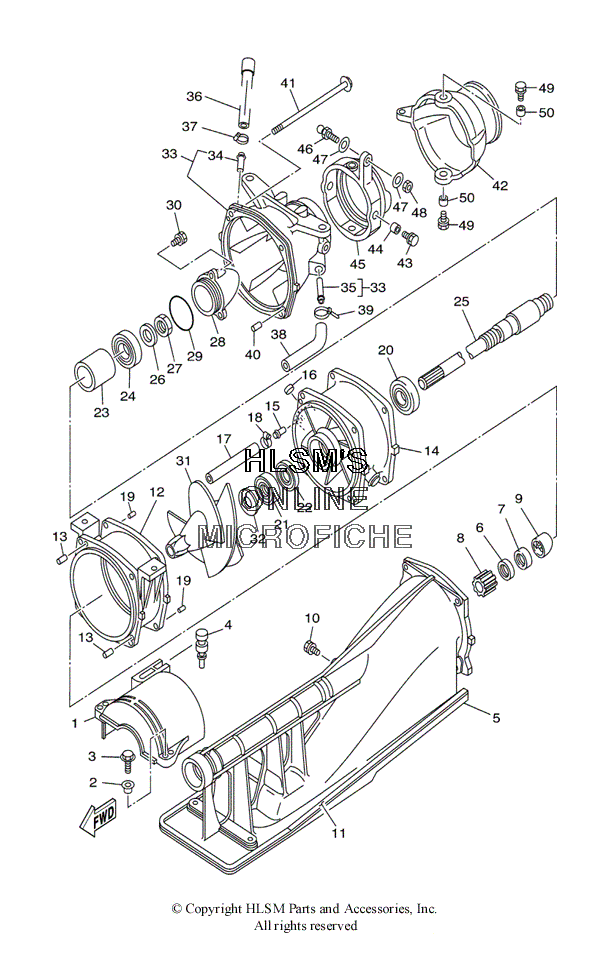

PROPULSION SYSTEM - EXTERNAL для Yamaha GP 760 - 2000 года выпуска`
-
№АртикулНазвание
-
165A-R1381-00-00 COVER (YMUS)COVER (YMUS)
-
290387-06M60-00 COLLARCOLLAR
-
390119-069UD-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
490480-06M46-00 GROMMETGROMMET
-
565V-51311-01-94 DUCT, INTAKEDUCT, INTAKE
-
693102-17M49-00 OIL SEALOIL SEAL
-
793102-17M50-00 OIL SEALOIL SEAL
-
865V-45318-00-00 BUSHING, DRIVE SHAFTBUSHING, DRIVE SHAFT
-
965U-R1348-01-00 SPACER (YMUS)SPACER (YMUS)
-
1090119-069UD-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
116R8-51367-01-00 FELT, PACKINGFELT, PACKING
-
126R8-51312-03-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
1393606-12019-00 PIN, DOWELPIN, DOWEL
-
1462T-51315-10-94 DUCT, IMPELLERDUCT, IMPELLER
-
1565A-R1129-00-00 NIPPLE (YMUS)NIPPLE (YMUS)
-
1690331-12M05-00 PLUGPLUG
-
1790445-14M17-00 HOSEHOSE
-
1890601-118UF-00 BAND, HOSE 18 (YMUS)BAND, HOSE 18 (YMUS)
-
1993606-12019-00 PIN, DOWELPIN, DOWEL
-
2093306-205U0-00 BEARINGBEARING
-
2193102-25M34-00 OIL SEALOIL SEAL
-
2293101-25M50-00 OIL SEALOIL SEAL
-
2365V-45538-00-00 SPACER 1SPACER 1
-
2493306-304U1-00 BEARINGBEARING
-
2565V-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
2692990-16600-00 WASHERWASHER
-
2795317-16700-00 NUTNUT
-
2865A-R1326-00-00 CAP (YMUS)CAP (YMUS)
-
2993210-46M16-00 O-RINGO-RING
-
3090119-069UB-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
3165V-51321-00-00 IMPELLERIMPELLER
-
3262T-51348-00-00 SPACERSPACER
-
3365V-51318-00-94 NOZZLENOZZLE
-
346K8-51129-00-00 ...NIPPLE...NIPPLE
-
3562T-51129-00-00 ...NIPPLE...NIPPLE
-
3661X-51673-00-00 PIPE 1PIPE 1
-
3790601-118UF-00 BAND, HOSE 18 (YMUS)BAND, HOSE 18 (YMUS)
-
3890445-14898-00 HOSE (L270) (YMUS)HOSE (L270) (YMUS)
-
3990465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
4093606-12019-00 PIN, DOWELPIN, DOWEL
-
4190119-06829-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
4265V-51313-00-00 NOZZLE,DEFLECTORNOZZLE,DEFLECTOR
-
4390119-089UE-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
4490387-08M08-00 COLLARCOLLAR
-
4564Y-51190-00-94 RING,TRIMRING,TRIM
-
46GH3-U146E-00-00 STUD, JOINT BALL (YMUS)STUD, JOINT BALL (YMUS)
-
4790201-06M31-00 WASHER, PLATEWASHER, PLATE
-
4895380-06700-00 NUTNUT
-
4990119-089UE-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
5090387-08M06-00 COLLARCOLLAR
