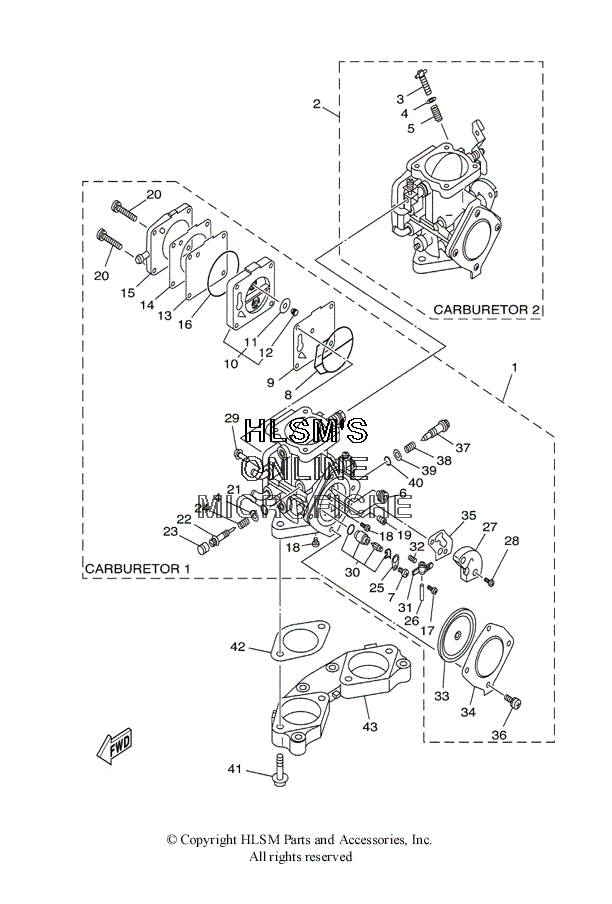

CARBURETOR для Yamaha GP 760 - 2000 года выпуска`
-
№АртикулНазвание
-
165V-14301-02-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
265V-14302-02-00 CARBURETOR ASSY 2CARBURETOR ASSY 2
-
36M6-14521-01-00 ...SCREW, ADJUST (CARBURETOR 2)...SCREW, ADJUST (CARBURETOR 2)
-
4812-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
547X-14133-00-00 ...SPRING, THROTTLE STOP (CARBURETOR 2)...SPRING, THROTTLE STOP (CARBURETOR 2)
-
63G2-14231-26-00 JET, MAIN (130) (UR CARBURETOR 1)JET, MAIN (130) (UR CARBURETOR 1)
-
63G2-1423A-77-00 ...JET, MAIN (132.5) (UR CARBURETOR 1)...JET, MAIN (132.5) (UR CARBURETOR 1)
-
76M6-14503-00-00 ...SCREW...SCREW
-
86K8-14564-00-00 ...O-RING...O-RING
-
96K8-24411-20-00 ...DIAPHRAGM...DIAPHRAGM
-
106M6-24413-01-00 ...BODY 2...BODY 2
-
1165U-24421-00-00 ...VALVE, CHECK...VALVE, CHECK
-
1265U-24492-00-00 ...BUSH, FUEL PUMP...BUSH, FUEL PUMP
-
136K8-24421-10-00 ...VALVE, CHECK...VALVE, CHECK
-
146K8-24431-20-00 ...GASKET, FUEL PUMP 1...GASKET, FUEL PUMP 1
-
156K8-24452-10-00 ...COVER (CARBURETOR 1)...COVER (CARBURETOR 1)
-
166K8-14563-00-00 ...O-RING...O-RING
-
176K8-14503-02-00 ...SCREW...SCREW
-
186K8-14521-10-00 ...SCREW...SCREW
-
19830-14231-23-00 ...JET, MAIN (#115)...JET, MAIN (#115)
-
2097980-05330-00 ...SCREW, WITH WASHER...SCREW, WITH WASHER
-
21812-14147-00-00 ...O-RING...O-RING
-
226K8-14946-10-00 ...METERING NEEDLE...METERING NEEDLE
-
236K8-14471-10-00 ...CAP, CARBURETOR...CAP, CARBURETOR
-
243KW-14932-00-00 ...SPRING, THROTTLE 2...SPRING, THROTTLE 2
-
256K8-14527-11-00 ...PLATE...PLATE
-
26439-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
276R7-24412-01-00 ...BODY 1...BODY 1
-
286K8-14523-11-00 ...SCREW, STOP...SCREW, STOP
-
296R7-14569-00-00 ...STRAINER...STRAINER
-
3061X-14916-15-00 ...NEEDLE...NEEDLE
-
316K8-14547-01-00 ...ARM, FLOAT...ARM, FLOAT
-
3263M-14253-00-00 ...SPRING...SPRING
-
336R7-14541-00-00 ...DIAPHRAGM, PUMP...DIAPHRAGM, PUMP
-
346R7-14542-00-00 ...BODY, PUMP 1...BODY, PUMP 1
-
356K8-14536-11-00 ...GASKET...GASKET
-
366K8-14591-10-00 ...SCREW...SCREW
-
3764X-14923-10-00 ...SCREW, PILOT...SCREW, PILOT
-
386K8-14589-00-00 ...SPRING...SPRING
-
39822-14235-00-00 ...WASHER, NEEDLE...WASHER, NEEDLE
-
40583-14561-00-00 ...O-RING...O-RING
-
4164X-14162-00-00 BOLT, HOLDINGBOLT, HOLDING
-
4264X-14398-00-00 GASKETGASKET
-
4364X-14243-00-00 PLATEPLATE
