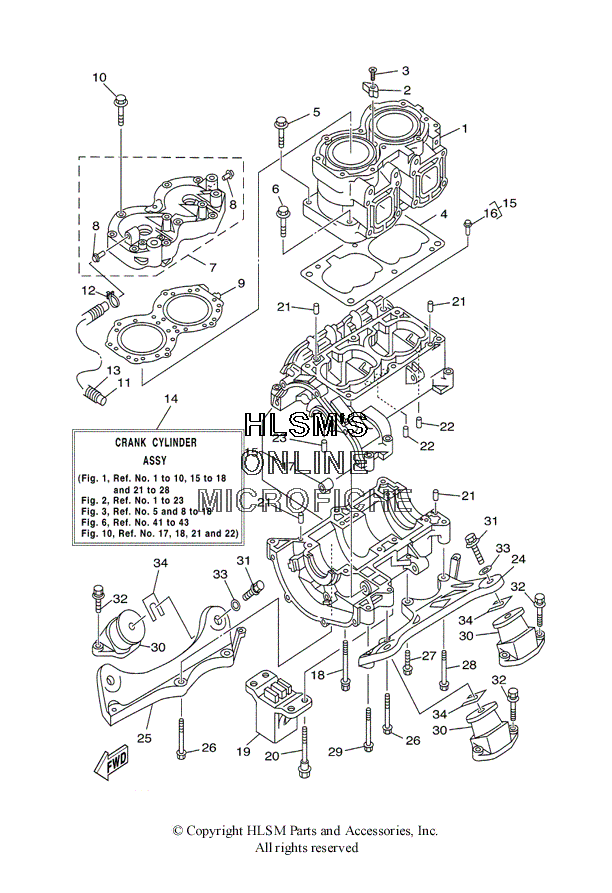

CYLINDER W/ CRANKCASE для Yamaha GP 760 - 2000 года выпуска`
-
№АртикулНазвание
-
164X-11311-00-94 CYL 1CYL 1
-
26E5-11325-00-00 ANODEANODE
-
398780-04015-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
46M6-11351-A2-00 GASKET, CYLGASKET, CYL
-
590119-10M56-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690119-10M07-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
764X-11111-00-94 HEAD, CYL 1HEAD, CYL 1
-
86K8-51129-00-00 ...NIPPLE...NIPPLE
-
964X-11181-00-00 GASKET, CYL HEAD 1GASKET, CYL HEAD 1
-
1090119-08M96-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1190445-14M07-00 HOSEHOSE
-
1290450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1390446-20M70-00 HOSEHOSE
-
1465V-W0090-01-8P CRANK CYL ASSYCRANK CYL ASSY
-
1564X-15100-00-94 CRANKCASE ASSYCRANKCASE ASSY
-
1662T-14251-10-00 ...NIPPLE...NIPPLE
-
1790380-12M29-00 ...BUSH, SOLID...BUSH, SOLID
-
1890119-08M55-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1965V-44532-00-00 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
2090109-08M56-00 BOLTBOLT
-
2193606-12019-00 PIN, DOWELPIN, DOWEL
-
2293603-10049-00 PIN, DOWELPIN, DOWEL
-
2393604-07141-00 PIN, DOWELPIN, DOWEL
-
246R7-21415-01-94 BRACKET, FRONT UPPER 1BRACKET, FRONT UPPER 1
-
256R7-21425-01-94 BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
2690119-10M02-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2790119-10M00-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2890119-10M03-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2990119-10M01-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3063M-44517-01-5B MOUNT RUBBERMOUNT RUBBER
-
3190119-089UR-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290119-089UT-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3390201-099U3-00 PLATEPLATE
-
34EU0-U7354-00-01 SHIM (0.1MM) 1SHIM (0.1MM) 1
-
34EU0-U7354-00-03 SHIM (T=0.3) 1SHIM (T=0.3) 1
-
34EU0-U7354-00-05 SHIM (T=0.5) 1SHIM (T=0.5) 1
-
34EU0-U7354-00-10 SHIM (T=1.0) 1SHIM (T=1.0) 1
-
34EU0-U7354-00-20 SHIM (T=2.0) 1SHIM (T=2.0) 1
-
34EU0-U7354-00-30 SHIM (T=3.0) 1SHIM (T=3.0) 1
