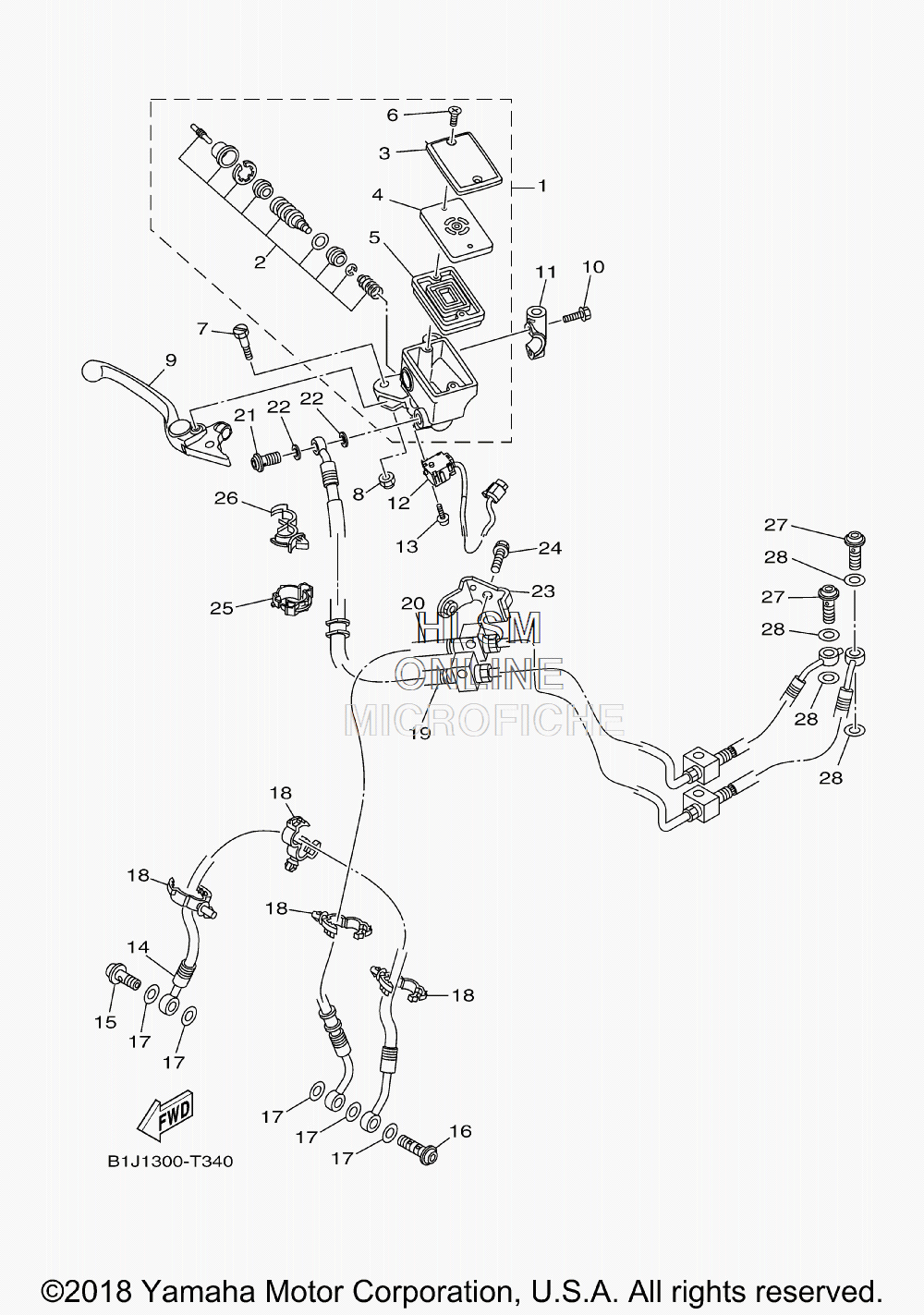

BRAKE - FRONT MASTER CYLINDER для Yamaha TRACER 900 CT - 2019 года выпуска`
-
№АртикулНазвание
-
1BW8-2580A-00-00 MASTER CYLINDER SUB ASSY 2MASTER CYLINDER SUB ASSY 2
-
21WS-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VS-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
45VS-25855-00-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
520S-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
75VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
95VS-83922-00-00 LEVER 2LEVER 2
-
1095027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1134B-25867-10-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
12B1J-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1397602-04214-00 SCREW, PAN HEAD WITH WASHERSCREW, PAN HEAD WITH WASHER
-
142DR-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1590401-10172-00 BOLT, UNIONBOLT, UNION
-
1690401-10042-00 BOLT, UNIONBOLT, UNION
-
1790430-10005-00 GASKETGASKET
-
1890464-18002-00 CLAMPCLAMP
-
192SC-2584A-01-00 BRAKE HOSE ASSYBRAKE HOSE ASSY
-
202DR-2584B-00-00 HOSE, BRAKEHOSE, BRAKE
-
2190401-10172-00 BOLT, UNIONBOLT, UNION
-
2290430-10005-00 GASKETGASKET
-
232DR-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
2490105-06192-00 BOLT, FLANGEBOLT, FLANGE
-
2590464-12013-00 CLAMPCLAMP
-
2690464-18246-00 CLAMPCLAMP
-
2790401-10172-00 BOLT, UNIONBOLT, UNION
-
2890430-10005-00 GASKETGASKET
