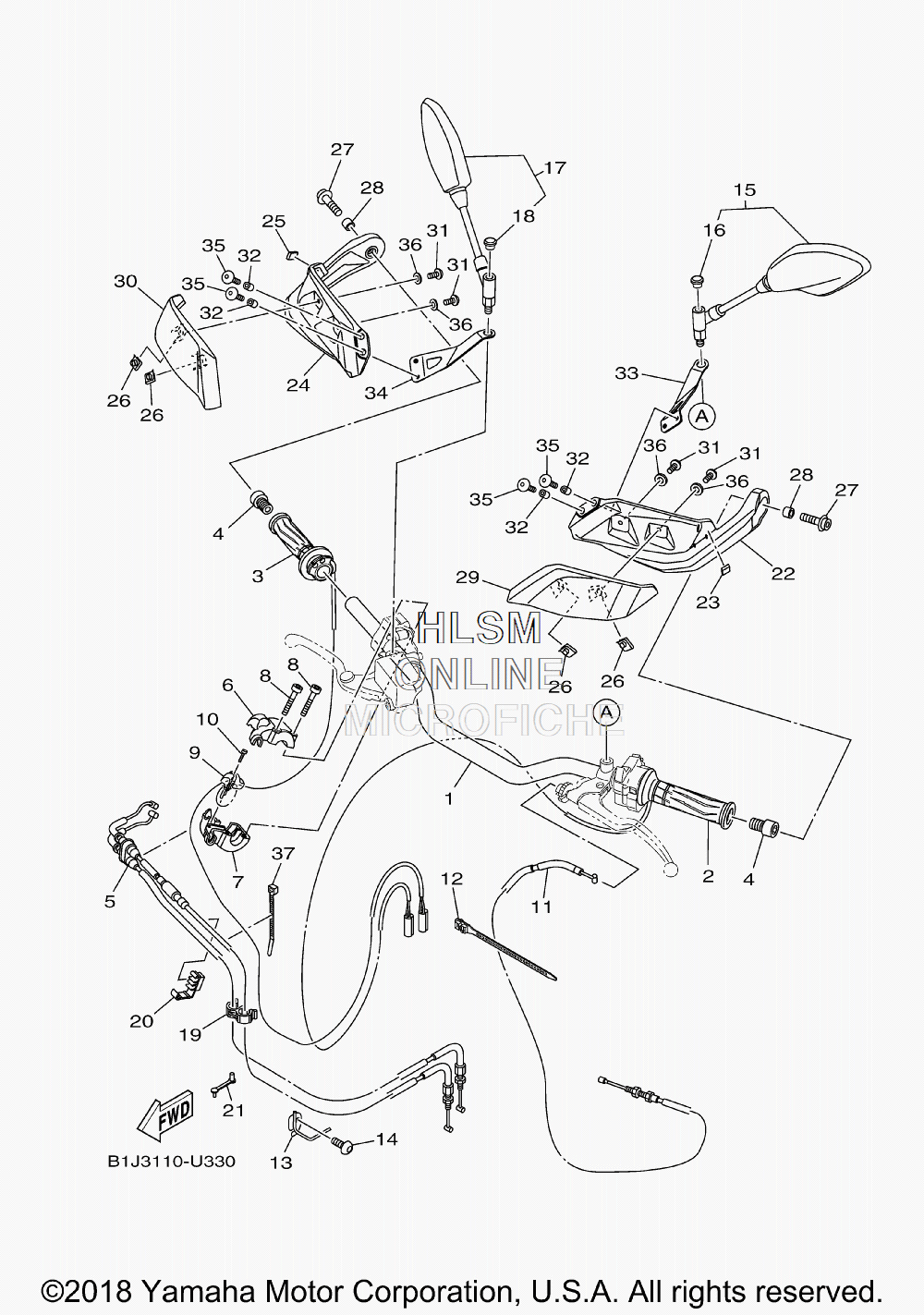

HANDLEBAR W/ CABLES для Yamaha TRACER 900 CT - 2019 года выпуска`
-
№АртикулНазвание
-
1B1J-26111-00-00 HANDLEBARHANDLEBAR
-
2B1J-82963-00-00 GRIP, WARMER (LEFT)GRIP, WARMER (LEFT)
-
3B1J-82960-00-00 GRIP, WARMER (RIGHT)GRIP, WARMER (RIGHT)
-
4B5C-26246-00-00 END, GRIPEND, GRIP
-
5B1J-26302-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
62D2-26281-01-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
72PP-26282-00-00 CAP, GRIP UNDERCAP, GRIP UNDER
-
891317-05035-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
92D2-2622K-00-00 PROTECTOR 1PROTECTOR 1
-
1090154-03001-00 SCREW, BINDINGSCREW, BINDING
-
112PP-26335-02-00 CABLE, CLUTCHCABLE, CLUTCH
-
1290464-45001-00 CLAMPCLAMP
-
13B90-23857-00-00 HOLDERHOLDER
-
1492017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
15B5C-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
1623P-26133-00-00 ...CAP...CAP
-
17B5C-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
1823P-26133-00-00 ...CAP...CAP
-
1990464-07M20-00 CLAMPCLAMP
-
2039P-2627E-00-00 CLAMP, WIRECLAMP, WIRE
-
2190464-05003-00 CLAMPCLAMP
-
22B5C-26141-00-00 GUARD, BRUSH 1GUARD, BRUSH 1
-
2390520-01001-00 DAMPER, PLATEDAMPER, PLATE
-
24B5C-26142-00-00 GUARD, BRUSH 2GUARD, BRUSH 2
-
2590520-01001-00 DAMPER, PLATEDAMPER, PLATE
-
2690183-05076-00 NUT, SPRINGNUT, SPRING
-
2790110-08099-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2890387-08114-00 COLLARCOLLAR
-
29B5C-26143-00-P1 COVER, HANDLE UPPER 1 (MBL2 - MAT BLACK FOR SMX - BLACK METALLIC)COVER, HANDLE UPPER 1 (MBL2 - MAT BLACK FOR SMX - BLACK METALLIC)
-
30B5C-26145-00-P1 COVER, HANDLE UPPER 2 (MBL2 - MAT BLACK FOR SMX - BLACK METALLIC)COVER, HANDLE UPPER 2 (MBL2 - MAT BLACK FOR SMX - BLACK METALLIC)
-
3192017-05012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3290387-05025-00 COLLARCOLLAR
-
33B1J-26223-00-00 BRACKET, HANDLE 1BRACKET, HANDLE 1
-
34B1J-26224-00-00 BRACKET, HANDLE 2BRACKET, HANDLE 2
-
3590111-05021-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3692907-05200-00 WASHERWASHER
-
3790465-10098-00 CLAMPCLAMP
