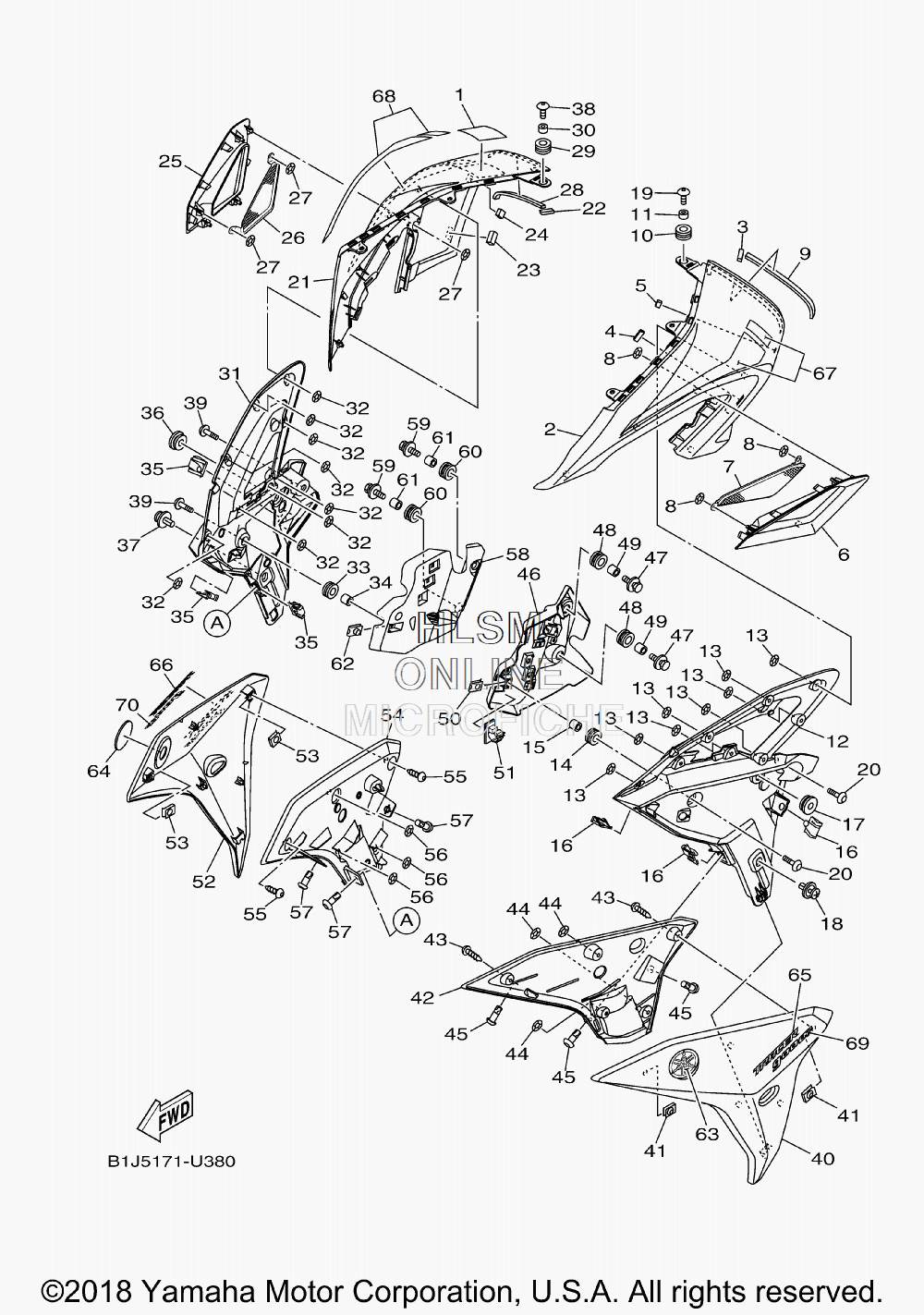

COWLING для Yamaha TRACER 900 CT - 2019 года выпуска
-
№АртикулНазвание
-
129P-2816R-00-00 LABEL, WARNING GENERAL INFO.LABEL, WARNING GENERAL INFO.
-
2B5C-28219-00-P2 COVER 1 (SMX - BLACK METALLIC X)COVER 1 (SMX - BLACK METALLIC X)
-
313S-28415-00-00 DAMPER 1DAMPER 1
-
45B6-23445-00-00 DAMPERDAMPER
-
54D9-24763-00-00 PAD, SEAT 2PAD, SEAT 2
-
6B5C-28396-00-P0 PLATE 1 (MBL2 - MAT BLACK FOR SMX - BLACK METALLIC X)PLATE 1 (MBL2 - MAT BLACK FOR SMX - BLACK METALLIC X)
-
7B5C-2837N-00-00 GRILL, AIR INTAKE 1GRILL, AIR INTAKE 1
-
890183-05M02-00 NUT, SPRINGNUT, SPRING
-
92C0-2174X-00-00 DAMPERDAMPER
-
1090480-13018-00 GROMMETGROMMET
-
1190387-0611W-00 COLLARCOLLAR
-
12B5C-2836K-00-00 PANEL, INNER 1PANEL, INNER 1
-
1390183-05M02-00 NUT, SPRINGNUT, SPRING
-
1490480-13018-00 GROMMETGROMMET
-
1590387-0611W-00 COLLARCOLLAR
-
165PW-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
1790480-13398-00 GROMMETGROMMET
-
1890269-07076-00 RIVETRIVET
-
1990111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2090111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
21B5C-28229-00-P2 COVER 2 (SMX - BLACK METALLIC X)COVER 2 (SMX - BLACK METALLIC X)
-
2213S-28415-00-00 DAMPER 1DAMPER 1
-
235B6-23445-00-00 DAMPERDAMPER
-
244D9-24763-00-00 PAD, SEAT 2PAD, SEAT 2
-
25B5C-28397-00-P0 PLATE 2 (MBL2 - MAT BLACK FOR SMX - BLACK METALLIC X)PLATE 2 (MBL2 - MAT BLACK FOR SMX - BLACK METALLIC X)
-
26B5C-2837R-00-00 GRILL, AIR INTAKE 2GRILL, AIR INTAKE 2
-
2790183-05M02-00 NUT, SPRINGNUT, SPRING
-
282C0-2174X-00-00 DAMPERDAMPER
-
2990480-13018-00 GROMMETGROMMET
-
3090387-0611W-00 COLLARCOLLAR
-
31B5C-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
3290183-05M02-00 NUT, SPRINGNUT, SPRING
-
3390480-13018-00 GROMMETGROMMET
-
3490387-0611W-00 COLLARCOLLAR
-
355PW-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
3690480-13398-00 GROMMETGROMMET
-
3790269-07076-00 RIVETRIVET
-
3890111-05007-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3990111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
40B5C-2835U-00-P2 PANEL 1 (BWM2 - BLUISH WHITE FOR SMX - BLACK METALLIC X)PANEL 1 (BWM2 - BLUISH WHITE FOR SMX - BLACK METALLIC X)
-
4190183-05042-00 NUT, SPRINGNUT, SPRING
-
42B5C-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
4390167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
4490183-05M02-00 NUT, SPRINGNUT, SPRING
-
4514B-28386-00-00 HEADHEAD
-
462PP-2836H-00-00 BRACKET 5BRACKET 5
-
4790119-06267-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4890480-14003-00 GROMMETGROMMET
-
4990387-06057-00 COLLARCOLLAR
-
5090183-05076-00 NUT, SPRINGNUT, SPRING
-
5190464-25160-00 CLAMPCLAMP
-
52B5C-2835V-00-P2 PANEL 2 (BWM2 - BLUISH WHITE FOR SMX - BLACK METALLIC X)PANEL 2 (BWM2 - BLUISH WHITE FOR SMX - BLACK METALLIC X)
-
5390183-05042-00 NUT, SPRINGNUT, SPRING
-
54B5C-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
5590167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
5690183-05M02-00 NUT, SPRINGNUT, SPRING
-
5714B-28386-00-00 HEADHEAD
-
582PP-2836J-00-00 BRACKET 6BRACKET 6
-
5990119-06267-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
6090480-14003-00 GROMMETGROMMET
-
6190387-06057-00 COLLARCOLLAR
-
6290183-05076-00 NUT, SPRINGNUT, SPRING
-
631RC-2413B-01-00 EMBLEMEMBLEM
-
641RC-2413B-01-00 EMBLEMEMBLEM
-
652PP-2839B-11-00 EMBLEM 3DEMBLEM 3D
-
662PP-2839B-11-00 EMBLEM 3DEMBLEM 3D
-
67B5C-28391-00-00 GRAPHIC 1GRAPHIC 1
-
68B5C-28392-00-00 GRAPHIC 2GRAPHIC 2
-
69B1J-28315-00-00 EMBLEMEMBLEM
-
70B1J-28315-00-00 EMBLEMEMBLEM
