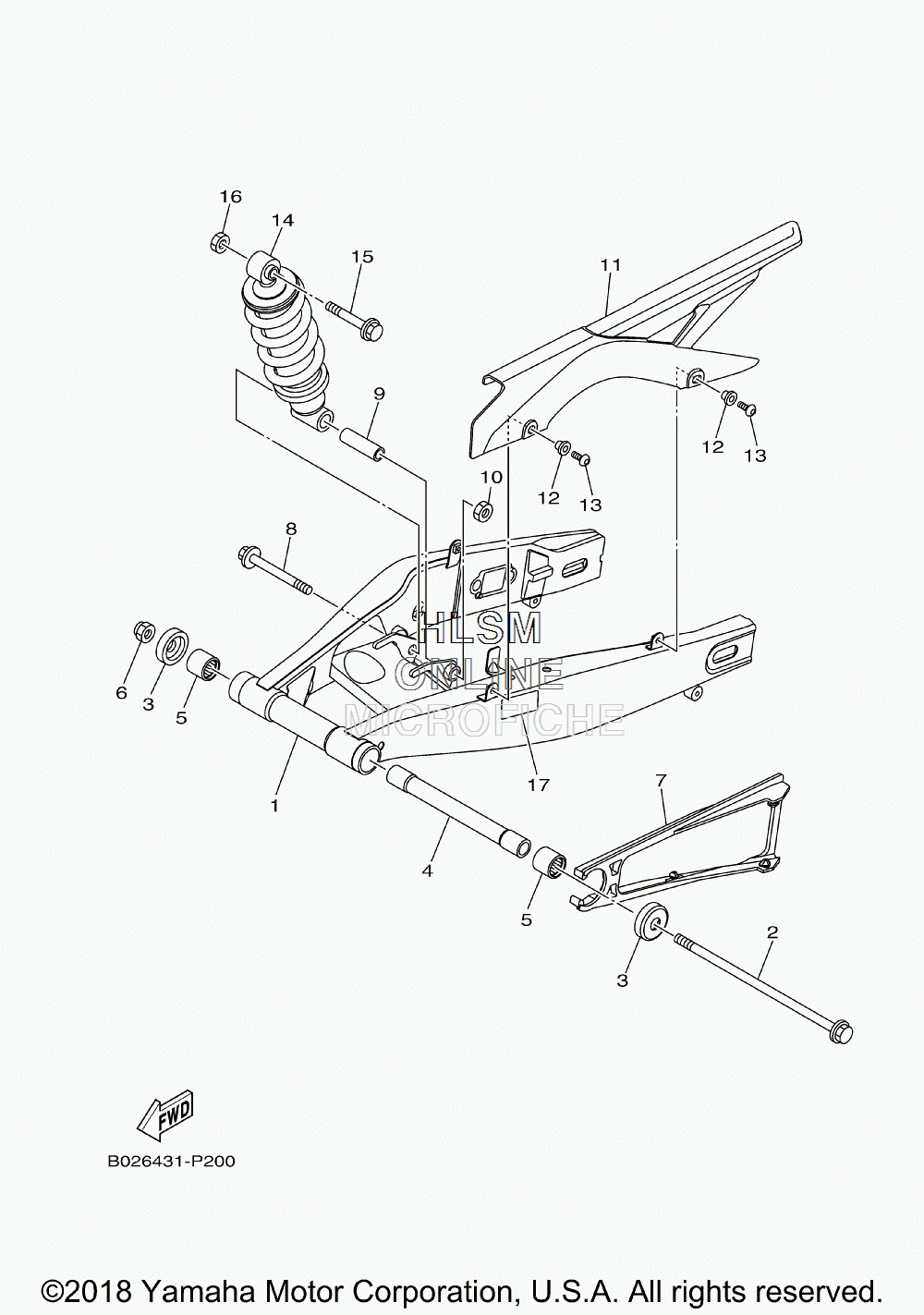

SUSPENSION - REAR ARM для Yamaha YZFR3 - 2018 года выпуска`
-
№АртикулНазвание
-
11WD-F2110-00-00 REAR ARM COMP.REAR ARM COMP.
-
21WD-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
31WD-F2129-00-00 COVER, THRUST 2COVER, THRUST 2
-
41WD-F2184-00-00 BUSHBUSH
-
593320-32403-00 BEARINGBEARING
-
695602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
71WD-F2151-00-00 SEAL, GUARDSEAL, GUARD
-
890105-12309-00 BOLT, FLANGEBOLT, FLANGE
-
91WD-F248B-00-00 COLLAR, ROD 1COLLAR, ROD 1
-
1095602-12100-00 NUT, UNUT, U
-
111WD-F2311-00-00 CASE, CHAINCASE, CHAIN
-
1290387-06242-00 COLLARCOLLAR
-
1290387-06242-00 COLLARCOLLAR
-
1390111-06119-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
141WD-F2210-00-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1590105-12093-00 BOLT, FLANGEBOLT, FLANGE
-
1695602-12100-00 NUT, UNUT, U
-
172MS-F1668-20-00 LABEL, TIRELABEL, TIRE
