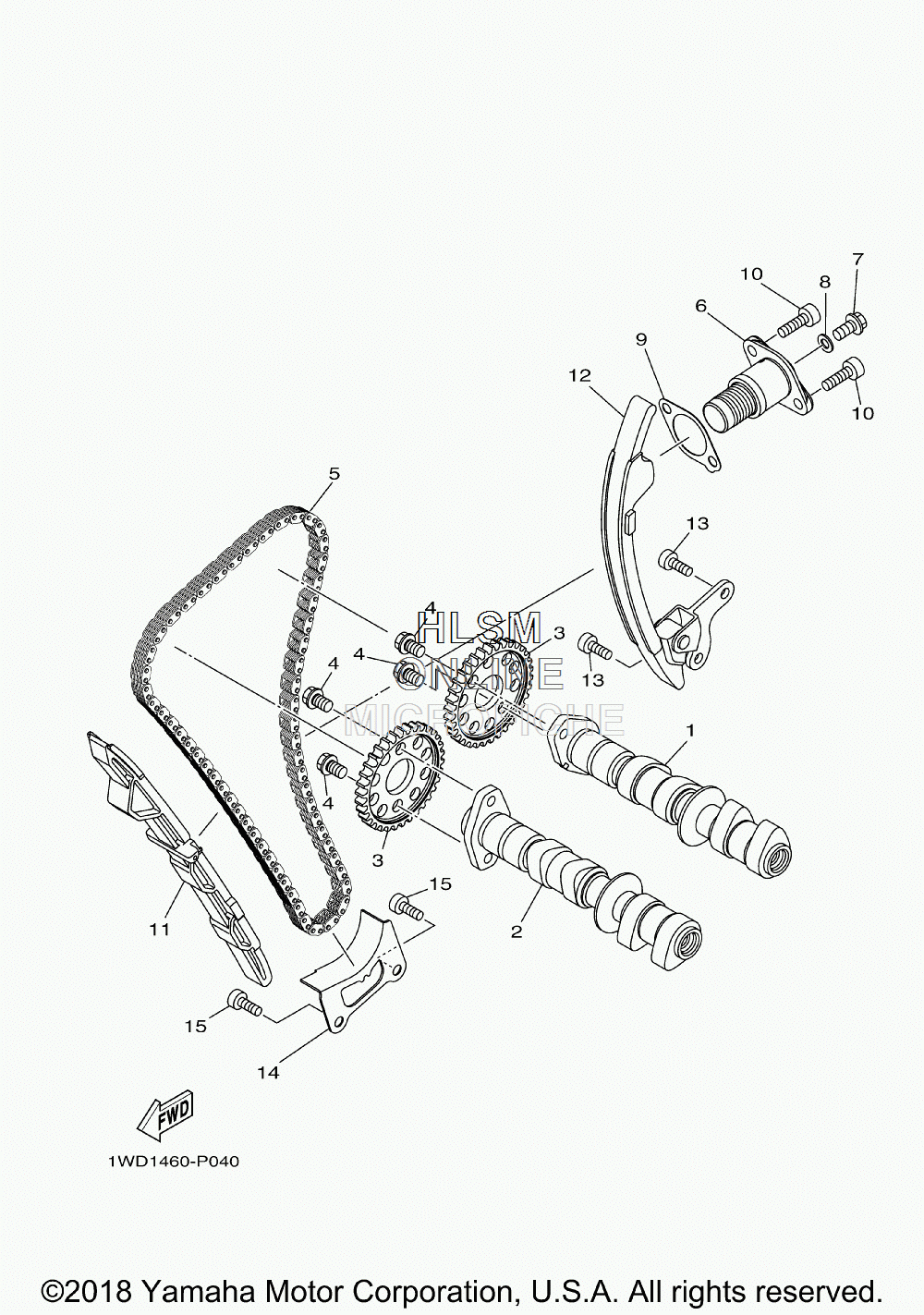

CAMSHAFT W/ CHAIN для Yamaha YZFR3 - 2018 года выпуска`
-
№АртикулНазвание
-
12MS-E2170-01-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
22MS-E2180-01-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
31WD-E2176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07800-00 BOLT, FLANGEBOLT, FLANGE
-
594591-61118-00 CHAINCHAIN
-
62MS-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
795022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
890430-06014-00 GASKETGASKET
-
91WD-E2213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1091312-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
111WD-E2251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
122MS-E2252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1390110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
141WD-E2256-00-00 COVER, CHAINCOVER, CHAIN
-
1590110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
