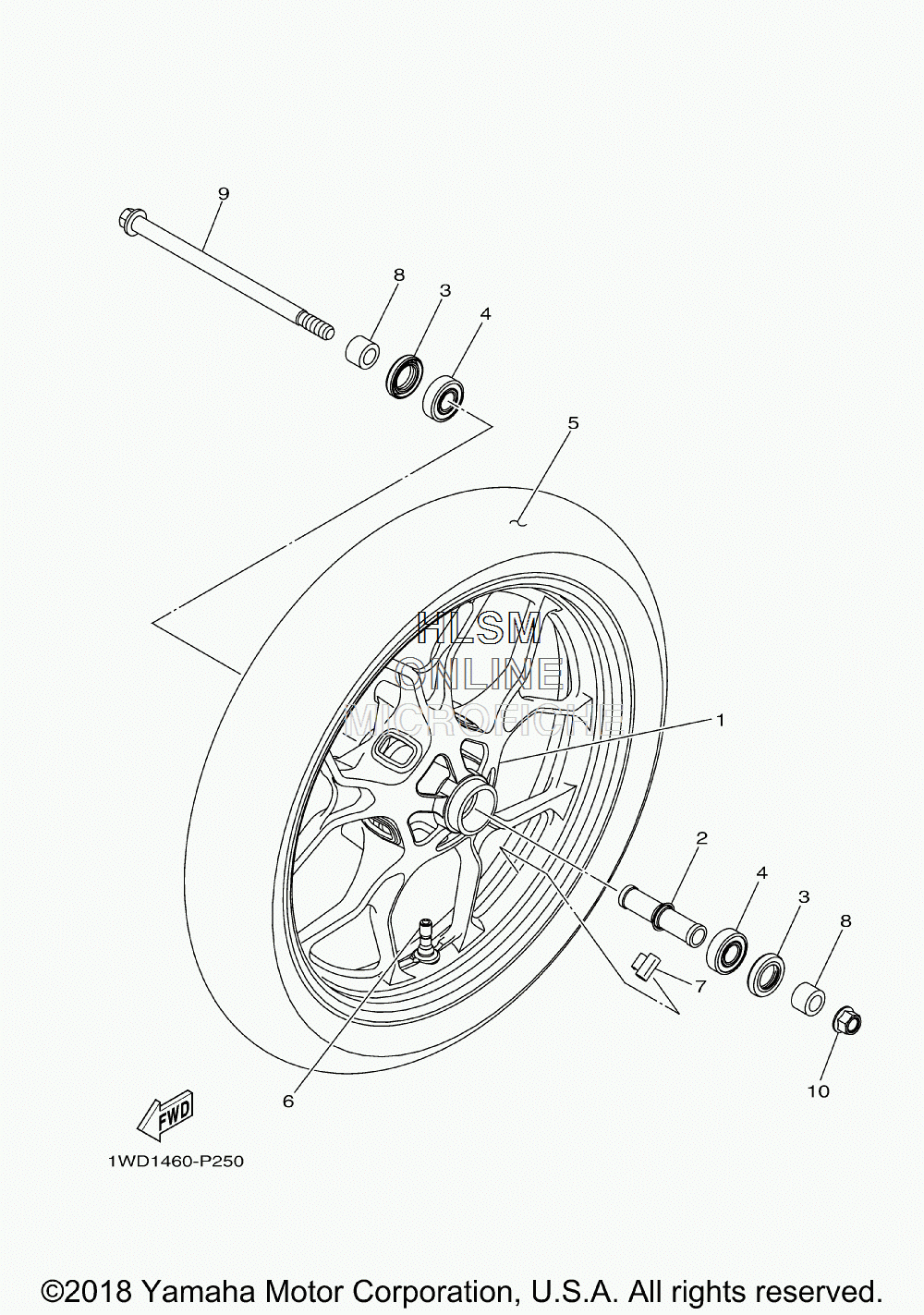

WHEEL - FRONT для Yamaha YZFR3 - 2018 года выпуска`
-
№АртикулНазвание
-
11WD-F5168-01-P0 CAST WHEEL, FRONT (DPBM15 - PURPLISH BLUE FOR DPBMC - BLUE)CAST WHEEL, FRONT (DPBM15 - PURPLISH BLUE FOR DPBMC - BLUE)
-
11WD-F5168-01-0X CAST WHEEL, FRONT (LGB - GLOSS BLACK / DRSC - FOR SMX - BLACK)CAST WHEEL, FRONT (LGB - GLOSS BLACK / DRSC - FOR SMX - BLACK)
-
21WD-F510C-00-00 COLLAR ASSY.COLLAR ASSY.
-
393106-26815-00 OIL SEALOIL SEAL
-
493306-302X4-00 BEARINGBEARING
-
693900-00828-00 VALVE, RIMVALVE, RIM
-
75MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
75MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
75MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
81PA-F5386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
91WD-25181-00-00 AXLE, WHEELAXLE, WHEEL
-
1095602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
