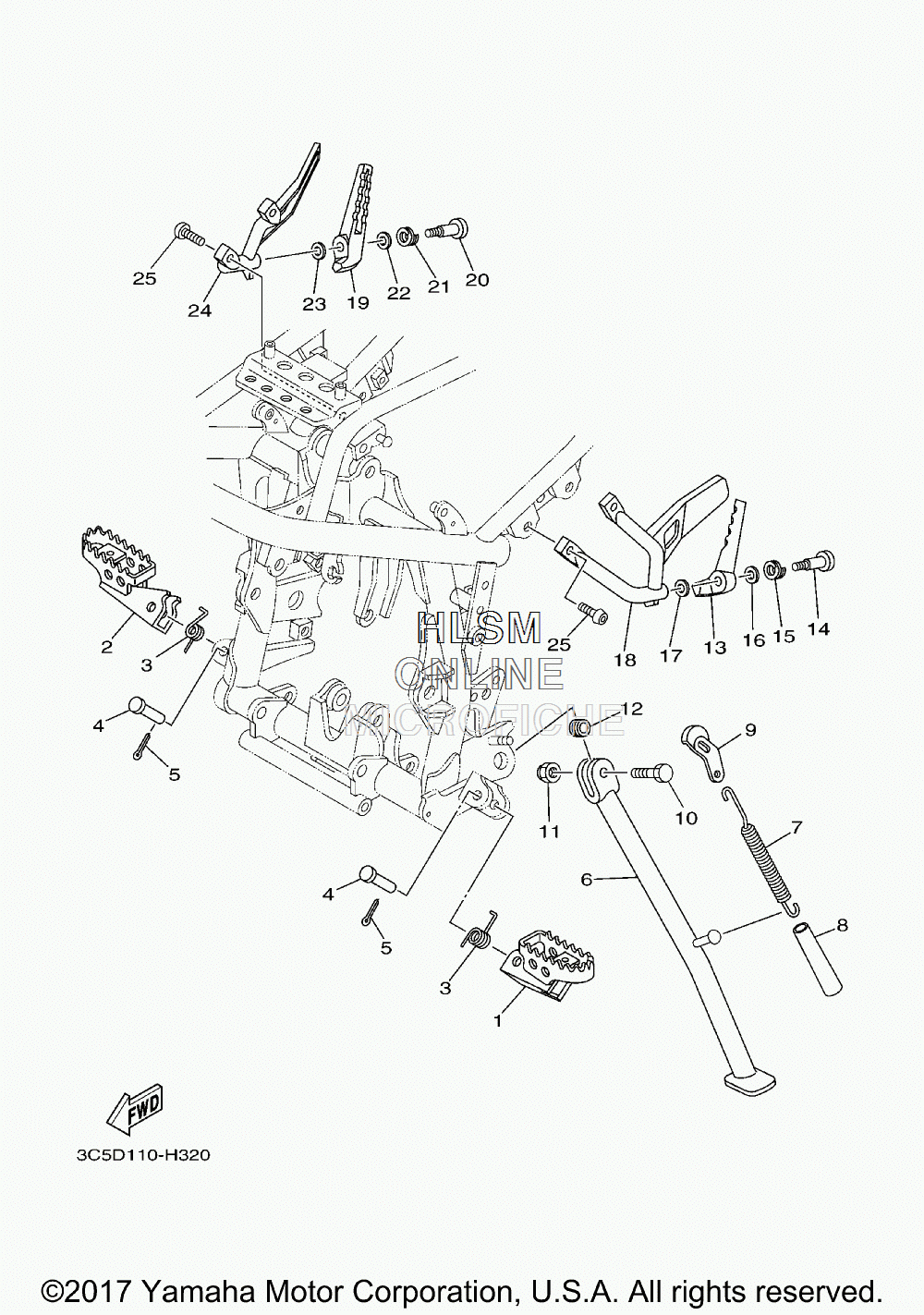

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha XT 250 - 2018 года выпуска`
-
№АртикулНазвание
-
13LD-27411-10-00 FOOTREST 1FOOTREST 1
-
23LD-27421-10-00 FOOTREST 2FOOTREST 2
-
390508-20583-00 SPRING, TORSIONSPRING, TORSION
-
490240-10101-00 PIN, CLEVISPIN, CLEVIS
-
591401-25015-00 PIN, COTTERPIN, COTTER
-
63C5-27311-10-00 STAND, SIDESTAND, SIDE
-
790506-35473-00 SPRING, TENSIONSPRING, TENSION
-
890445-22327-00 HOSE (L70)HOSE (L70)
-
95XT-27315-01-00 LINK, SIDE STANDLINK, SIDE STAND
-
1090101-10013-00 BOLTBOLT
-
1190185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1290387-10003-00 COLLARCOLLAR
-
133XP-27431-02-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
1490109-085F5-00 BOLTBOLT
-
1590504-18005-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1692907-10600-00 WASHER, PLATEWASHER, PLATE
-
1790201-083P5-00 WASHER, PLATEWASHER, PLATE
-
183C5-27432-00-00 BRACKET 1BRACKET 1
-
193XP-27441-02-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
2090109-085F5-00 BOLTBOLT
-
2190504-18005-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2292907-10600-00 WASHER, PLATEWASHER, PLATE
-
2390201-083P5-00 WASHER, PLATEWASHER, PLATE
-
243C5-27442-00-00 BRACKET 2BRACKET 2
-
2592012-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
