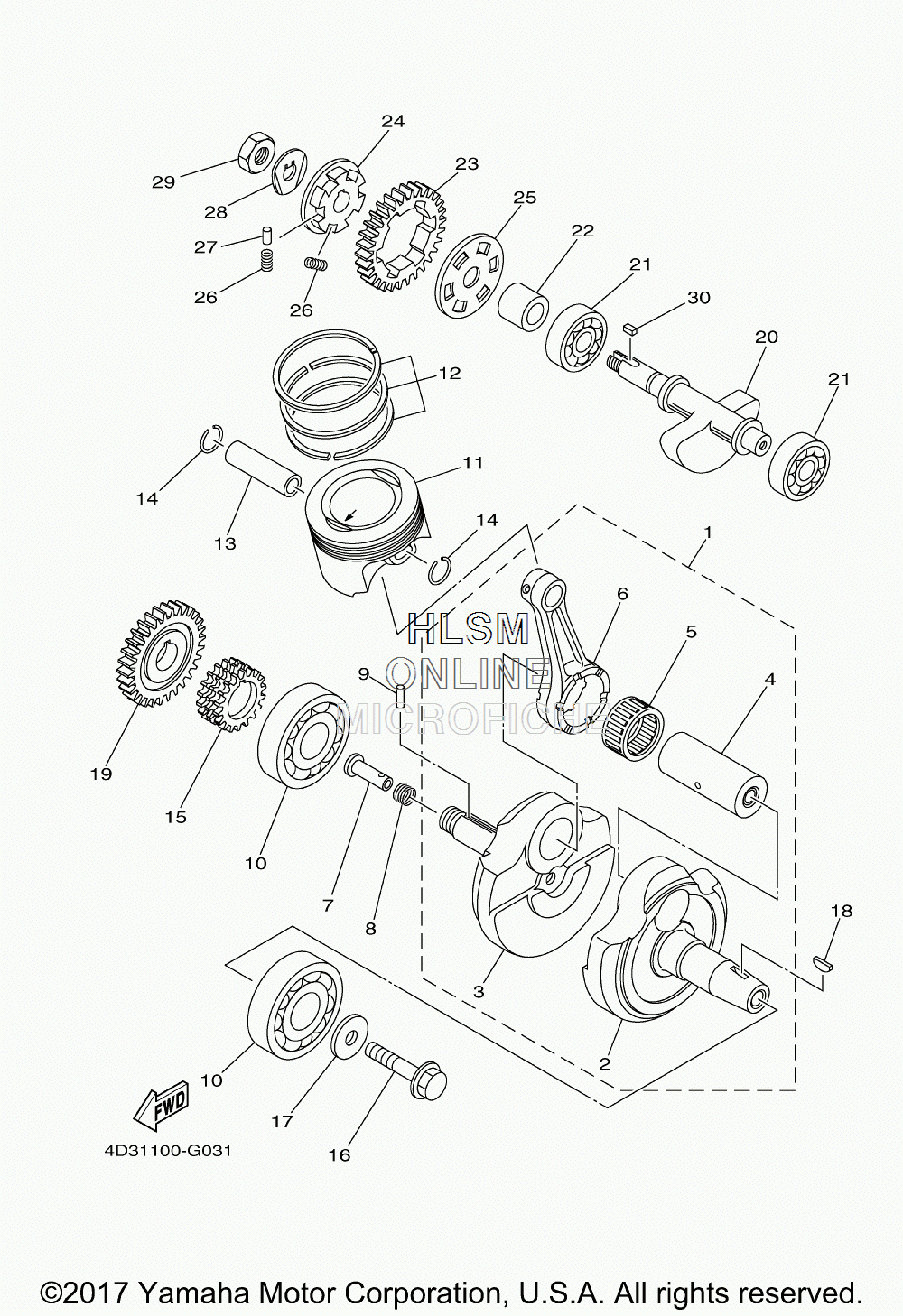

CRANKSHAFT - PISTON для Yamaha XT 250 - 2018 года выпуска`
-
№АртикулНазвание
-
14D3-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
24D3-11412-00-00 ...CRANK 1...CRANK 1
-
34D3-11422-00-00 ...CRANK 2...CRANK 2
-
41S4-11681-00-00 ...PIN, CRANK 1...PIN, CRANK 1
-
593310-63239-00 ...BEARING...BEARING
-
61S4-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
790240-07105-00 PIN, CLEVISPIN, CLEVIS
-
890501-07629-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
993602-13177-00 PIN, DOWELPIN, DOWEL
-
1093306-37814-00 BEARINGBEARING
-
111S4-11631-10-A0 PISTON (STD)PISTON (STD)
-
124XV-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
134XV-11633-00-00 PIN, PISTONPIN, PISTON
-
1490468-12069-00 CLIPCLIP
-
155BP-11549-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
1690105-10430-00 BOLT, FLANGEBOLT, FLANGE
-
1790201-102R1-00 WASHER, PLATEWASHER, PLATE
-
1890280-05048-00 KEY, WOODRUFFKEY, WOODRUFF
-
191S4-11536-10-00 GEAR, DRIVEGEAR, DRIVE
-
205XT-11454-00-00 WEIGHT 1WEIGHT 1
-
2193306-30214-00 BEARINGBEARING
-
225XT-11478-00-00 COLLARCOLLAR
-
231S4-11531-10-00 GEAR, BALANCE WEIGHTGEAR, BALANCE WEIGHT
-
245XT-11496-00-00 BOSS, BUFFERBOSS, BUFFER
-
255XT-11533-00-00 PLATE, ABSORBERPLATE, ABSORBER
-
2690501-22721-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2793605-10090-00 PIN, DOWELPIN, DOWEL
-
2890215-12272-00 WASHER, LOCKWASHER, LOCK
-
2990170-12370-00 NUTNUT
-
3090282-05013-00 KEY, STRAIGHTKEY, STRAIGHT
