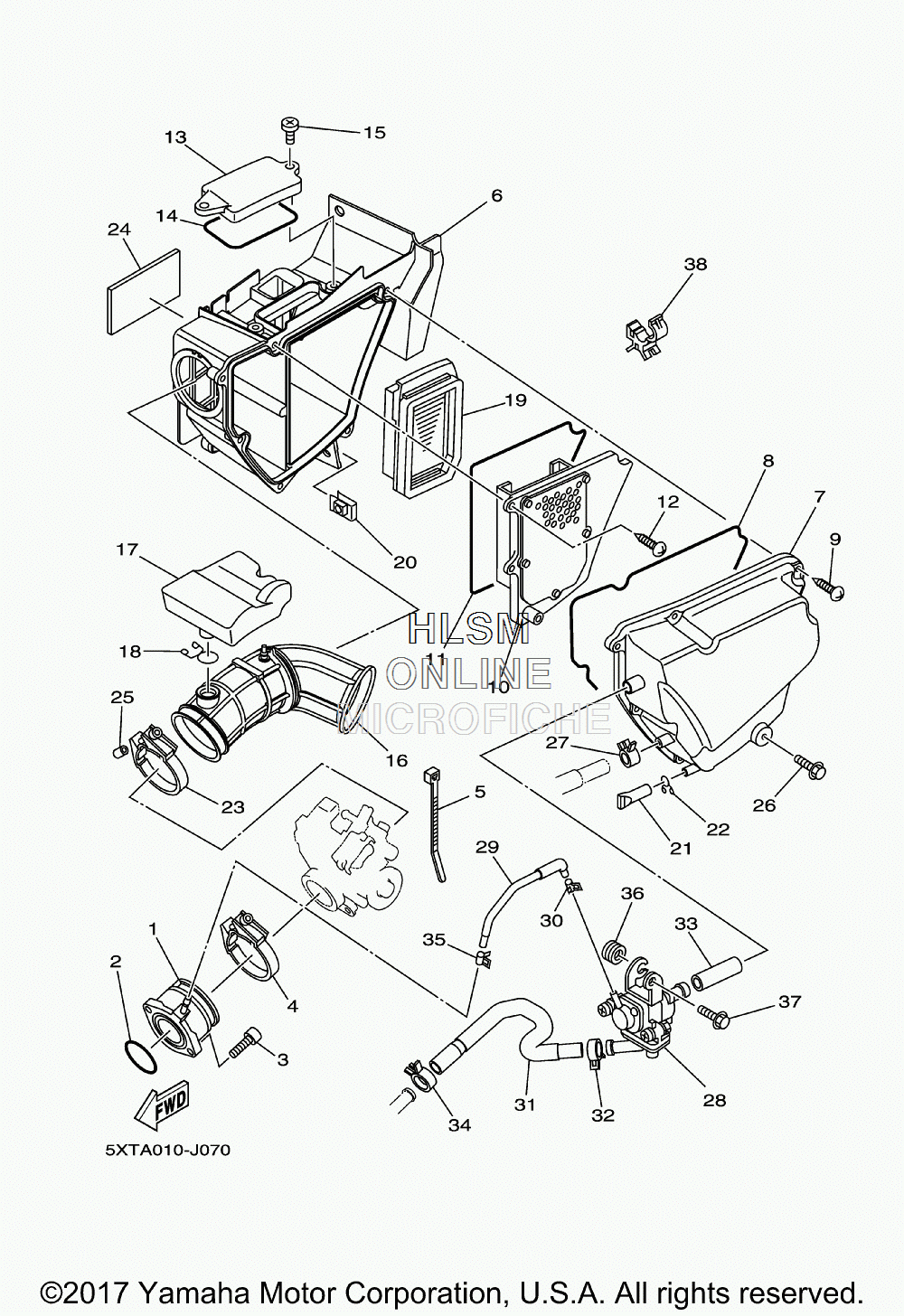

AIR CLEANER W/ INTAKE для Yamaha XT 250 - 2018 года выпуска`
-
№АртикулНазвание
-
15XT-13585-00-00 MANIFOLDMANIFOLD
-
293210-39700-00 O-RINGO-RING
-
391312-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490450-55003-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
590465-10098-00 CLAMPCLAMP
-
65XT-14401-20-00 AIR CLEANER CASE ASSYAIR CLEANER CASE ASSY
-
75XT-14421-01-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
85XT-14462-00-00 SEALSEAL
-
997707-50025-00 SCREW, TAPPINGSCREW, TAPPING
-
105XT-14472-00-00 PLATE, ELEMENTPLATE, ELEMENT
-
115XT-14452-00-00 SEALSEAL
-
1297707-50520-00 SCREW, TAPPINGSCREW, TAPPING
-
135XT-14412-00-00 CAP, CLEANER CASE 1CAP, CLEANER CASE 1
-
145XT-14457-00-00 SEALSEAL
-
1598907-06012-00 SCREW, BINDSCREW, BIND
-
165XT-14453-10-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
175XT-13581-10-00 CHAMBER, AIRCHAMBER, AIR
-
1890467-18196-00 CLIPCLIP
-
195XT-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
2090183-06023-00 NUT, SPRINGNUT, SPRING
-
215XT-1443E-00-00 PIPE, DRAINPIPE, DRAIN
-
2290467-11106-00 CLIPCLIP
-
2390450-46001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
245EJ-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
2590445-05005-00 HOSEHOSE
-
2690105-06057-00 BOLT, FLANGEBOLT, FLANGE
-
2790467-12053-00 CLIPCLIP
-
285XT-14803-20-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
295XT-13542-11-00 HOSE, VACUUM SENSING 1HOSE, VACUUM SENSING 1
-
3090467-08092-00 CLIPCLIP
-
315XT-14881-20-00 HOSE, BEND 1HOSE, BEND 1
-
3290467-16063-00 CLIPCLIP
-
335C1-14882-01-00 HOSE, BEND 2HOSE, BEND 2
-
3490467-17089-00 CLIPCLIP
-
3590467-08092-00 CLIPCLIP
-
3690480-10334-00 GROMMETGROMMET
-
3795802-06010-00 BOLT, FLANGEBOLT, FLANGE
-
3890464-20191-00 CLAMPCLAMP
