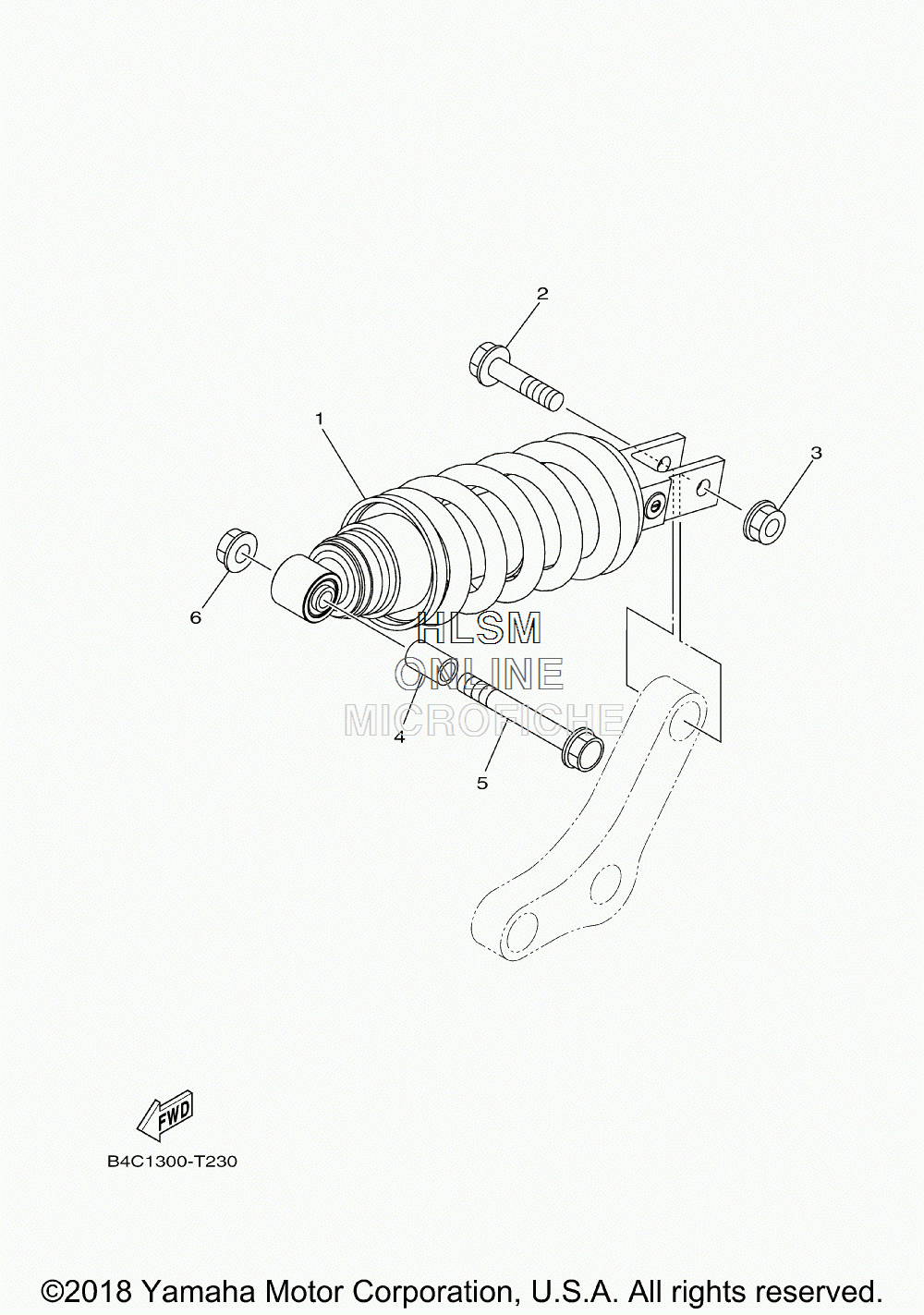

SUSPENSION - REAR SHOCK ABSORBER для Yamaha MT07 - 2018 года выпуска`
-
№АртикулНазвание
-
1B4C-22210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
290105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
395602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
490387-1012A-00 COLLARCOLLAR
-
590105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
695602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
