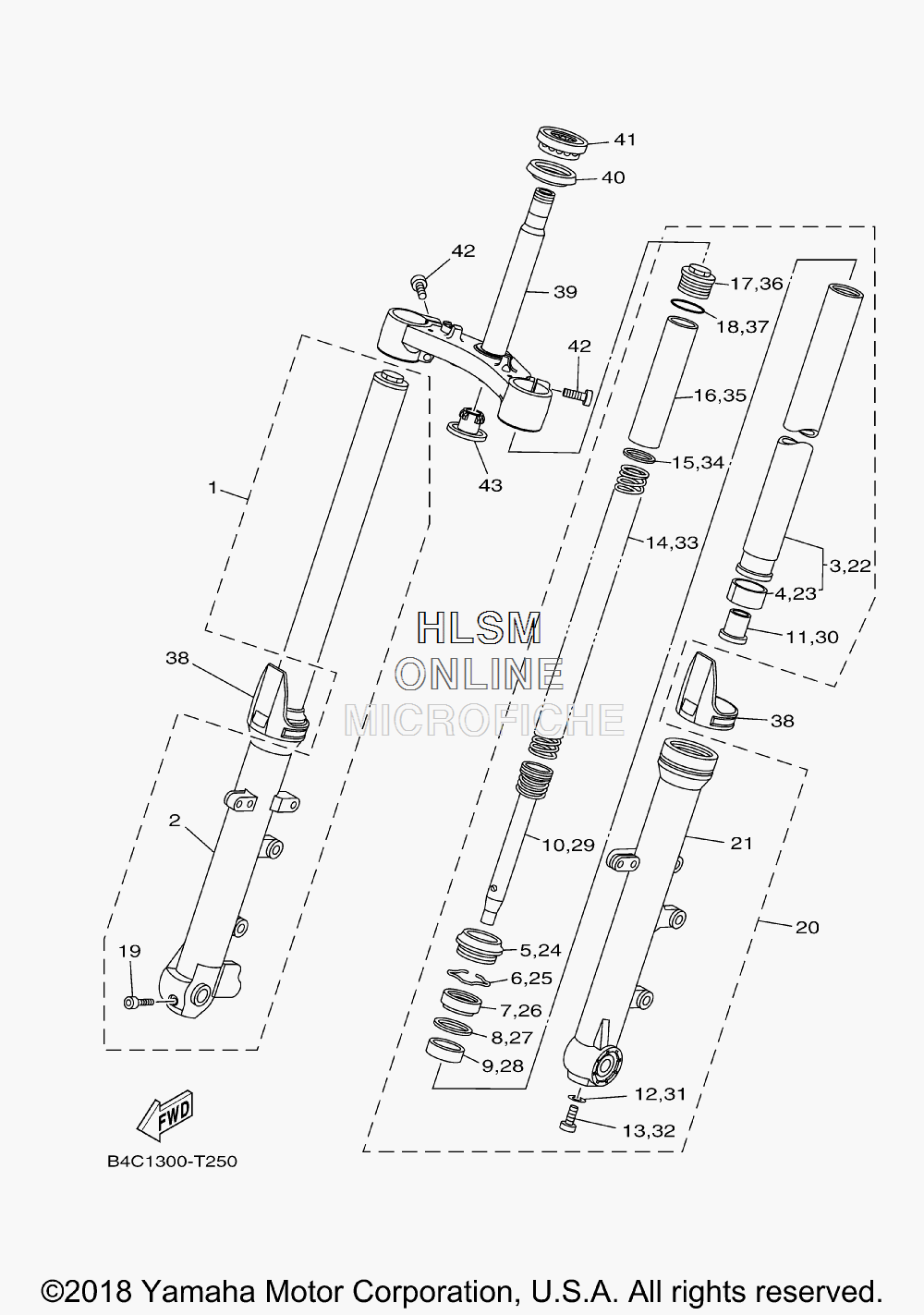

SUSPENSION - FRONT FORK для Yamaha MT07 - 2018 года выпуска`
-
№АртикулНазвание
-
1B4C-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
21XB-23136-01-00 ...TUBE, OUTER 2...TUBE, OUTER 2
-
31WS-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
45BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
54EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
626H-23156-00-00 ...RING, SNAP...RING, SNAP
-
74EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
836Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
94FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
10B4C-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
114YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
12509-23158-L0-00 ...GASKET...GASKET
-
13278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
14BC6-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
153EN-23149-50-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
163FW-23118-00-00 ...SPACER...SPACER
-
171D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1843F-23188-10-00 ...O-RING...O-RING
-
1991314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
20B4C-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
211WS-23126-01-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
221WS-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
235BN-23171-00-00 ......PISTON, FRONT FORK......PISTON, FRONT FORK
-
244EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
2526H-23156-00-00 ...RING, SNAP...RING, SNAP
-
264EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
2736Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
284FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
29B4C-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
304YR-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
31509-23158-L0-00 ...GASKET...GASKET
-
32278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
33BC6-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
343EN-23149-50-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
353FW-23118-00-00 ...SPACER...SPACER
-
361D0-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
3743F-23188-10-00 ...O-RING...O-RING
-
381WS-2331G-00-00 COVERCOVER
-
39B34-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
403FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
4193399-99932-00 BEARINGBEARING
-
4291314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
434KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
