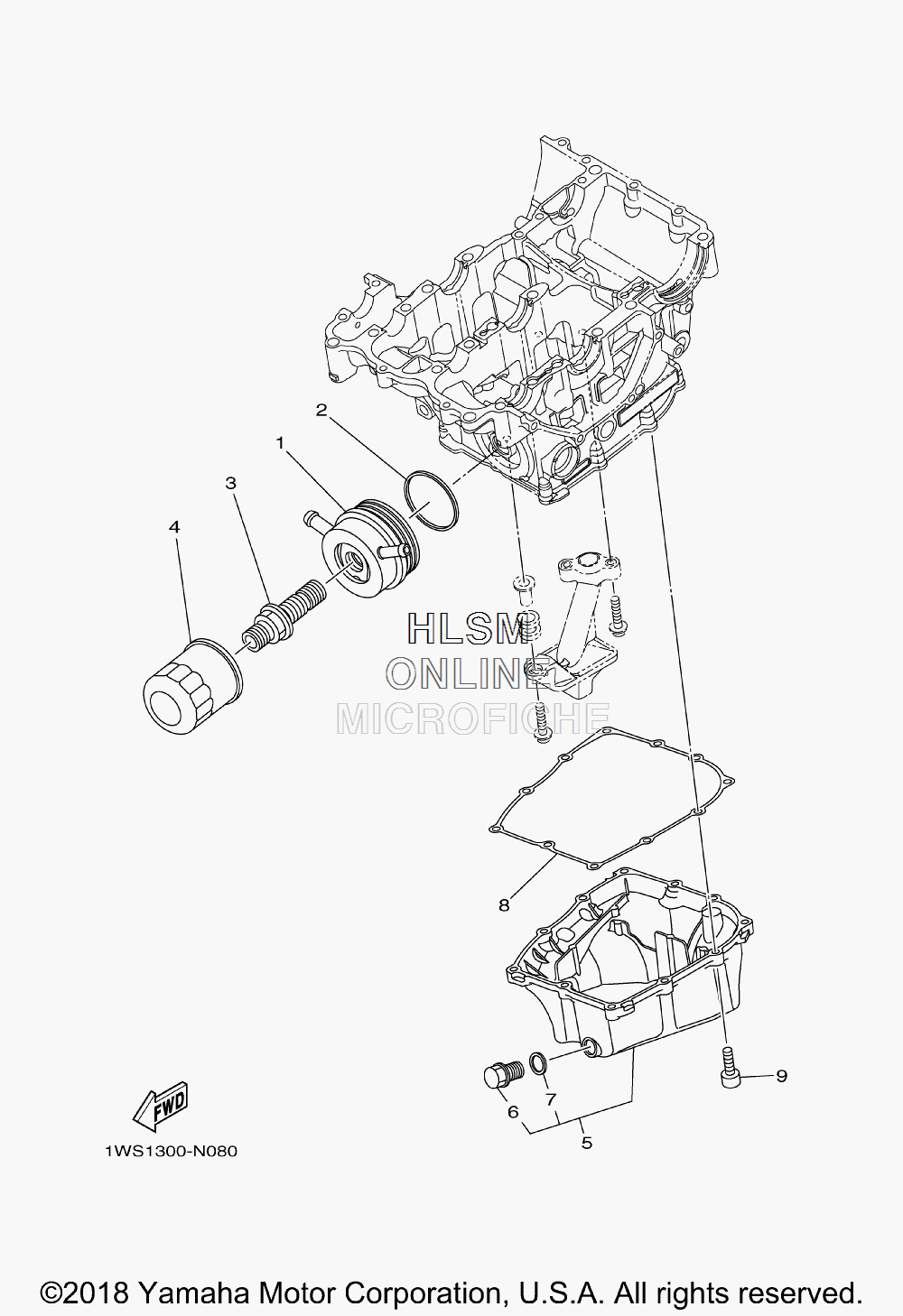

OIL CLEANER для Yamaha MT07 - 2018 года выпуска`
-
№АртикулНазвание
-
11WS-13470-00-00 OIL COOLER ASSYOIL COOLER ASSY
-
21XD-13475-00-00 GASKETGASKET
-
390401-20009-00 BOLT, UNIONBOLT, UNION
-
45GH-13440-60-00 ELEMENT ASSY, OIL CLEANERELEMENT ASSY, OIL CLEANER
-
51WS-13400-00-00 STRAINER COVER ASSYSTRAINER COVER ASSY
-
690340-14132-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
7214-11198-01-00 ...GASKET...GASKET
-
81WS-13414-00-00 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
991312-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
