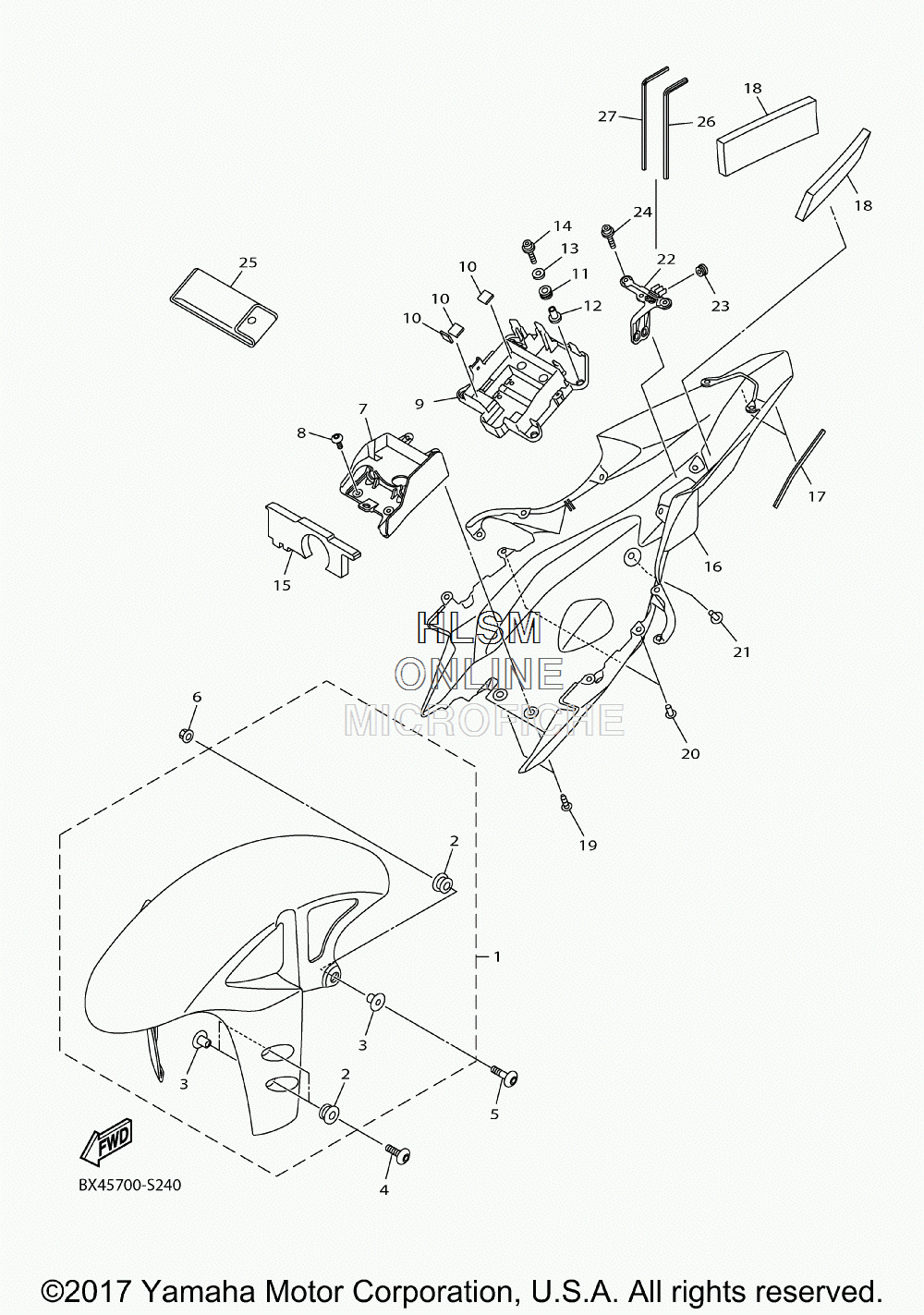

FENDER - FRONT / REAR для Yamaha YZFR1 - 2017 года выпуска
-
№АртикулНазвание
-
114B-Y2151-00-P2 FRONT FENDER ASSY (DPBMC - BLUE METALLIC)FRONT FENDER ASSY (DPBMC - BLUE METALLIC)
-
114B-Y2151-00-P0 FRONT FENDER ASSY (SMX - BLACK METALLIC)FRONT FENDER ASSY (SMX - BLACK METALLIC)
-
290480-12072-00 ...GROMMET...GROMMET
-
390387-065J6-00 ...COLLAR...COLLAR
-
490111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
590111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
695702-06500-00 NUT, FLANGENUT, FLANGE
-
72CR-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
890111-06116-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
92CR-8212C-00-00 BOX, BATTERY 2BOX, BATTERY 2
-
1013S-21649-00-00 DAMPERDAMPER
-
1190480-13018-00 GROMMETGROMMET
-
1290387-073M2-00 COLLARCOLLAR
-
1390201-06088-00 WASHER, PLATEWASHER, PLATE
-
1490110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
152CR-21638-00-00 DAMPER 1DAMPER 1
-
162CR-21611-00-00 FENDER, REARFENDER, REAR
-
173C5-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
1890520-20003-00 DAMPER, PLATEDAMPER, PLATE
-
1990269-06008-00 RIVETRIVET
-
2090269-05005-00 RIVETRIVET
-
2190269-07076-00 RIVETRIVET
-
222CR-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
2390480-10003-00 GROMMETGROMMET
-
2490110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
252CR-28100-00-00 TOOL KITTOOL KIT
-
2623P-28164-00-00 WRENCH, HEXAGON 8WRENCH, HEXAGON 8
-
2714B-28164-00-00 WRENCH, HEXAGON 8WRENCH, HEXAGON 8
