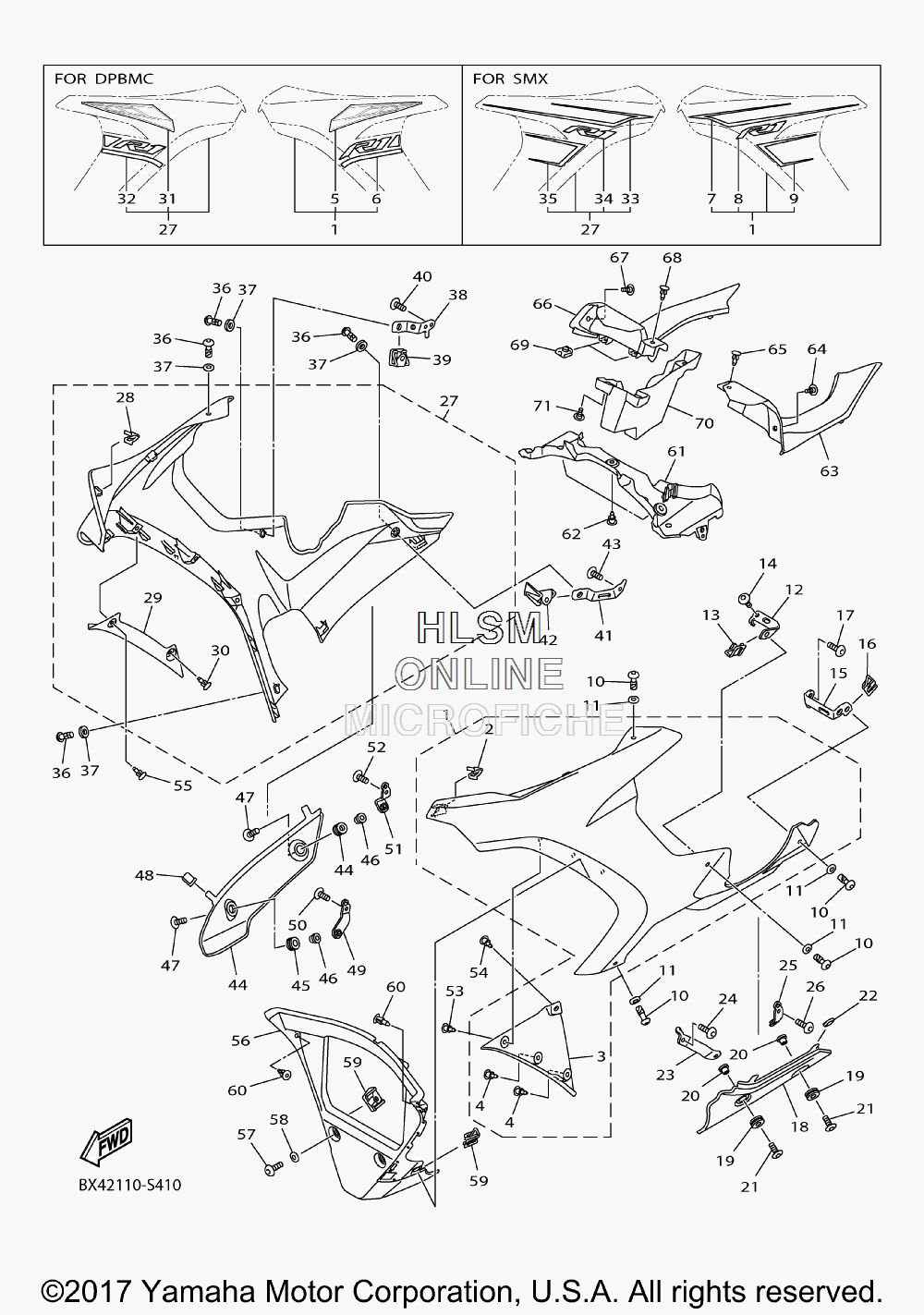

COWLING 2 для Yamaha YZFR1 - 2017 года выпуска
-
№АртикулНазвание
-
12CR-Y283U-80-P4 PANEL ASSEMBLY 1 (DPBMC - BLUE METALLIC)PANEL ASSEMBLY 1 (DPBMC - BLUE METALLIC)
-
12CR-Y283U-A0-P2 PANEL ASSEMBLY 1 (SMX - BLACK METALLIC)PANEL ASSEMBLY 1 (SMX - BLACK METALLIC)
-
290468-040A0-00 ...CLIP...CLIP
-
32CR-2836K-00-00 ...PANEL, INNER 1...PANEL, INNER 1
-
490269-06008-00 ...RIVET...RIVET
-
52CR-2173X-20-00 ...GRAPHIC 7 (DPBMC - BLUE METALLIC)...GRAPHIC 7 (DPBMC - BLUE METALLIC)
-
6BX4-28391-00-00 ...GRAPHIC 1 (DPBMC - BLUE METALLIC)...GRAPHIC 1 (DPBMC - BLUE METALLIC)
-
7BX4-28391-10-00 ...GRAPHIC 1 (SMX - BLACK METALLIC)...GRAPHIC 1 (SMX - BLACK METALLIC)
-
8BX4-2834C-00-00 ...EMBLEM, 1 (SMX - BLACK METALLIC)...EMBLEM, 1 (SMX - BLACK METALLIC)
-
9BX4-28398-00-00 ...GRAPHIC 5 (SMX - BLACK METALLIC)...GRAPHIC 5 (SMX - BLACK METALLIC)
-
102CR-28386-00-00 HEADHEAD
-
118HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
122CR-2833K-00-00 BRACKET 13BRACKET 13
-
132CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1490111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
152CR-2833L-00-00 BRACKET 14BRACKET 14
-
162CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
1790111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
182CR-2834V-00-00 PROTECTOR 1PROTECTOR 1
-
1990480-14477-00 GROMMETGROMMET
-
2090387-06307-00 COLLARCOLLAR
-
2190111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
225PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
232CR-2833R-00-00 BRACKET, 17BRACKET, 17
-
2490111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
252CR-2833T-00-00 BRACKET,18BRACKET,18
-
2690111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
272CR-Y283V-80-P4 PANEL ASSEMBLY 2 (DPBMC - BLUE METALLIC)PANEL ASSEMBLY 2 (DPBMC - BLUE METALLIC)
-
272CR-Y283V-A0-P2 PANEL ASSEMBLY 2 (SMX - BLACK METALLIC)PANEL ASSEMBLY 2 (SMX - BLACK METALLIC)
-
2890468-040A0-00 ...CLIP...CLIP
-
292CR-2836L-00-00 ...PANEL, INNER 2...PANEL, INNER 2
-
3090269-06008-00 ...RIVET...RIVET
-
312CR-2173Y-20-00 ...GRAPHIC 8 (DPBMC - BLUE METALLIC)...GRAPHIC 8 (DPBMC - BLUE METALLIC)
-
32BX4-28392-00-00 ...GRAPHIC 2 (DPBMC - BLUE METALLIC)...GRAPHIC 2 (DPBMC - BLUE METALLIC)
-
33BX4-28392-10-00 ...GRAPHIC 2 (SMX - BLACK METALLIC)...GRAPHIC 2 (SMX - BLACK METALLIC)
-
34BX4-2835C-00-00 ...EMBLEM 2 (SMX - BLACK METALLIC)...EMBLEM 2 (SMX - BLACK METALLIC)
-
35BX4-28399-00-00 ...GRAPHIC 6 (SMX - BLACK METALLIC)...GRAPHIC 6 (SMX - BLACK METALLIC)
-
362CR-28386-00-00 HEADHEAD
-
378HG-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
382CR-2833M-00-00 BRACKET 15BRACKET 15
-
392CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
4090111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
412CR-2833N-00-00 BRACKET 16BRACKET 16
-
422CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
4390111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
442CR-2834W-00-00 PROTECTOR 2PROTECTOR 2
-
4590480-14477-00 GROMMETGROMMET
-
4690387-06307-00 COLLARCOLLAR
-
4790111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
485PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
492CR-2833U-00-00 BRACKET, 19BRACKET, 19
-
5090111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
512CR-2833V-00-00 BRACKET, 20BRACKET, 20
-
5290111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
5390269-06001-00 RIVETRIVET
-
5490269-06008-00 RIVETRIVET
-
5590269-06001-00 RIVETRIVET
-
562CR-2836M-00-P2 PANEL, INNER 3 (SMX - BLACK METALLIC)PANEL, INNER 3 (SMX - BLACK METALLIC)
-
562CR-2836M-00-P4 PANEL, INNER 3 (DPBMC - BLUE METALLIC)PANEL, INNER 3 (DPBMC - BLUE METALLIC)
-
5790149-06302-00 SCREWSCREW
-
5890387-06309-00 COLLARCOLLAR
-
592CR-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
6090269-06008-00 RIVETRIVET
-
612CR-23174-00-00 STAY, HEADLIGHTSTAY, HEADLIGHT
-
6290269-06008-00 RIVETRIVET
-
632CR-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
6490111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6590269-06008-00 RIVETRIVET
-
662CR-2837M-00-00 PANEL, CONSOLE 2PANEL, CONSOLE 2
-
6790111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6890269-06008-00 RIVETRIVET
-
6990183-05076-00 NUT, SPRINGNUT, SPRING
-
702CR-2838K-00-00 BOX 1BOX 1
-
7190111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
