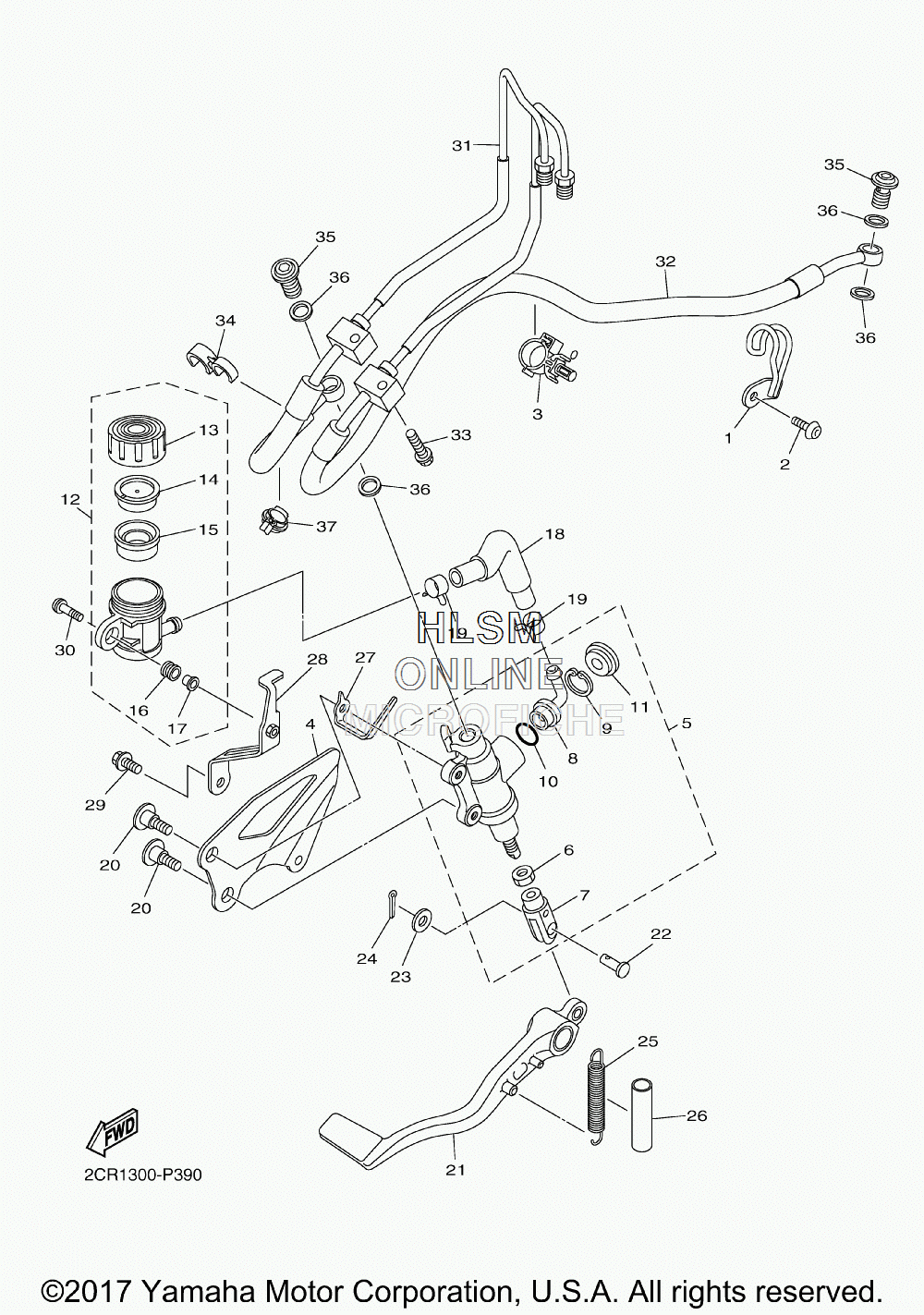

BRAKE - REAR MASTER CYLINDER для Yamaha YZFR1 - 2017 года выпуска
-
№АртикулНазвание
-
12CR-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
292012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
390464-16012-00 CLAMPCLAMP
-
42CR-27446-00-00 PLATE 2PLATE 2
-
52CR-2583V-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
695307-08700-00 ...NUT...NUT
-
74XV-27222-01-00 ...JOINT...JOINT
-
84ML-2582A-50-00 ...JOINT...JOINT
-
92VN-25866-00-00 ...CIRCLIP...CIRCLIP
-
1093210-15620-00 ...O-RING...O-RING
-
113FV-2589A-00-00 ...COVER, DUST...COVER, DUST
-
122CR-25804-50-00 RESERVE TANK ASSYRESERVE TANK ASSY
-
132CR-25852-50-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
143GK-25855-50-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
153GK-25854-50-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
162C0-26326-00-00 ...GROMMET...GROMMET
-
1790387-05028-00 ...COLLAR...COLLAR
-
182CR-25895-50-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1990467-12085-00 CLIPCLIP
-
2090109-066F0-00 BOLTBOLT
-
212CR-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
2291702-06018-00 PIN, CLEVISPIN, CLEVIS
-
2392907-06200-00 WASHERWASHER
-
2491402-16012-00 PIN, COTTERPIN, COTTER
-
2590506-20193-00 SPRING, TENSIONSPRING, TENSION
-
2690446-15386-00 HOSEHOSE
-
272CR-27131-00-00 TUBE, STAY 1TUBE, STAY 1
-
282CR-21228-00-00 BRACKET, RESERVE TANKBRACKET, RESERVE TANK
-
2990109-060E9-00 BOLTBOLT
-
3090111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
312CR-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
322CR-2581K-00-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
3395027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
3490464-13M34-00 CLAMPCLAMP
-
3590401-10172-00 BOLT, UNIONBOLT, UNION
-
3690430-10005-00 GASKETGASKET
-
3790464-12013-00 CLAMPCLAMP
