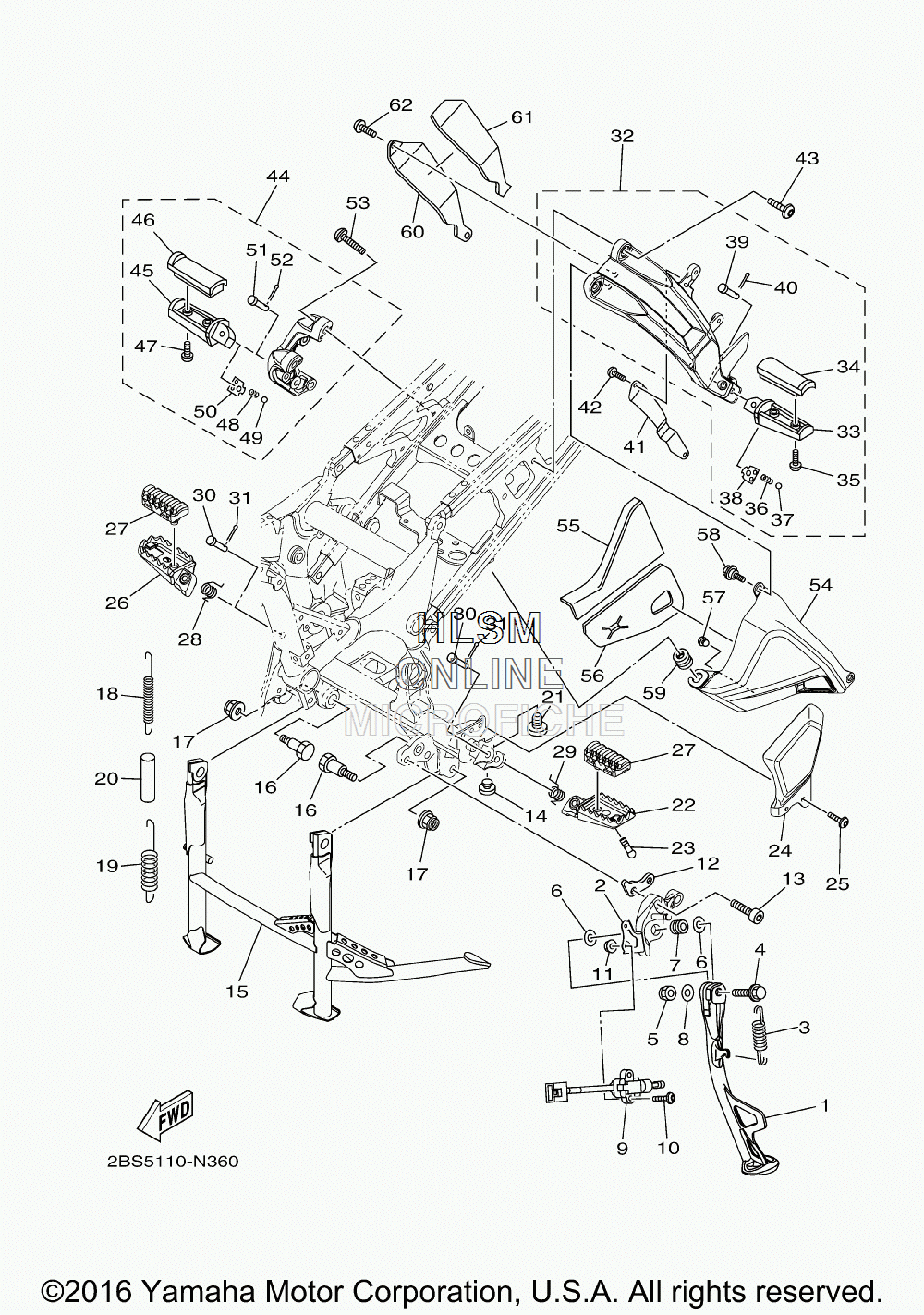

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha SUPER TENERE - 2017 года выпуска
-
№АртикулНазвание
-
12BS-27311-00-00 STAND, SIDESTAND, SIDE
-
223P-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
323P-27316-00-00 SPRING, SIDE STANDSPRING, SIDE STAND
-
490105-102A6-00 BOLT, FLANGEBOLT, FLANGE
-
590185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690201-10051-00 WASHER, PLATEWASHER, PLATE
-
790387-10020-00 COLLARCOLLAR
-
890201-101J1-00 WASHER, PLATEWASHER, PLATE
-
923P-82566-60-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
1092017-05020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1195607-05200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
1223P-27322-00-00 WASHERWASHER
-
1390110-10010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
14128-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
1523P-27111-00-00 STAND, MAINSTAND, MAIN
-
1690109-10057-00 BOLTBOLT
-
1795602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
1823P-27116-00-00 SPRING, MAIN STANDSPRING, MAIN STAND
-
1923P-27116-10-00 SPRING, MAIN STANDSPRING, MAIN STAND
-
2090445-19003-00 HOSEHOSE
-
2123P-27114-00-00 STOPPER, MAIN STANDSTOPPER, MAIN STAND
-
2223P-27451-00-00 FOOTRESTFOOTREST
-
2390109-08174-00 BOLTBOLT
-
2423P-27445-10-00 PLATE 1PLATE 1
-
2592012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2623P-27461-00-00 FOOTRESTFOOTREST
-
2723P-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2890508-20051-00 SPRING, TORSIONSPRING, TORSION
-
2990508-20041-00 SPRING, TORSIONSPRING, TORSION
-
3091701-08040-00 PINPIN
-
3191401-25015-00 PIN, COTTERPIN, COTTER
-
3223P-27430-10-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
335RT-27431-00-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
344D9-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
3590157-05079-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
3690501-12743-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
3793501-04011-00 ...BALL...BALL
-
385VX-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
3991702-08040-00 ...PIN, CLEVIS...PIN, CLEVIS
-
4091401-25015-00 ...PIN, COTTER...PIN, COTTER
-
4123P-27412-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
4292012-05008-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4390109-085G6-00 BOLTBOLT
-
4423P-27440-10-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
455RT-27441-00-00 ...FOOTREST, REAR 2...FOOTREST, REAR 2
-
464D9-27413-00-00 ...COVER, FOOTREST...COVER, FOOTREST
-
4790157-05079-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
4890501-12743-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
4993501-04011-00 ...BALL...BALL
-
505VX-27437-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
5191702-08040-00 ...PIN, CLEVIS...PIN, CLEVIS
-
5291401-25015-00 ...PIN, COTTER...PIN, COTTER
-
5390109-085G6-00 BOLTBOLT
-
5423P-27491-00-00 PROTECTORPROTECTOR
-
5523P-2749A-00-00 SEAT 3SEAT 3
-
5623P-2749B-00-00 SEAT 4SEAT 4
-
571J7-21717-00-00 DAMPERDAMPER
-
5890109-06264-00 BOLTBOLT
-
5990480-12325-00 GROMMETGROMMET
-
602BS-27422-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
612BS-2175P-00-00 SEAT 4SEAT 4
-
6292012-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
