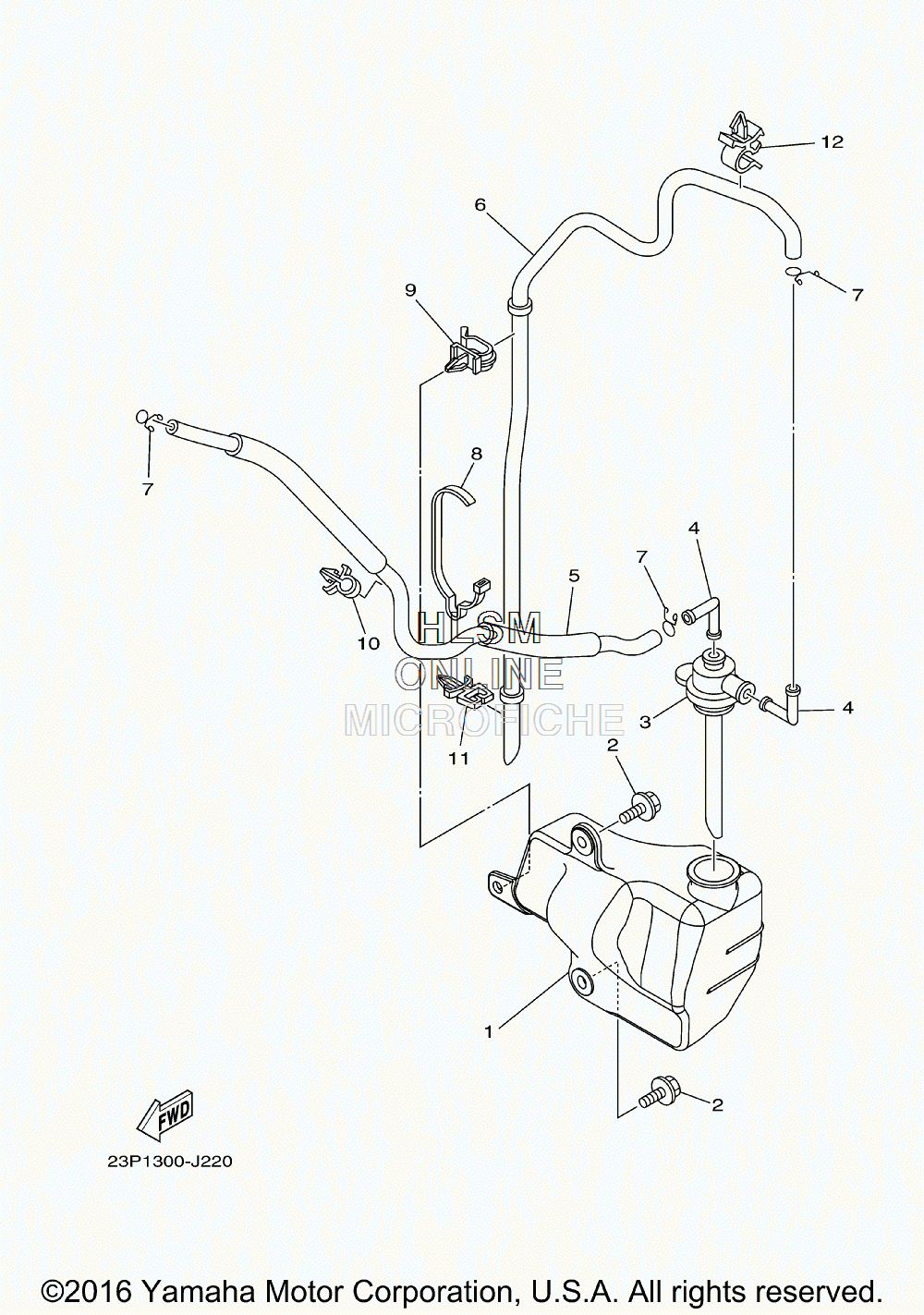

RECOVERY TANK для Yamaha SUPER TENERE - 2017 года выпуска
-
№АртикулНазвание
-
123P-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
290119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
323P-21875-00-00 CAPCAP
-
426H-21828-00-00 ELBOWELBOW
-
523P-21816-00-00 PIPE 1PIPE 1
-
623P-21877-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
790467-08075-00 CLIPCLIP
-
890464-07M40-00 CLAMPCLAMP
-
990464-14M55-00 CLAMPCLAMP
-
1090464-08008-00 CLAMPCLAMP
-
1190464-07M56-00 CLAMPCLAMP
-
1290464-09129-00 CLAMPCLAMP
