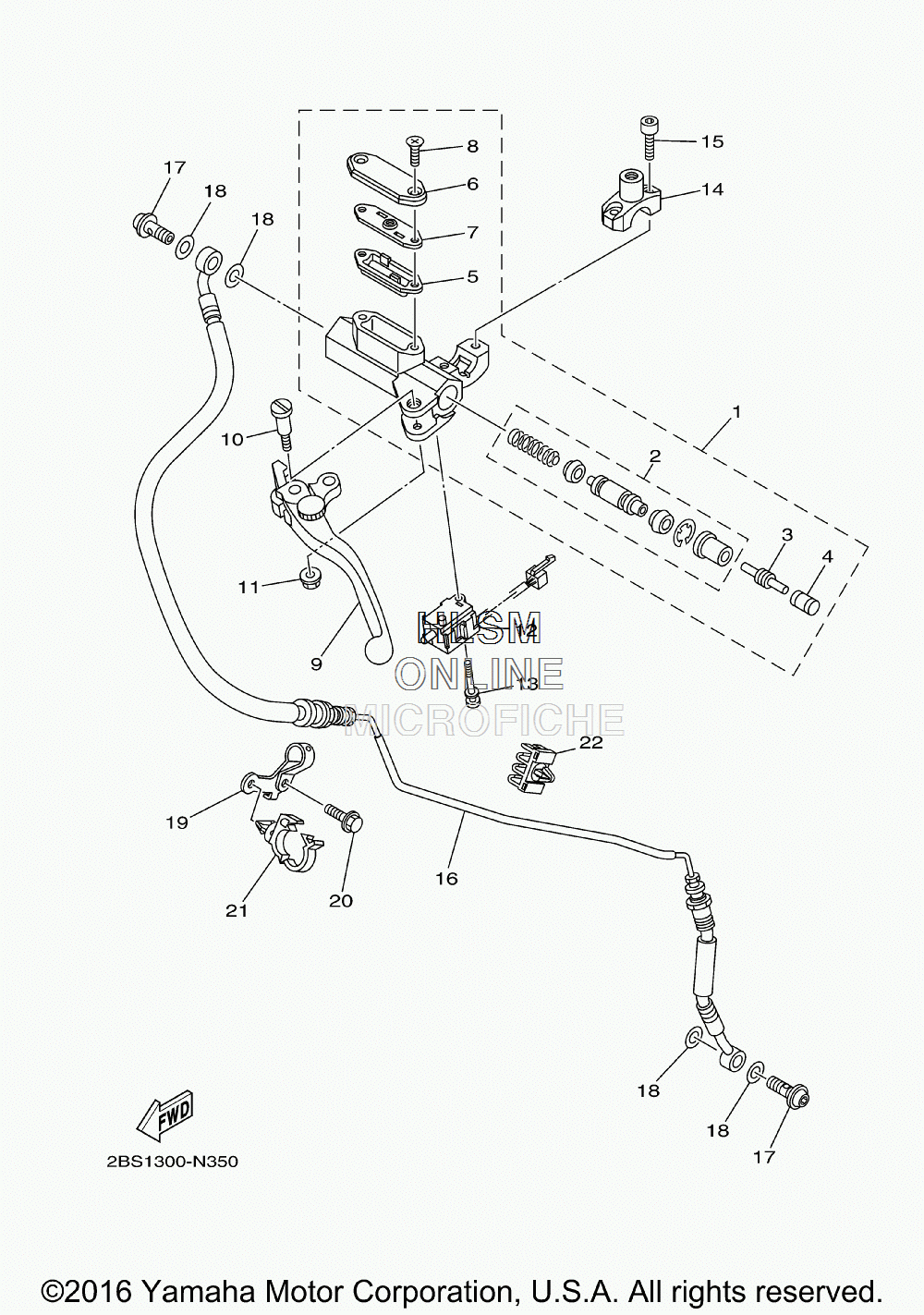

CLUTCH - MASTER CYLINDER W/ MIRROR для Yamaha SUPER TENERE - 2017 года выпуска`
-
№АртикулНазвание
-
12BS-26401-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
22BS-26402-00-00 ...CYLINDER KIT, MASTER (CLUTCH)...CYLINDER KIT, MASTER (CLUTCH)
-
35YU-26464-00-00 ...ROD, PUSH...ROD, PUSH
-
43GM-26455-00-00 ...BUSH...BUSH
-
55YU-25854-50-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65YU-25852-50-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
75YU-25855-50-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
898707-04012-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
95YU-83912-11-00 LEVER 1LEVER 1
-
1023P-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
1195607-06100-00 NUT, UNUT, U
-
121MC-82917-01-00 SWITCHSWITCH
-
1390159-04011-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
145YU-26393-10-00 HOLDERHOLDER
-
155YU-26332-00-00 BOLTBOLT
-
1623P-26470-00-00 HOSE, CLUTCHHOSE, CLUTCH
-
1790401-10172-00 BOLT, UNIONBOLT, UNION
-
1890201-10118-00 WASHER, PLATEWASHER, PLATE
-
1923P-26481-00-00 HOLDER, 2HOLDER, 2
-
2095022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2190464-20010-00 CLAMPCLAMP
-
2290464-07262-00 CLAMPCLAMP
