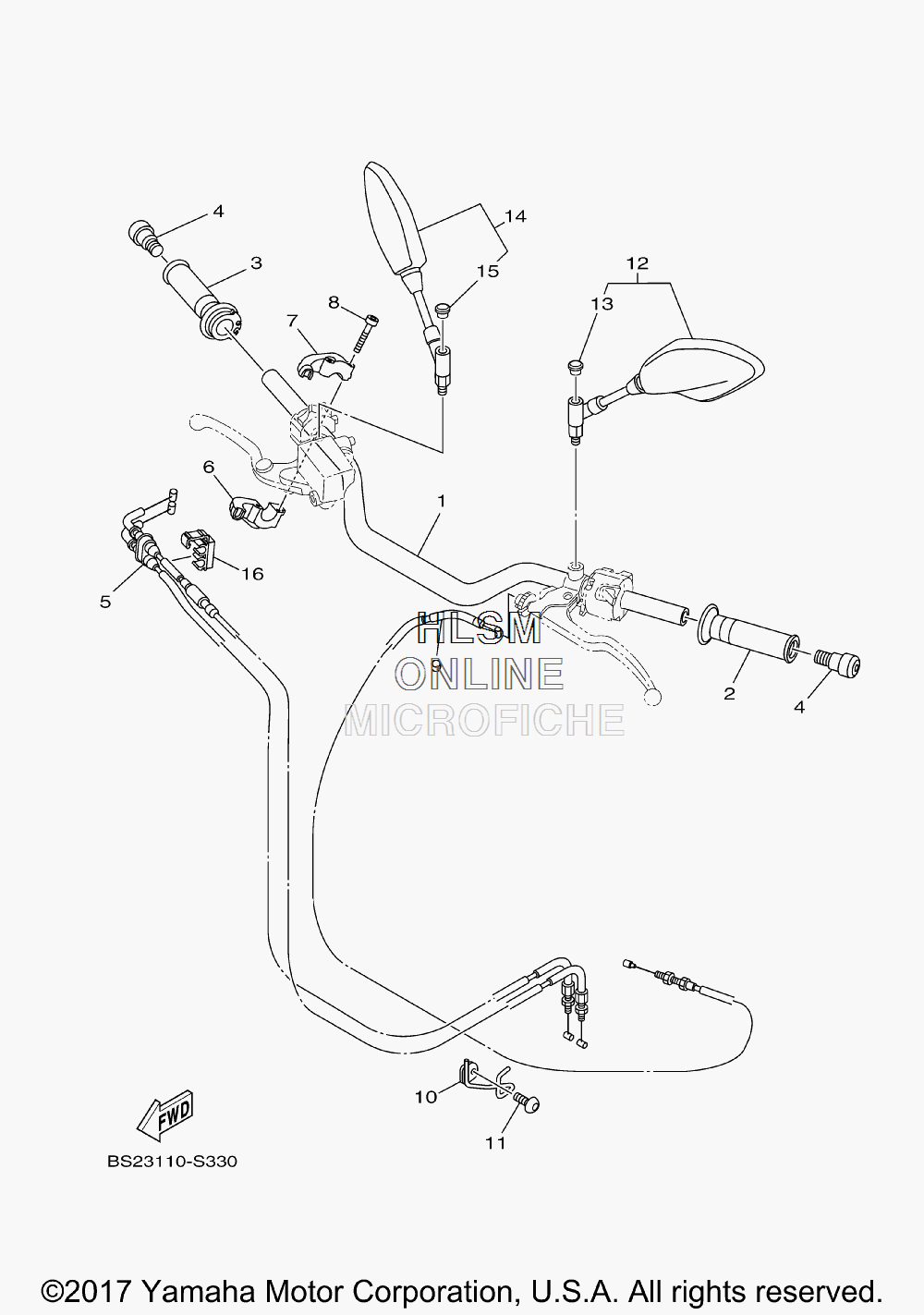

HANDLEBAR W/ CABLES для Yamaha FZ09 - 2017 года выпуска`
-
№АртикулНазвание
-
11RC-26111-00-00 HANDLEBARHANDLEBAR
-
24YR-26241-02-00 GRIP (LEFT)GRIP (LEFT)
-
34YR-26240-02-00 GRIP ASSYGRIP ASSY
-
45GJ-26246-00-00 END, GRIPEND, GRIP
-
51RC-26302-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
64KG-26281-00-00 CAP GRIPCAP GRIP
-
73XW-26282-01-00 CAP GRIPCAP GRIP
-
891317-05035-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
91RC-26335-01-00 CABLE, CLUTCHCABLE, CLUTCH
-
10BS2-23857-00-00 HOLDERHOLDER
-
1192017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
121RC-26280-00-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
1323P-26133-00-00 ...CAP...CAP
-
141RC-26290-00-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
1523P-26133-00-00 ...CAP...CAP
-
1639P-2627E-00-00 CLAMP, WIRECLAMP, WIRE
