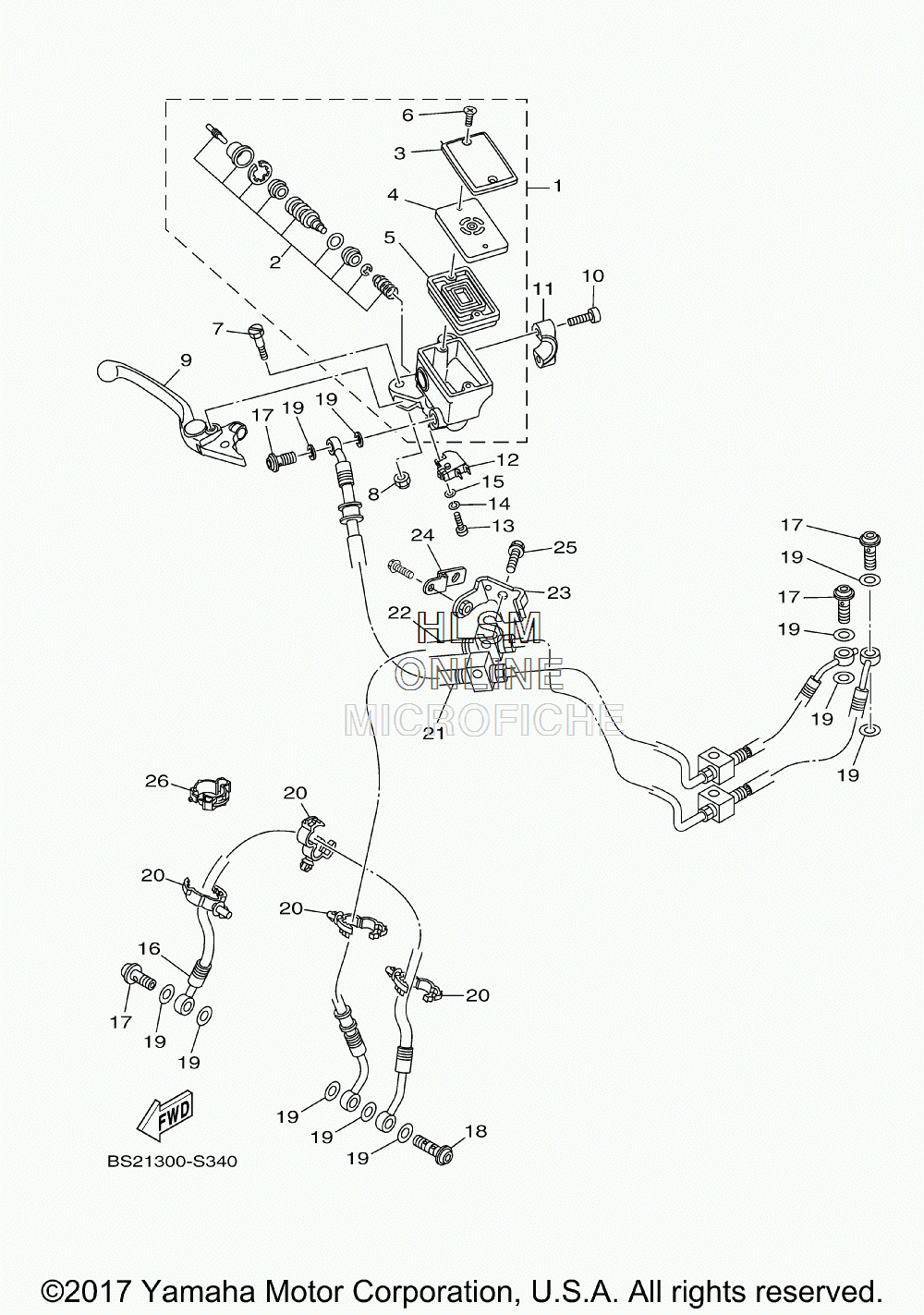

BRAKE - FRONT MASTER CYLINDER для Yamaha FZ09 - 2017 года выпуска`
-
№АртикулНазвание
-
12DR-2580A-00-00 MASTER CYLINDER SUB ASSY 2MASTER CYLINDER SUB ASSY 2
-
21MC-25807-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
35VS-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
45VS-25855-00-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
520S-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
75VS-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
895617-06100-00 NUT, S/LNUT, S/L
-
95VS-83922-00-00 LEVER 2LEVER 2
-
105VS-26332-00-00 BOLTBOLT
-
115VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
121HP-83980-01-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1398502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1492902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1592902-04600-00 WASHER, PLATEWASHER, PLATE
-
162DR-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1790401-10172-00 BOLT, UNIONBOLT, UNION
-
1890401-10042-00 BOLT, UNIONBOLT, UNION
-
1990430-10005-00 GASKETGASKET
-
2090464-18002-00 CLAMPCLAMP
-
212DR-2584A-00-00 BRAKE HOSE ASSYBRAKE HOSE ASSY
-
222DR-2584B-00-00 HOSE, BRAKEHOSE, BRAKE
-
232DR-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
24B90-2612E-00-00 BRACKETBRACKET
-
2590105-06192-00 BOLT, FLANGEBOLT, FLANGE
-
2690464-14013-00 CLAMPCLAMP
