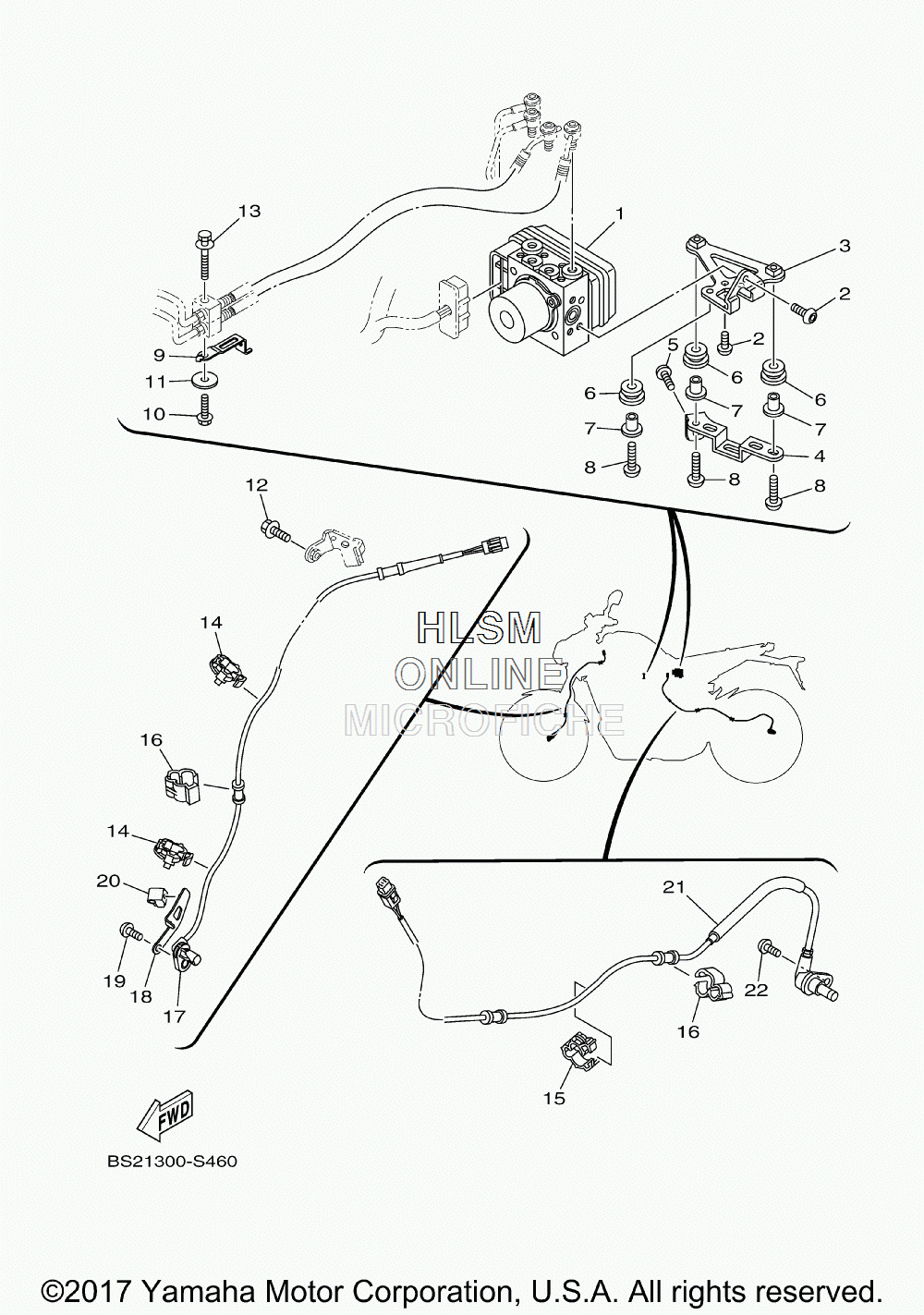

ELECTRICAL 3 для Yamaha FZ09 - 2017 года выпуска`
-
№АртикулНазвание
-
1B50-85930-09-00 HYDRAULIC UNIT ASSYHYDRAULIC UNIT ASSY
-
292012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
32DR-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
42DR-85542-00-00 BRACKETBRACKET
-
590111-06085-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
690480-13567-00 GROMMETGROMMET
-
790387-06160-00 COLLARCOLLAR
-
892012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
9BS2-85132-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
1095022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1190201-087P8-00 WASHER, PLATEWASHER, PLATE
-
1290105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
1390119-06M55-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1490464-12013-00 CLAMPCLAMP
-
1590464-14003-00 CLAMPCLAMP
-
1690464-10233-00 CLAMPCLAMP
-
17BS2-85970-00-00 WHEEL SENSOR ASSY, FRONTWHEEL SENSOR ASSY, FRONT
-
18BS2-85542-00-00 BRACKETBRACKET
-
1992017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2090464-05188-00 CLAMPCLAMP
-
212DR-85980-01-00 WHEEL SENSOR ASSY, REARWHEEL SENSOR ASSY, REAR
-
2292014-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
