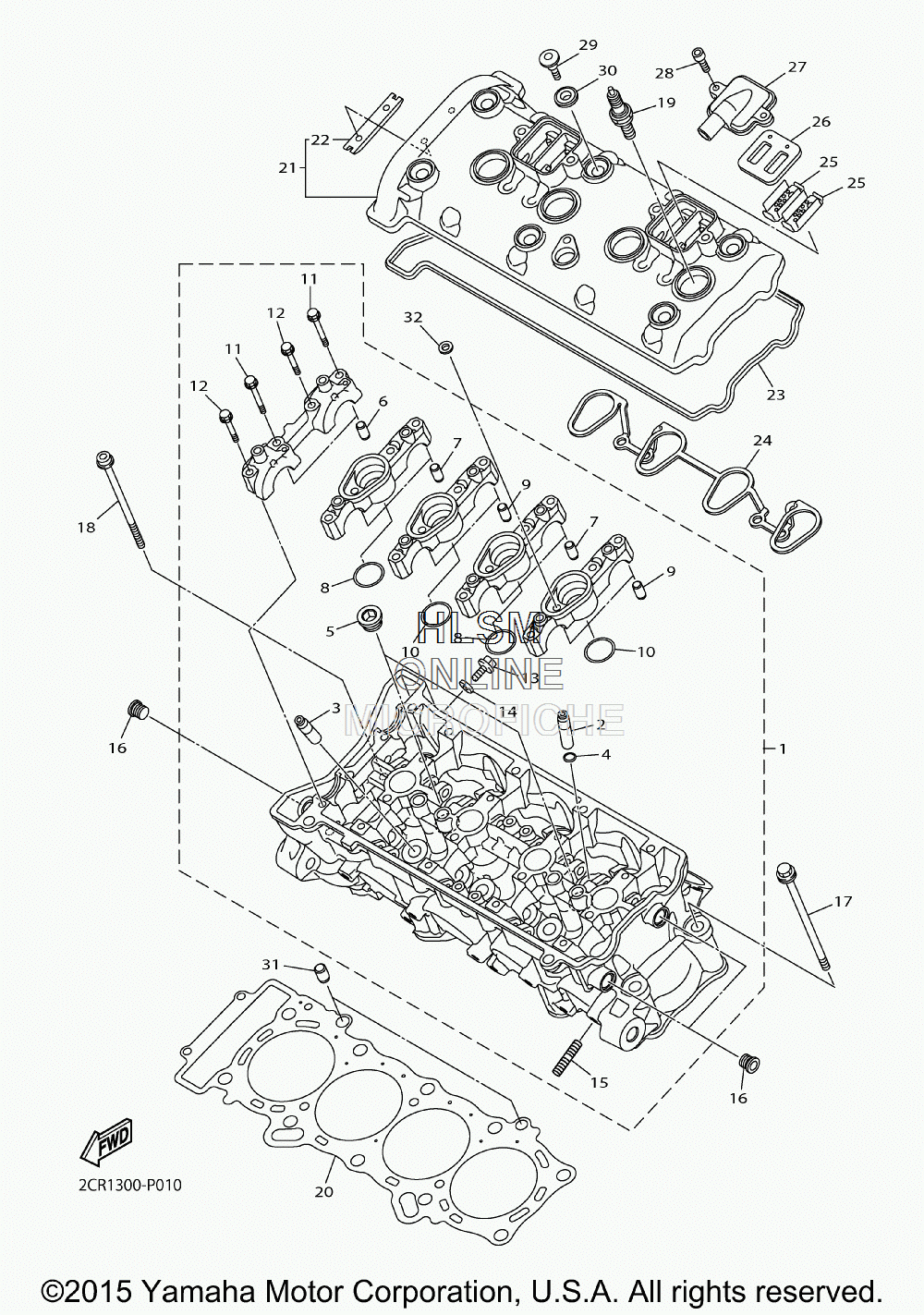

CYLINDER HEAD для Yamaha YZF-R1M - 2015 года выпуска`
-
№АртикулНазвание
-
12CR-11101-09-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
22CR-11133-10-00 ...GUIDE, VALVE 1...GUIDE, VALVE 1
-
32CR-11134-10-00 ...GUIDE, VALVE 2...GUIDE, VALVE 2
-
493440-10153-00 ...CIRCLIP...CIRCLIP
-
590340-18004-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
691808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
893210-26658-00 ...O-RING...O-RING
-
991808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
1093210-26658-00 ...O-RING...O-RING
-
1190105-06027-00 ...BOLT WASHER BASED...BOLT WASHER BASED
-
1290105-06209-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1395022-06012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1490430-06014-00 ...GASKET...GASKET
-
1595612-08615-00 ...BOLT, STUD...BOLT, STUD
-
1690340-12013-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1790119-09016-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1890110-06315-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1994701-00424-00 PLUG, SPARK (NGK LMAR9E-J)PLUG, SPARK (NGK LMAR9E-J)
-
202CR-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
212CR-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
225BE-12241-00-00 ...GUIDE, STOPPER 2...GUIDE, STOPPER 2
-
232CR-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
242CR-11194-00-00 GASKET, HEAD COVER 2GASKET, HEAD COVER 2
-
255VY-1482K-00-00 PLATEPLATE
-
265SL-14890-10-00 REED VALVE ASSYREED VALVE ASSY
-
2714B-14899-01-00 CAP, CASECAP, CASE
-
2890110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2990109-066F0-00 BOLTBOLT
-
305VY-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
3199530-10114-00 PIN, DOWELPIN, DOWEL
-
3290430-06166-00 GASKETGASKET
