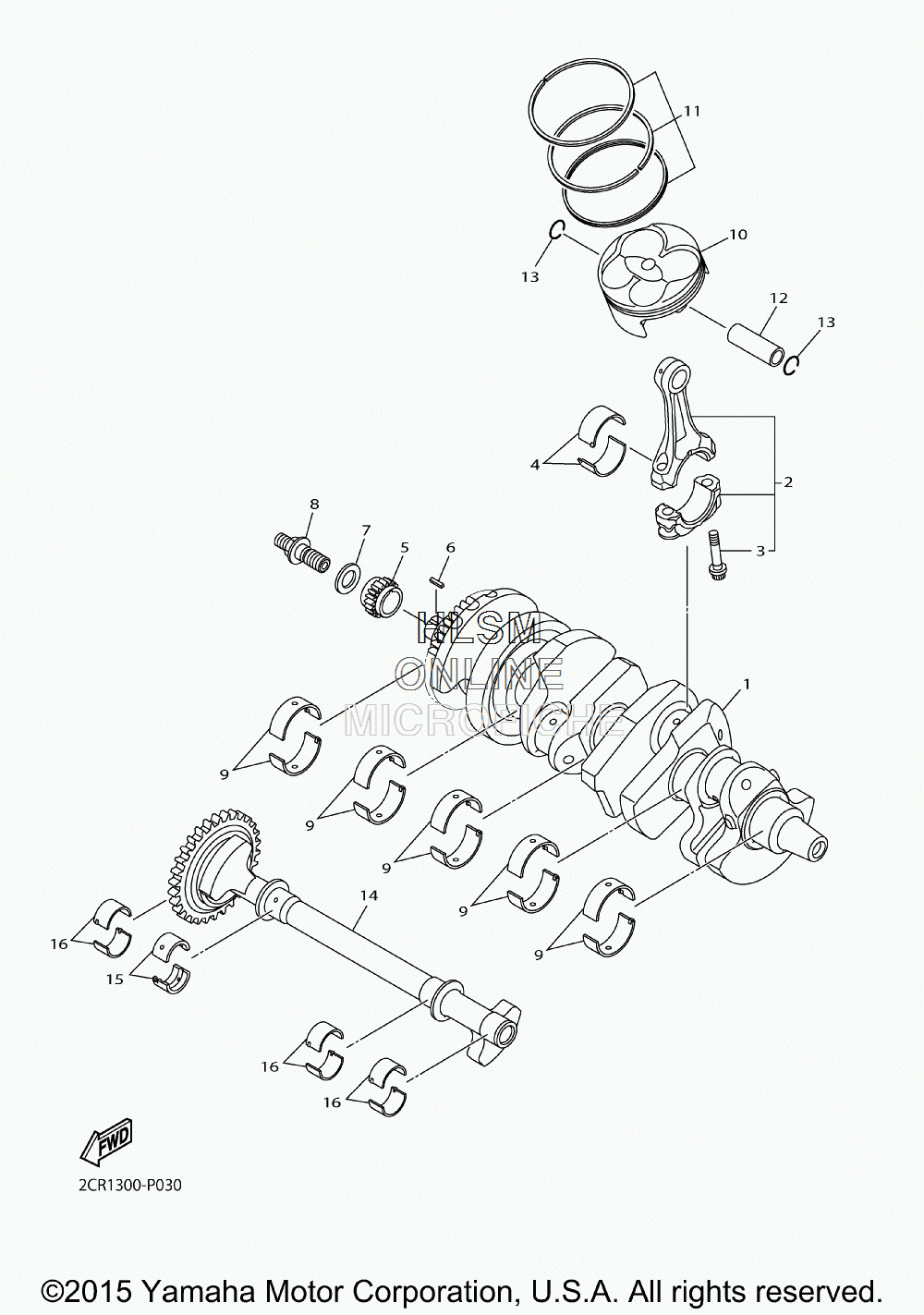

CRANKSHAFT - PISTON для Yamaha YZF-R1M - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2CR-11400-00-00 CRANKSHAFT ASSY
    CRANKSHAFT ASSY
  • 2
    2CR-11650-00-00 CONNECTING ROD ASSY
    CONNECTING ROD ASSY
  • 3
    2CR-11654-00-00 ...BOLT, CONNECTING ROD
    ...BOLT, CONNECTING ROD
  • 4
    2CR-11656-40-00 PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)
    PLANE BEARING, CONNECTING ROD (OPT) (YELLOW)
  • 4
    2CR-11656-50-00 PLANE BEARING, CONNECTING ROD (OPT) (PINK)
    PLANE BEARING, CONNECTING ROD (OPT) (PINK)
  • 4
    2CR-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
    PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
  • 4
    2CR-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
    PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
  • 4
    2CR-11656-00-00 PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
    PLANE BEARING, CONNECTING ROD (OPT) (BLUE)
  • 4
    2CR-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
    PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
  • 5
    2CR-11549-00-00 SPROCKET, CAM CHAIN
    SPROCKET, CAM CHAIN
  • 6
    90282-03012-00 KEY, STRAIGHT
    KEY, STRAIGHT
  • 7
    90201-13021-00 WASHER, PLATE
    WASHER, PLATE
  • 8
    2CR-12157-00-00 BOLT
    BOLT
  • 9
    2CR-11416-00-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BLUE)
  • 9
    2CR-11416-10-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BLACK)
  • 9
    2CR-11416-20-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (BROWN)
  • 9
    2CR-11416-30-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (GREEN)
  • 9
    2CR-11416-40-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (YELLOW)
  • 9
    2CR-11416-50-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (PINK)
  • 9
    2CR-11416-60-00 PLANE BEARING, CRANKSHAFT 1 (OPT) (RED)
    PLANE BEARING, CRANKSHAFT 1 (OPT) (RED)
  • 10
    2CR-11631-00-00 PISTON (STD)
    PISTON (STD)
  • 11
    2CR-11603-00-00 PISTON RING SET (STD)
    PISTON RING SET (STD)
  • 12
    2CR-11633-00-00 PIN, PISTON
    PIN, PISTON
  • 13
    93450-18169-00 CIRCLIP
    CIRCLIP
  • 14
    2CR-11500-00-00 BALANCER ASSY
    BALANCER ASSY
  • 15
    2CR-11413-30-00 METAL, BALANCE WEIGHT (OPT) (GREEN)
    METAL, BALANCE WEIGHT (OPT) (GREEN)
  • 15
    2CR-11413-A0-00 METAL, BALANCE WEIGHT (OPT) (WHITE)
    METAL, BALANCE WEIGHT (OPT) (WHITE)
  • 15
    2CR-11413-00-00 METAL, BALANCE WEIGHT (OPT) (BLUE)
    METAL, BALANCE WEIGHT (OPT) (BLUE)
  • 15
    2CR-11413-10-00 METAL, BALANCE WEIGHT (OPT) (BLACK)
    METAL, BALANCE WEIGHT (OPT) (BLACK)
  • 15
    2CR-11413-20-00 METAL, BALANCE WEIGHT (OPT) (BROWN)
    METAL, BALANCE WEIGHT (OPT) (BROWN)
  • 15
    2CR-11413-40-00 METAL, BALANCE WEIGHT (OPT) (YELLOW)
    METAL, BALANCE WEIGHT (OPT) (YELLOW)
  • 15
    2CR-11413-50-00 METAL, BALANCE WEIGHT (OPT) (PINK)
    METAL, BALANCE WEIGHT (OPT) (PINK)
  • 16
    2CR-11423-20-00 METAL, BALANCE WEIGHT 2 (OPT) (BROWN)
    METAL, BALANCE WEIGHT 2 (OPT) (BROWN)
  • 16
    2CR-11423-10-00 METAL, BALANCE WEIGHT 2 (OPT) (BLACK)
    METAL, BALANCE WEIGHT 2 (OPT) (BLACK)
  • 16
    2CR-11423-50-00 METAL, BALANCE WEIGHT 2 (OPT) (PINK)
    METAL, BALANCE WEIGHT 2 (OPT) (PINK)
  • 16
    2CR-11423-40-00 METAL, BALANCE WEIGHT 2 (OPT) (YELLOW)
    METAL, BALANCE WEIGHT 2 (OPT) (YELLOW)
  • 16
    2CR-11423-30-00 METAL, BALANCE WEIGHT 2 (OPT) (GREEN)
    METAL, BALANCE WEIGHT 2 (OPT) (GREEN)
  • 16
    2CR-11423-A0-00 METAL, BALANCE WEIGHT 2 (OPT) (WHITE)
    METAL, BALANCE WEIGHT 2 (OPT) (WHITE)
  • 16
    2CR-11423-00-00 METAL, BALANCE WEIGHT 2 (OPT) (BLUE)
    METAL, BALANCE WEIGHT 2 (OPT) (BLUE)
