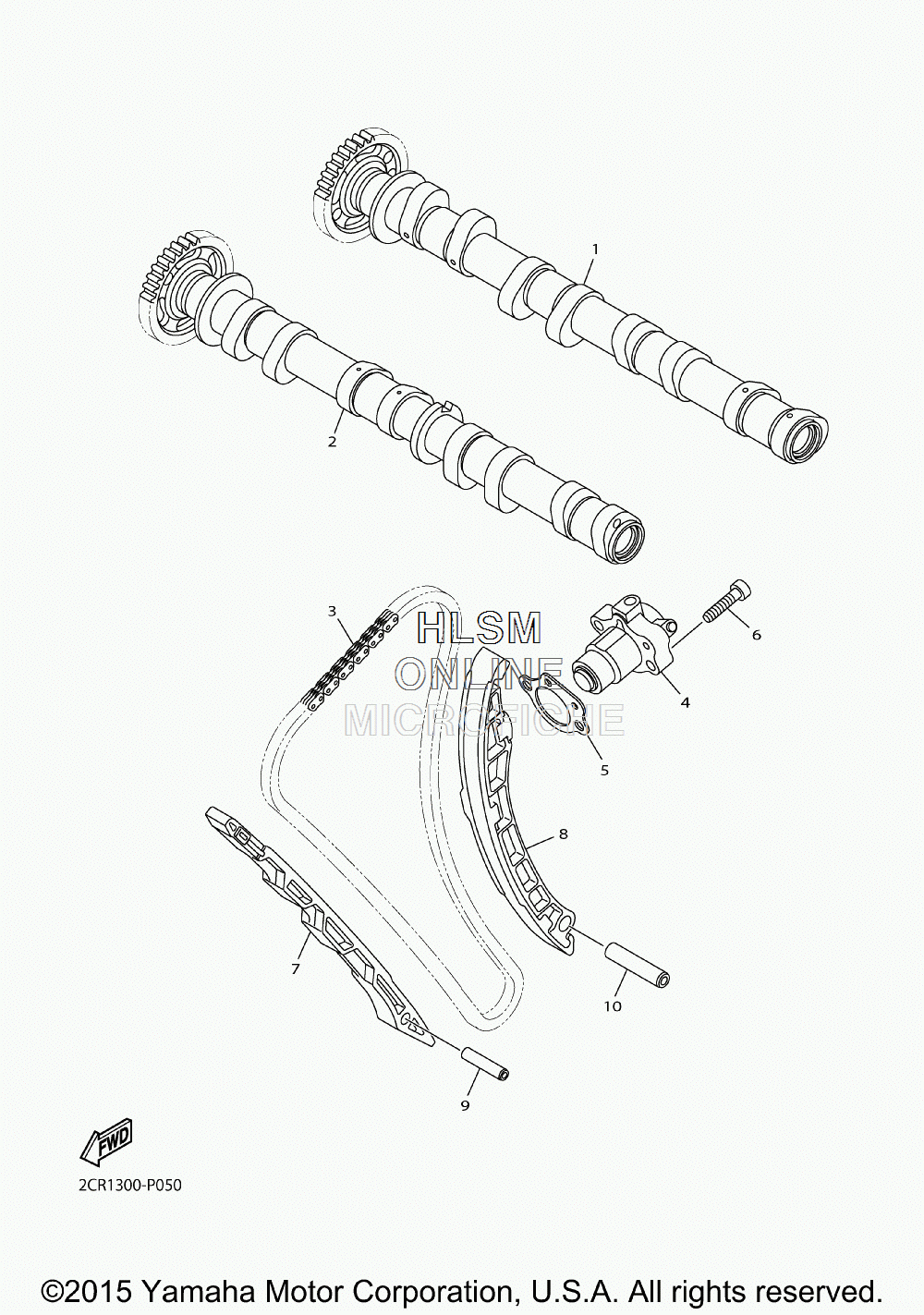

CAMSHAFT W/ CHAIN для Yamaha YZF-R1M - 2015 года выпуска`
-
№АртикулНазвание
-
12CR-12170-00-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
22CR-12180-00-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
394591-75128-00 CHAINCHAIN
-
42CR-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
514B-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
690110-06178-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
72CR-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
82CR-12250-00-00 CHAIN DAMPER ASSYCHAIN DAMPER ASSY
-
92CR-12247-00-00 SHAFT, TENSIONERSHAFT, TENSIONER
-
102CR-12257-00-00 SHAFT 2SHAFT 2
