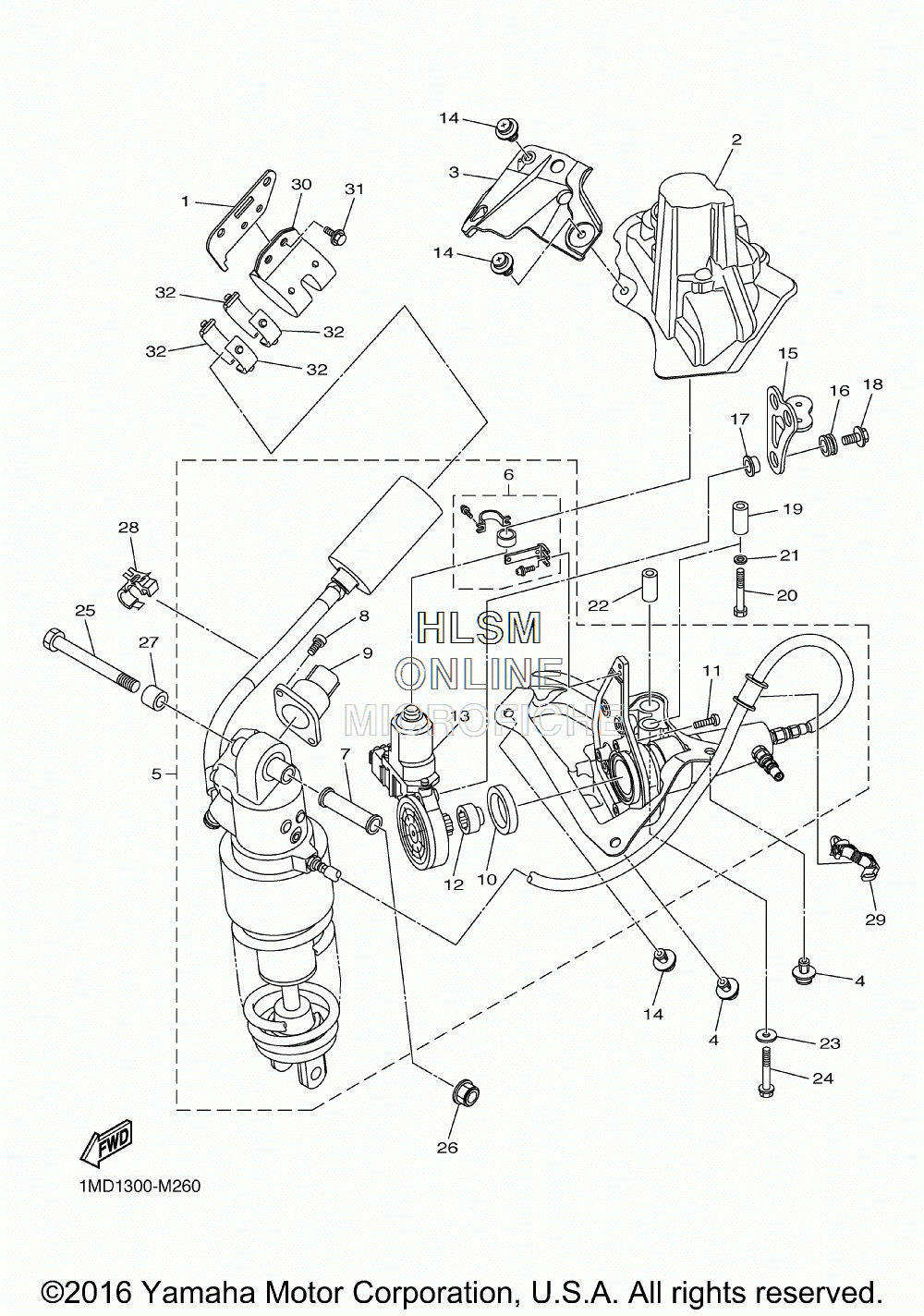

SUSPENSION - REAR SHOCK ABSORBER для Yamaha FJR1300 ES [FJR13ESF] - 2015 года выпуска`
-
№АртикулНазвание
-
11MD-27333-00-00 BRACKETBRACKET
-
21MD-2117F-00-00 COVERCOVER
-
31MD-2117N-00-00 COVER 3COVER 3
-
490269-07076-00 RIVET SPEC'L SHAPERIVET SPEC'L SHAPE
-
51MD-22210-11-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
61MD-2221A-00-00 ...BOLT STAY SET...BOLT STAY SET
-
71MD-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
81MD-22242-00-00 ...BOLT 2...BOLT 2
-
91MD-85801-00-00 ...STEPPER MOTOR...STEPPER MOTOR
-
101MD-22215-00-00 ...RING, COVER...RING, COVER
-
111MD-22241-00-00 ...BOLT 1...BOLT 1
-
121MD-2222A-00-00 ...COLLAR...COLLAR
-
131MD-86231-00-00 ...MOTOR COMP....MOTOR COMP.
-
1490269-07076-00 RIVET SPEC'L SHAPERIVET SPEC'L SHAPE
-
151MD-27332-00-00 BRACKETBRACKET
-
1690480-14003-00 GROMMETGROMMET
-
1790387-06125-00 COLLARCOLLAR
-
1890119-06147-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1990387-063W4-00 COLLARCOLLAR
-
2097027-06045-00 BOLT, HEXAGONBOLT, HEXAGON
-
2192907-06600-00 WASHER, PLATEWASHER, PLATE
-
2290387-063W4-00 COLLARCOLLAR
-
2390201-06085-00 WASHER, PLATEWASHER, PLATE
-
2495822-06045-00 BOLT, FLANGEBOLT, FLANGE
-
2590101-12044-00 BOLTBOLT
-
2695602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2790387-12028-00 COLLARCOLLAR
-
2890464-15192-00 CLAMPCLAMP
-
2990464-14012-00 CLAMPCLAMP
-
301MD-22262-00-00 HOLDER, SUB TANKHOLDER, SUB TANK
-
3195827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
3224X-22261-00-00 DAMPER, SUB TANKDAMPER, SUB TANK
