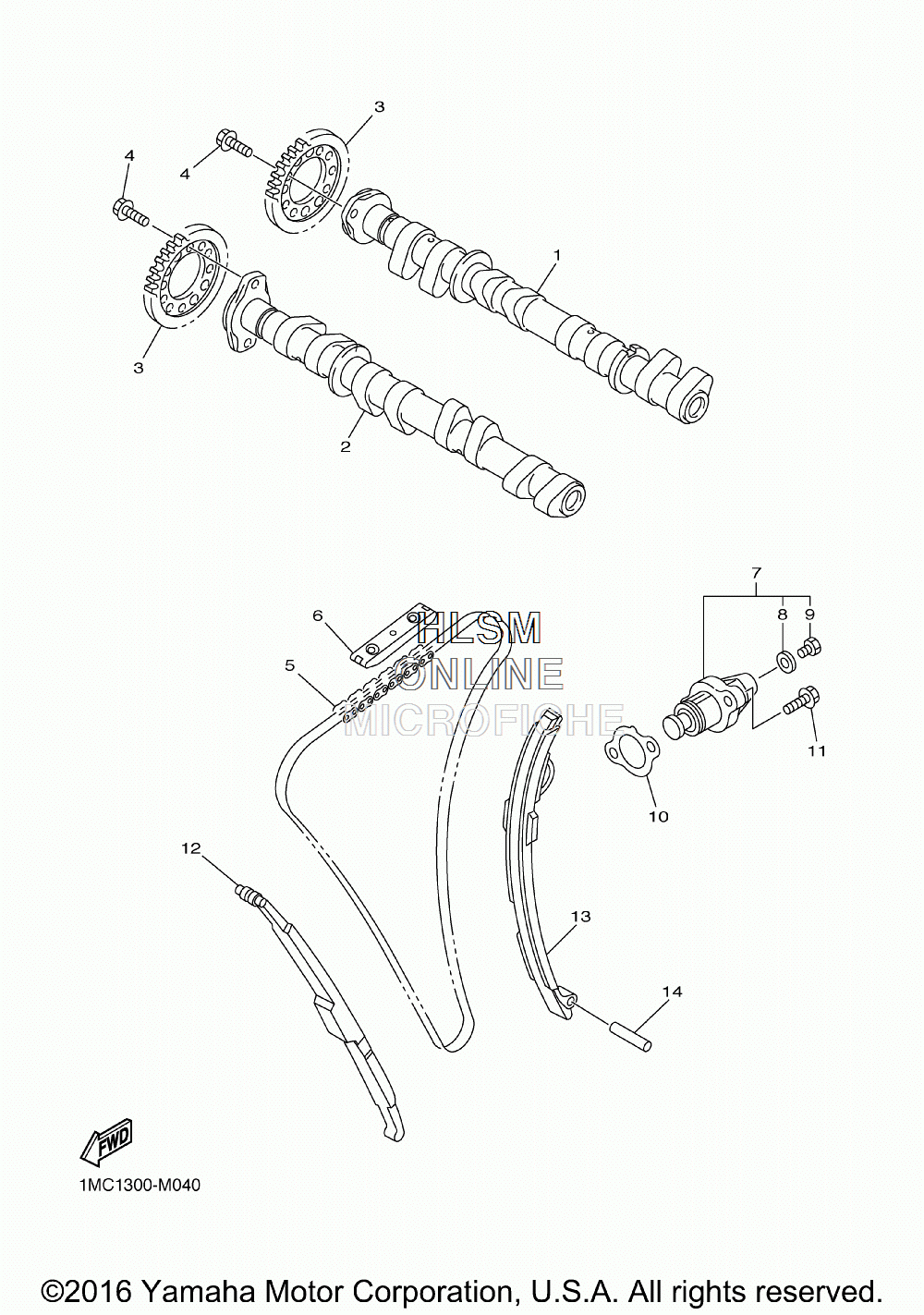

CAMSHAFT W/ CHAIN для Yamaha FJR1300 ES [FJR13ESF] - 2015 года выпуска`
-
№АртикулНазвание
-
11MC-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
21MC-12181-00-00 CAMSHAFT 2CAMSHAFT 2
-
35JW-12176-10-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
490105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
594591-73136-00 CHAINCHAIN
-
65BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
71MC-12210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
85SL-12214-00-00 ...GASKET...GASKET
-
95EL-12228-00-00 ...BOLT...BOLT
-
105JW-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1195022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
125JW-12251-00-00 DAMPER, CHAIN 1DAMPER, CHAIN 1
-
135JW-12252-00-00 DAMPER, CHAIN 2DAMPER, CHAIN 2
-
1493607-44002-00 PIN, DOWELPIN, DOWEL
